Drive Belt (3.0L SEBRING Coupe & Stratus Coupe)

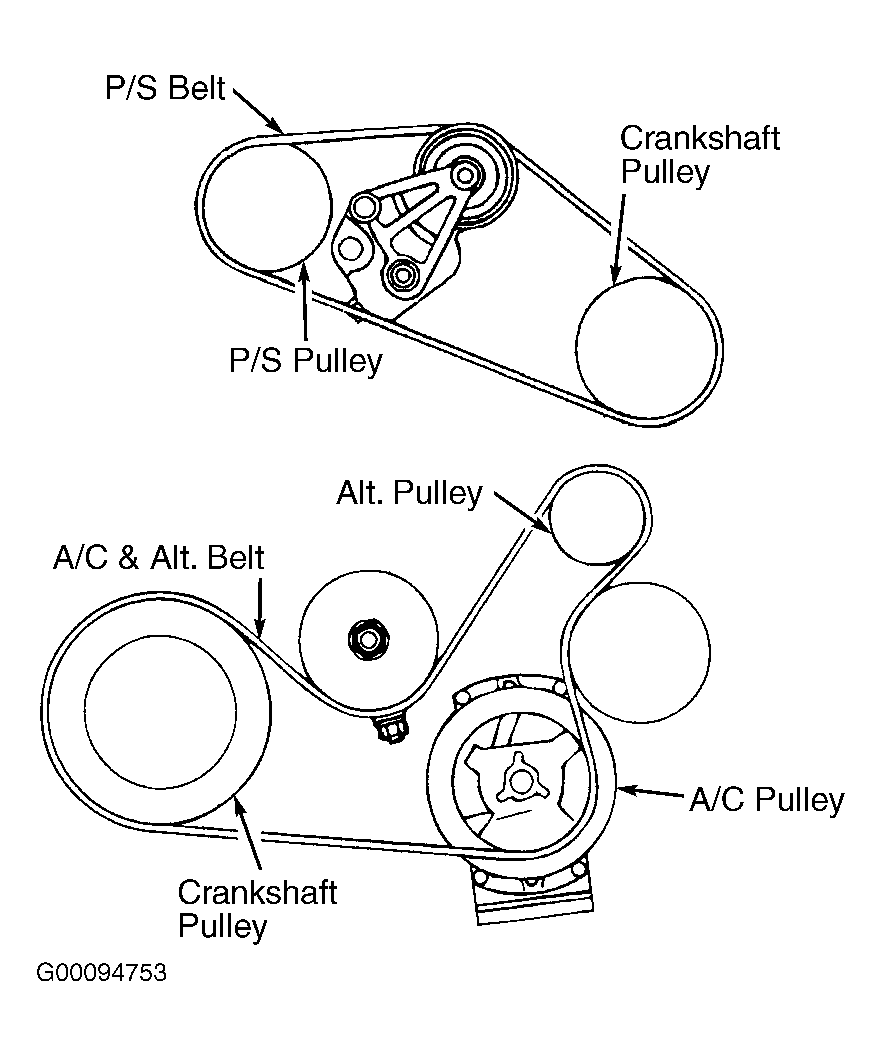

Fig 1: Identifying Drive Belt (3.0L Sebring Coupe & Stratus Coupe)

G00094753

Courtesy of CHRYSLER CORP.
