Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-90 Connector & Ground Locations >> Connector and Ground Index >> Part 7 of 8

Part 7 of 8

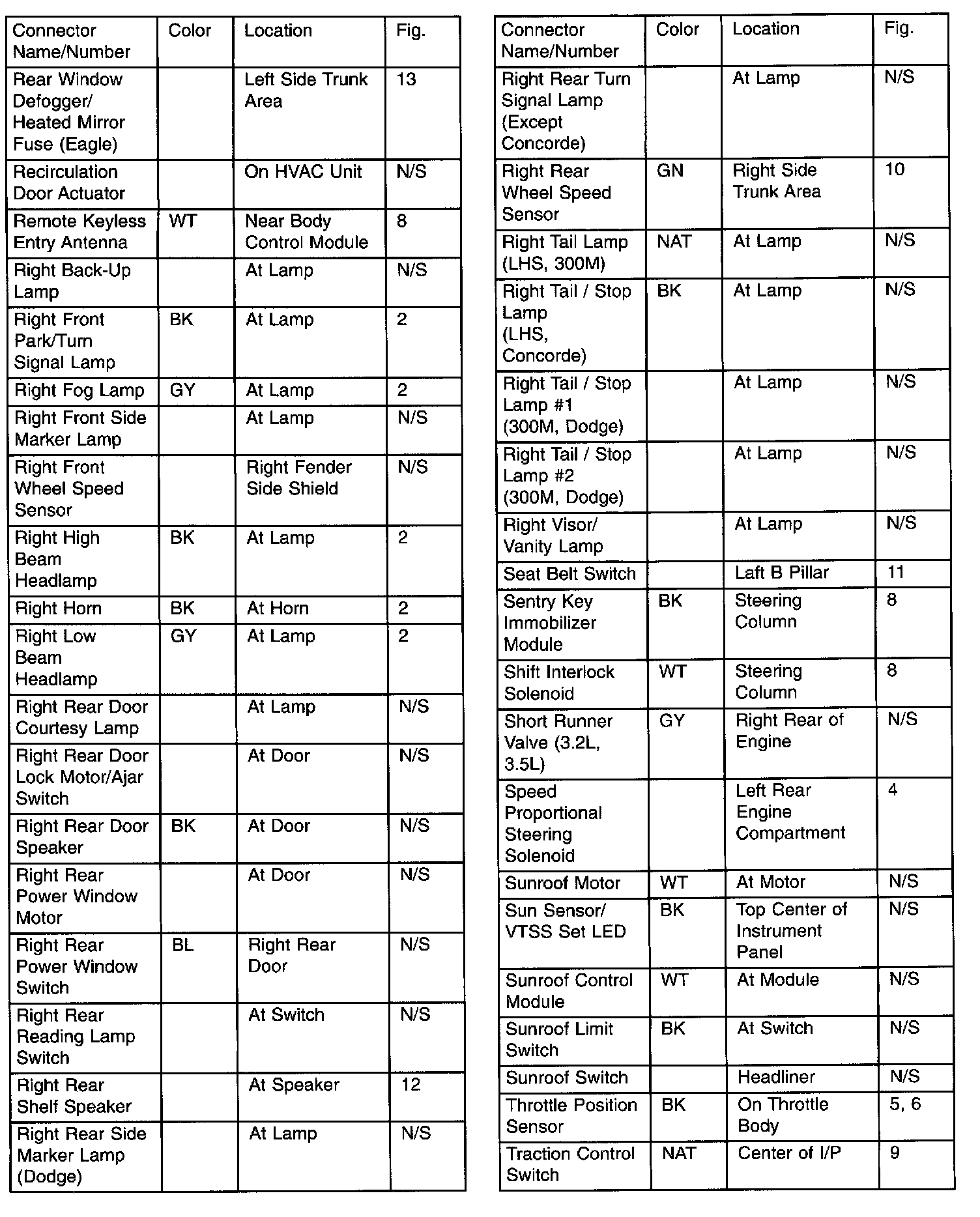

Connector/Ground Locations Component Index (Part 7 Of 8):
