Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-63 (Power Seats) >> Sheet 8W-63-8

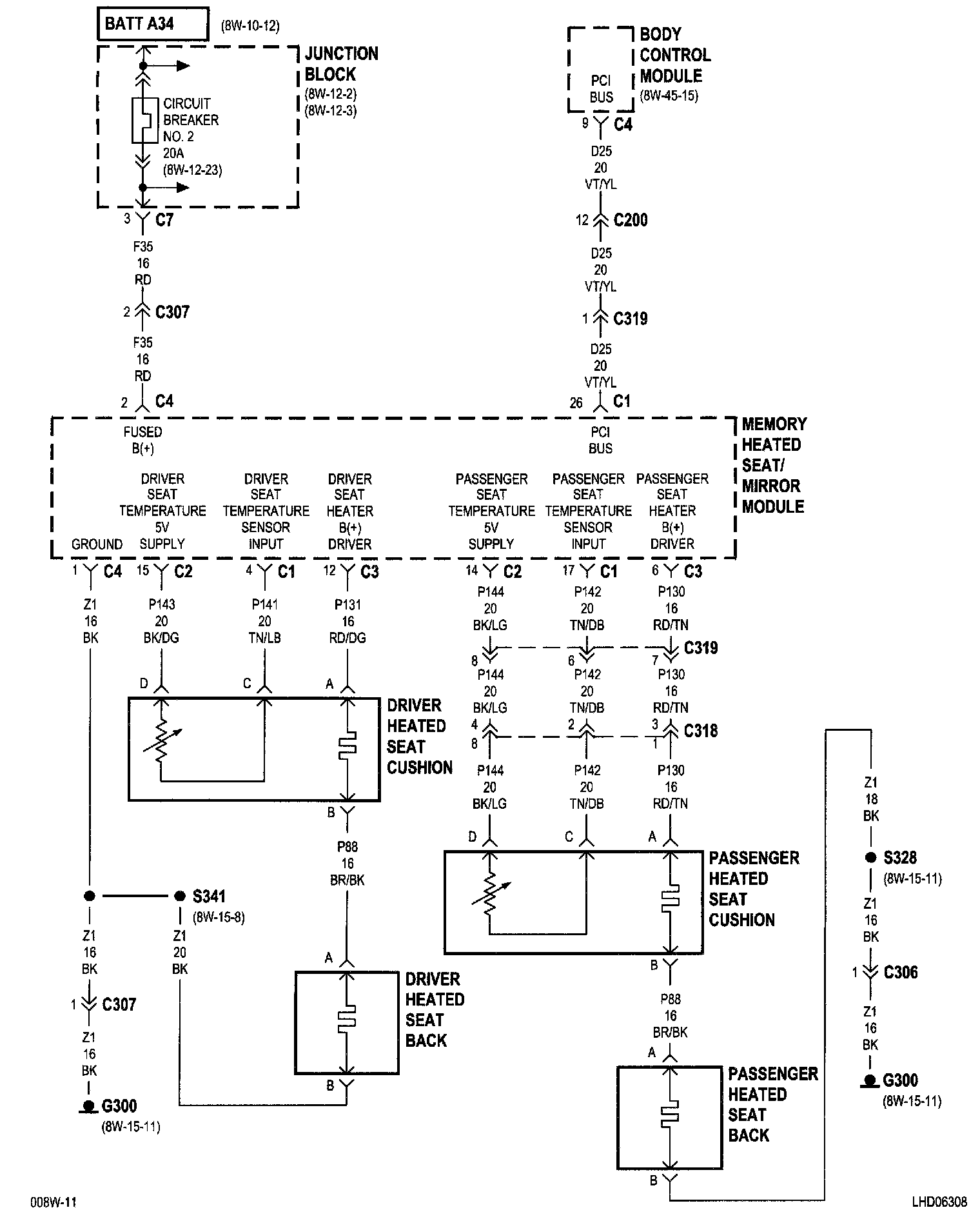

Sheet 8W-63-8

8W-63-8 (Memory/Heated):
