Horn Switch: Testing and Inspection

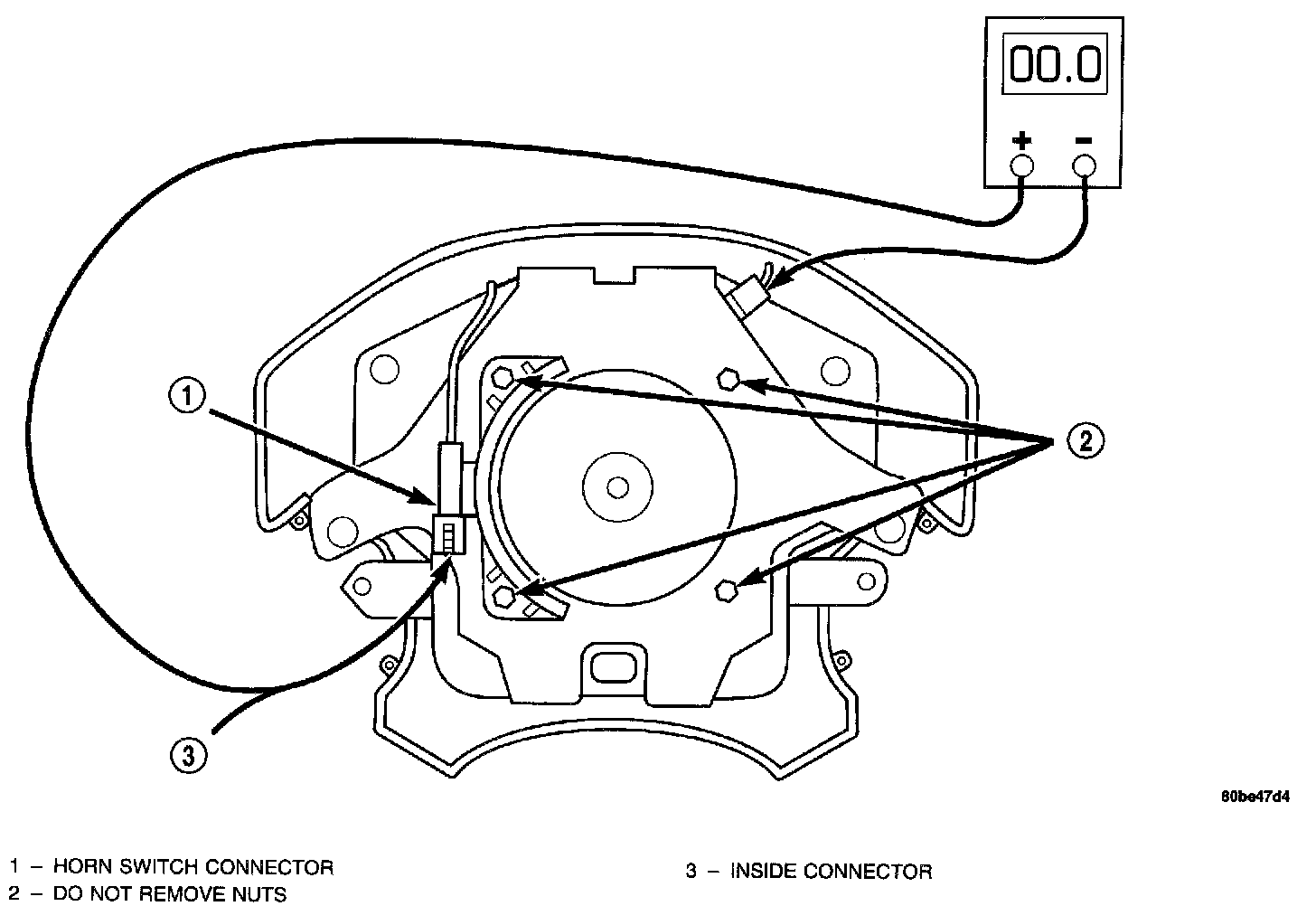

Horn Switch Test Locations:




1. Using ohmmeter, connect one lead to ground wire and the other lead to the positive wire.
2. Depress horn switch, should have continuity repeat for other switch. If no continuity replace switches.
