Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Group 8W-62 (Power Mirrors)
>>
Sheet 8W-62-5
Sheet 8W-62-5

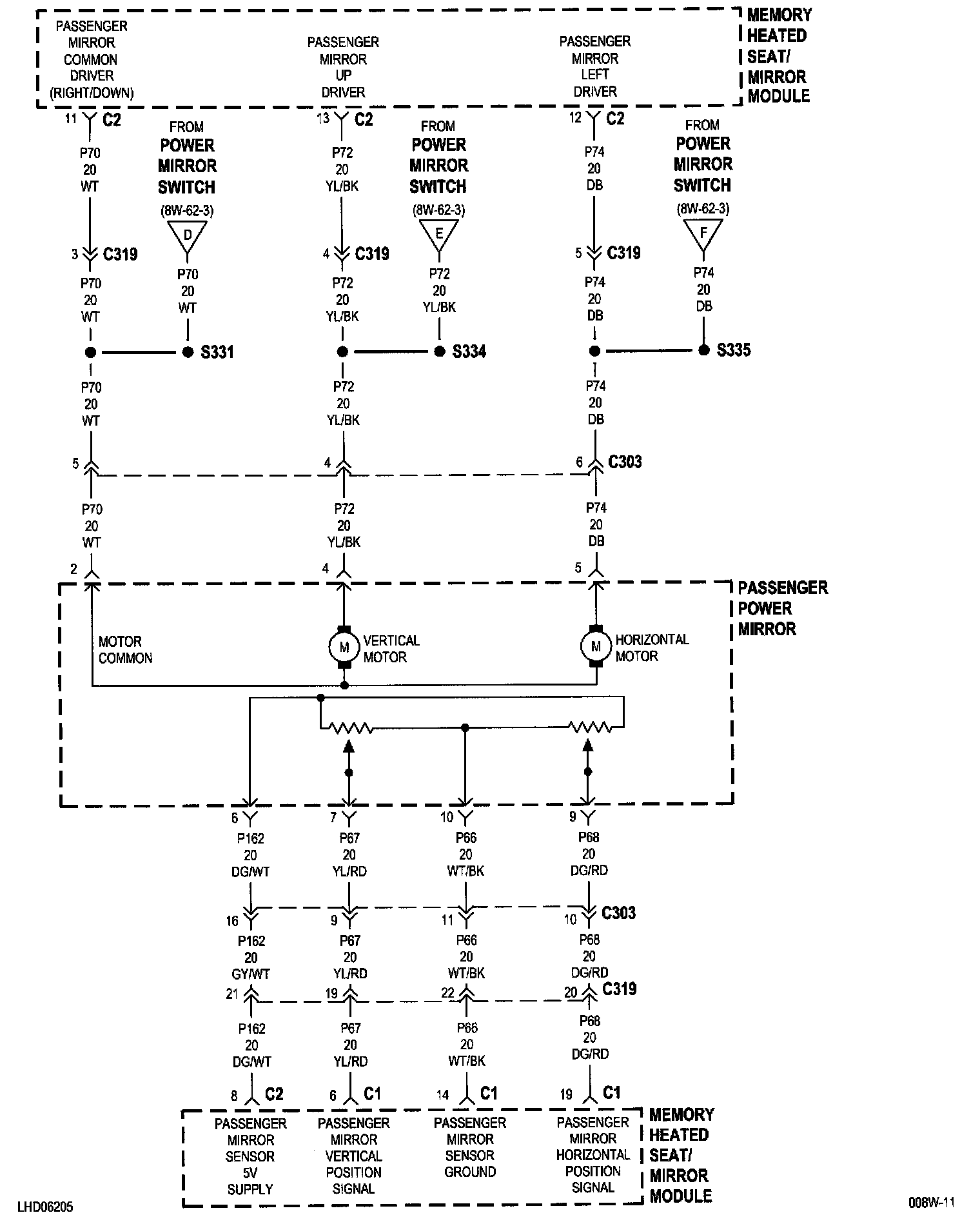

8W-62-5 (Memory/Heated):
