Without ABS

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Plymouth Breeze, 1999 Dodge Stratus, 1999 Chrysler Cirrus, 1998 Plymouth Breeze, and 1998 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.

Rear wheel lock-up or skidding indicates faulty proportioning valve. To identify proportioning valve, see bar code label. Road test vehicle to determine which rear brake system is faulty.
Disconnect brakeline from suspect proportioning valve. See Fig 1 . Remove proportioning valve from rear brakeline. Install Pressure Test Fitting (8187) on rear brake tube. Install proportioning valve into pressure test fitting. Install Pressure Test Fitting (8187-2) into proportioning valve. Tighten tube nuts to specification. See TORQUE SPECIFICATIONS table. Connect brakeline to pressure test fitting. Install Pressure Gauge (C-4007-A) into each pressure test fitting.
Bleed hoses and gauges. Have an assistant depress and hold pressure on brake pedal. Note and record pressure gauge readings. If inlet or outlet pressure readings DO NOT agree with specifications, replace proportioning valve. See BRAKE PRESSURE table.

BRAKE PRESSURE

Inlet Pressure

Split Point/Slope ⁽¹⁾

Rear Brake Outlet Pressure

1000 psi

500 psi/.43

600-700 psi

⁽¹⁾	Split point is when proportioning valve changes rear brake pressure to prevent skidding. Slope is the pressure differential (percentage ratio) between front and rear brakes.

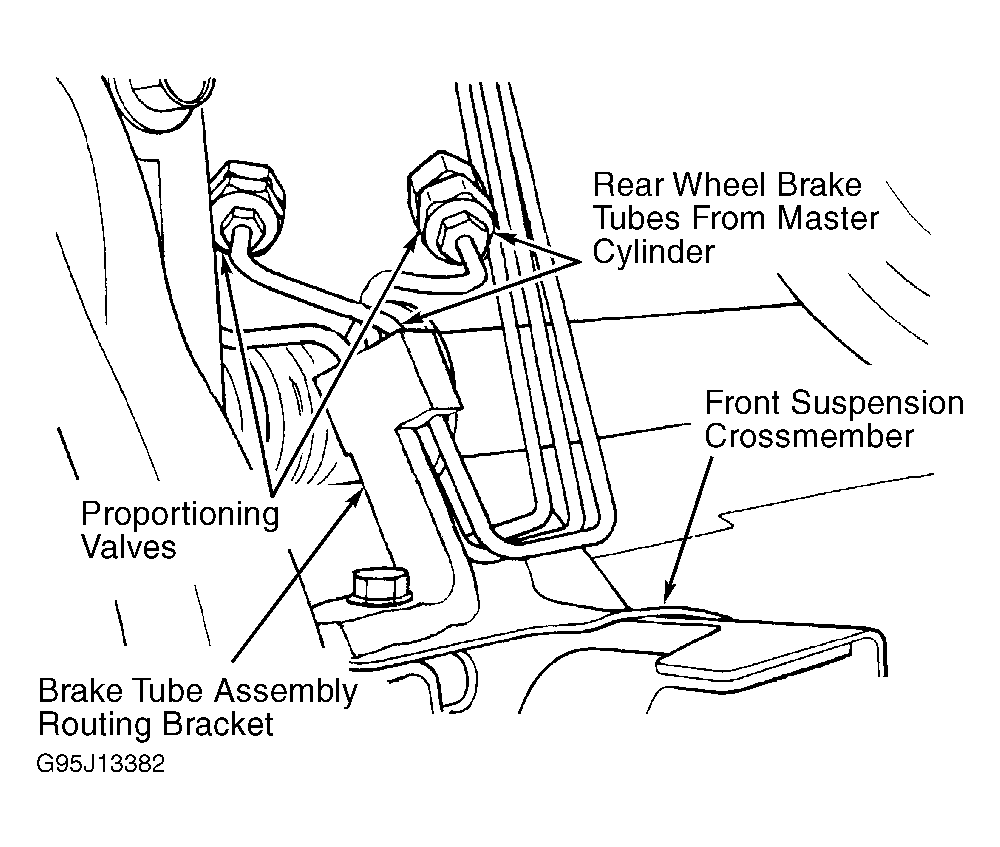

Fig 1: Locating Brake Proportioning Valves (Without ABS)

Courtesy of CHRYSLER CORP.
