Parking Brake Cables
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1999 Plymouth Breeze, 1999 Dodge Stratus, 1999 Chrysler Cirrus, 1998 Plymouth Breeze, and 1998 Dodge Stratus. However, it is still accessible from the selected car via links, so may be relevant.
- Remove shifter boot or PRNDL plate from center console. Remove 2 front center console-to-forward console screws. Raise parking brake lever sufficiently to provide clearance for console removal. Remove center console. Lower parking brake lever.

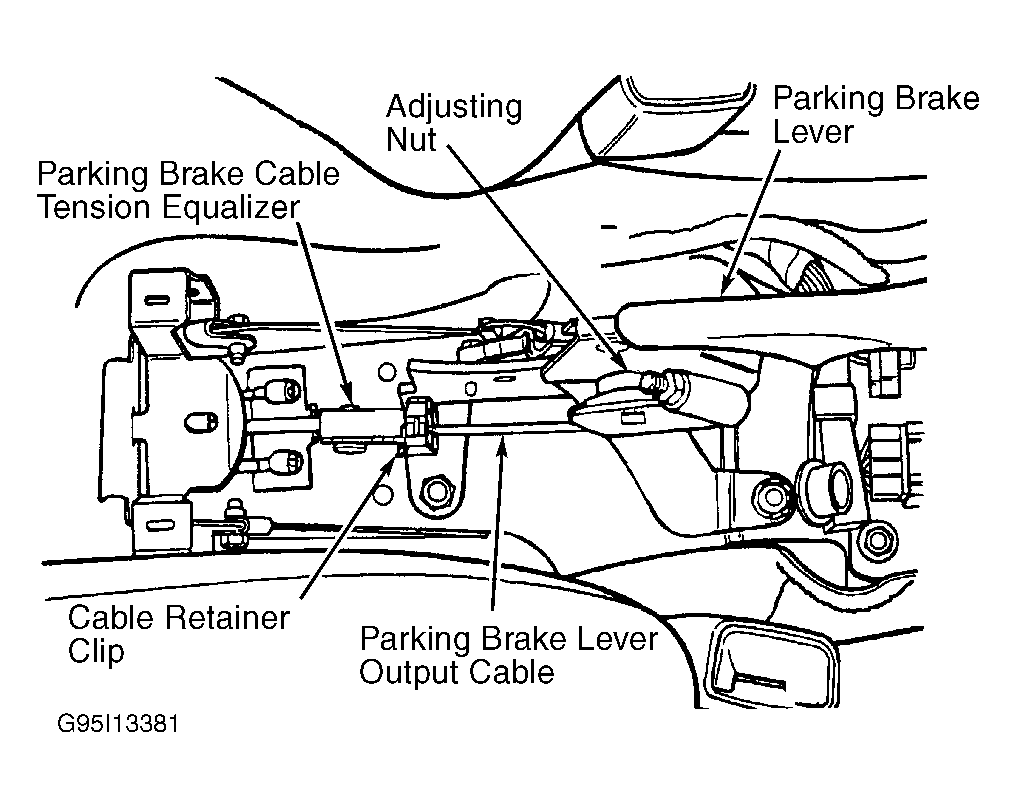

- Loosen parking brake lever output cable adjusting nut. Using screwdriver, remove parking brake lever output cable retainer from cable and parking brake cable tension equalizer (discard retainer). See Fig 1 . Remove tension equalizer and discard.
- Install NEW tension equalizer and cable retainer. Ensure cable retainer is closed and securely latched. Ensure parking brake lever is fully released. For 1998 models and 1999 rear drum brakes, tighten output cable adjusting nut until 0.5" (12 mm) of thread is past top edge of adjusting nut. For 1999 rear disc brakes, tighten output cable adjusting nut until 1.0" (26 mm) of thread is past top edge of adjusting nut.
- Fully apply parking brake lever (21 clicks on 1998 models, 22 on 1999 models) one time, then release. Ensure rear wheels rotate freely without dragging. Ensure parking brake lever action is firm with a maximum of 21 clicks for all models. Install center console. Install shifter boot or PRNDL plate.
