Removal & Installation
- Rear wheel lock-up or skidding indicates faulty proportioning valve. See PROPORTIONING VALVE IDENTIFICATION table. Road test vehicle to determine which rear brake system is faulty.

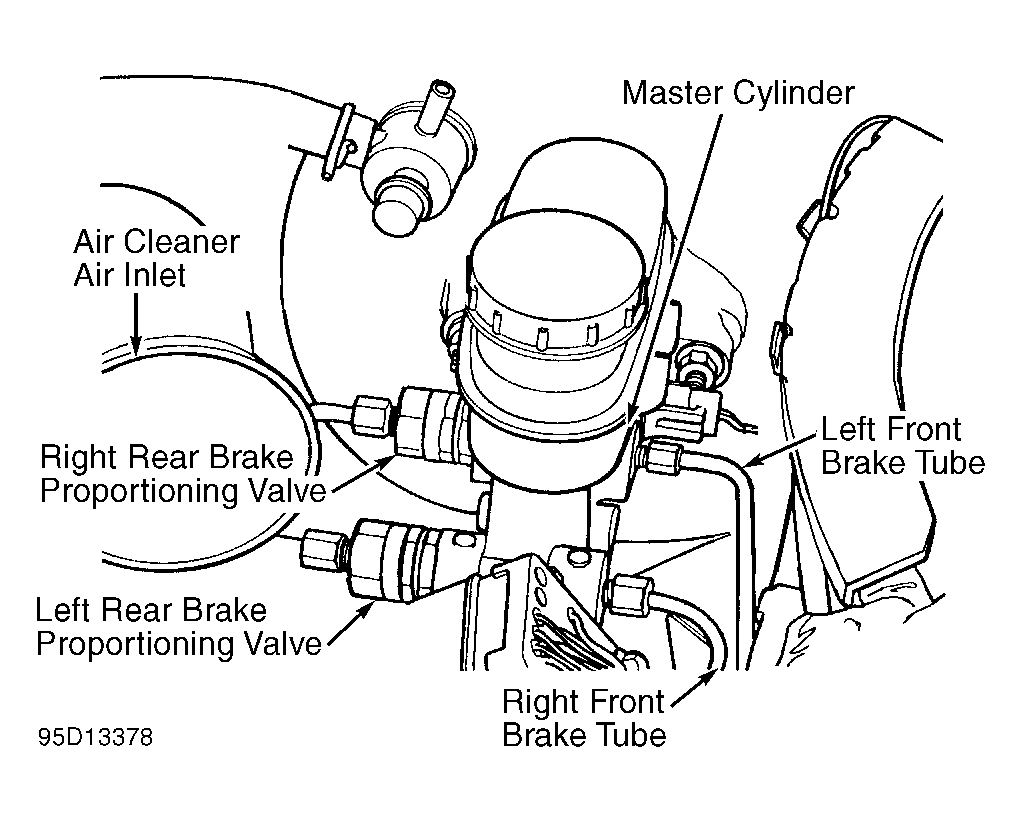

- Remove brakeline from suspect proportioning valve. See Fig 1. Remove proportioning valve from master cylinder. For 1999 Sebring Convertible, install Pressure Test Fitting (8187 or 8187-2), or for all other models, install Pressure Test Fitting (6805-1 or 6805-2), into master cylinder outlet port. Install proportioning valve into pressure test fitting.
- Install 1999 Sebring Convertible Pressure Test Fitting (8187), or Pressure Test Fitting (6805-3 or 6805-4) for all other models, into proportioning valve. Connect brakeline to pressure test fitting. Install Pressure Gauge (C-4007-A) into each pressure test fitting. See Fig 2.
- Bleed hoses and gauges. Have an assistant depress and hold pressure on brake pedal. Note and record pressure gauge readings. If inlet or outlet pressure readings do not agree with specifications, replace proportioning valve. See BRAKE PRESSURE table.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP. PROPORTIONING VALVE IDENTIFICATION
| Application |
Split/Slope |
Identification |
| Disc/Drum |
| Neon |
400 psi/.43 |
Black Band |
| Sebring Convertible |
600 psi/.59 |
Bar Code |
| Disc/Disc |
| Neon |
| With ABS |
300 psi/.34 |
Bar Code |
| Without ABS |
400 psi/.34 |
Bar Code |
| Sebring Convertible |
500 psi/.43 |
Bar Code |
BRAKE PRESSURE
| Application |
Inlet Pressure |
Split/Slope |
Rear Brake Outlet Pressure |
| Disc/Drum (Without ABS) |
| Neon |
1000 psi |
400 psi/.43 |
600-700 psi |
| Sebring Convertible |
1000 psi |
600 psi/.59 |
800-900 psi |
| Disc/Drum (With ABS) |
| Sebring Convertible |
1000 psi |
600 psi/.59 |
800-900 psi |
| Disc/Disc (Without ABS) |
| Neon |
1000 psi |
400 psi/.34 |
550-650 psi |
| Disc/Disc (With ABS) |
| Neon |
1000 psi |
300 psi/.34 |
550-650 psi |
| Sebring Convertible |
1000 psi |
500 psi/.43 |
600-700 psi |
