Driver-Side Air Bag Module & CLOCKSPRING: Removal

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Turn ignition switch to LOCK position. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Ensure front wheels are in straight-ahead position and steering wheel is locked. Remove air bag module mounting nuts from rear of steering wheel. See Fig 1 . Lift air bag module for access to clockspring connector at air bag module. See Fig 1 . To disconnect clockspring connector from air bag module, spread connector open and pry it outward with a screwdriver. See Fig 2 . Remove air bag module.

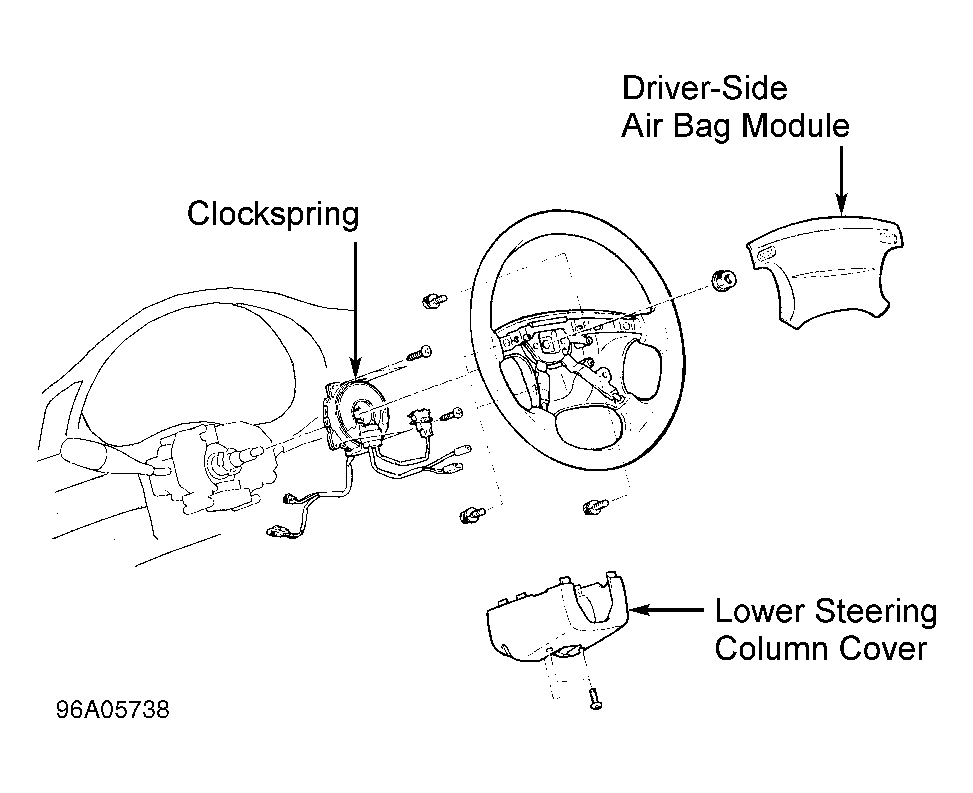

Fig 1: Locating SRS Steering Column Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Disconnecting Clockspring Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
Place air bag module on flat surface with trim cover facing up. Disconnect electrical connectors from steering wheel. Remove steering wheel with a steering wheel puller. Remove lower column cover. Disconnect clockspring lower connectors. Remove clockspring mounting screws. Remove clockspring.

WARNING: If front wheels are not in straight-ahead position or clockspring mating marks are not aligned before installing clockspring, the steering wheel may not turn completely, or flat cable inside clockspring may be severed, disabling SRS system and possibly causing serious injury to driver.
