CLOCKSPRING Test
- Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS
. Turn ignition switch to LOCK position. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM
. Remove driver-side air bag module for access to clockspring connectors. See DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING
under REMOVAL & INSTALLATION.

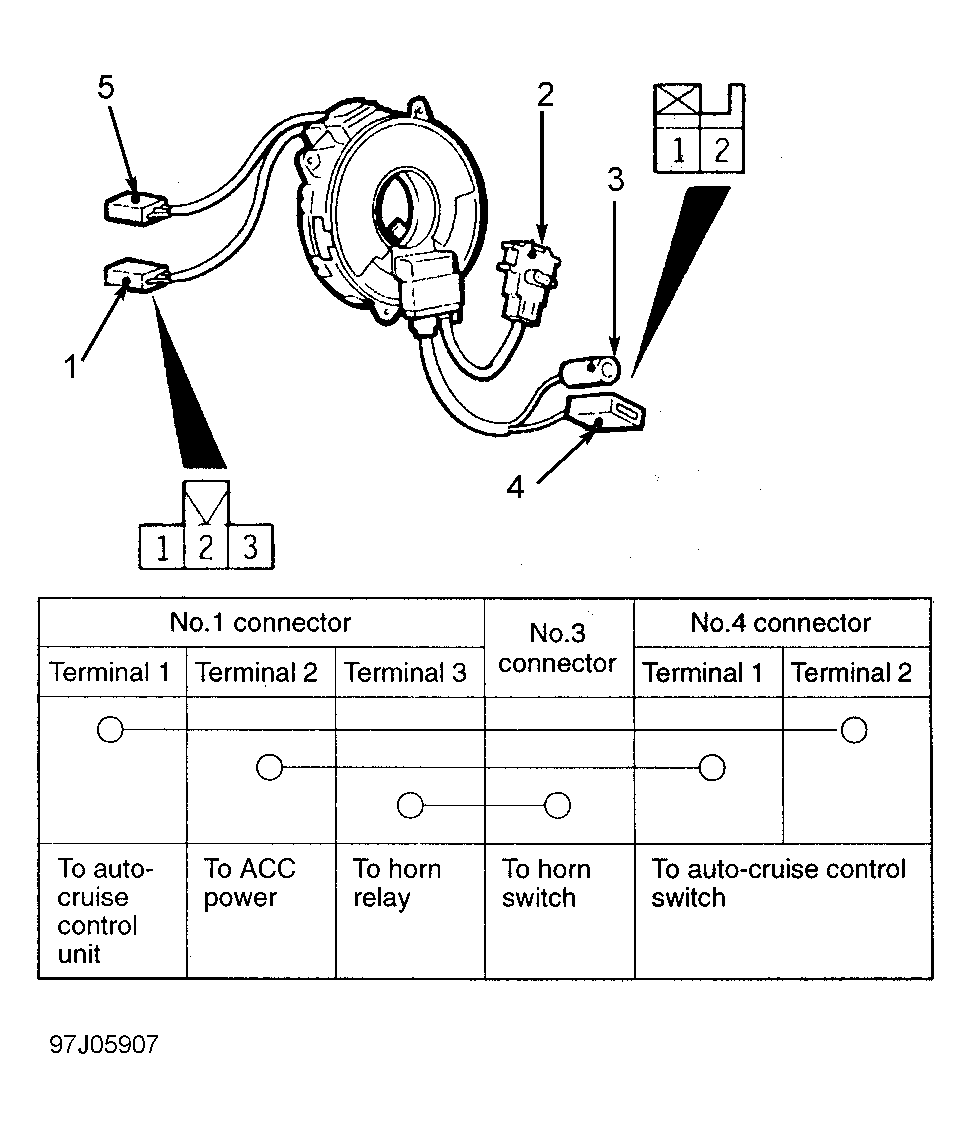

- Check for continuity between No. 1 connector of clockspring and connectors No. 3 and 4. See Fig 1
. Align White paint mark on connector No. 4 with notch in clockspring connector No. 2 of SRS Check Harness (MB991613). Connect connectors. Check resistance between SRS Check Harness connector 5 terminals No. 22 and 23. See Figure
and Figure
. Replace clockspring if resistance is greater than 0.4 ohms.
