Rocker Arm & Valve Lash Adjuster: Inspection

CAUTION: If lash adjuster is broken or worn, replace rocker assembly.

Inspect rocker arms and hydraulic lash adjuster assembly for wear or damage and replace as necessary. See Fig 3.

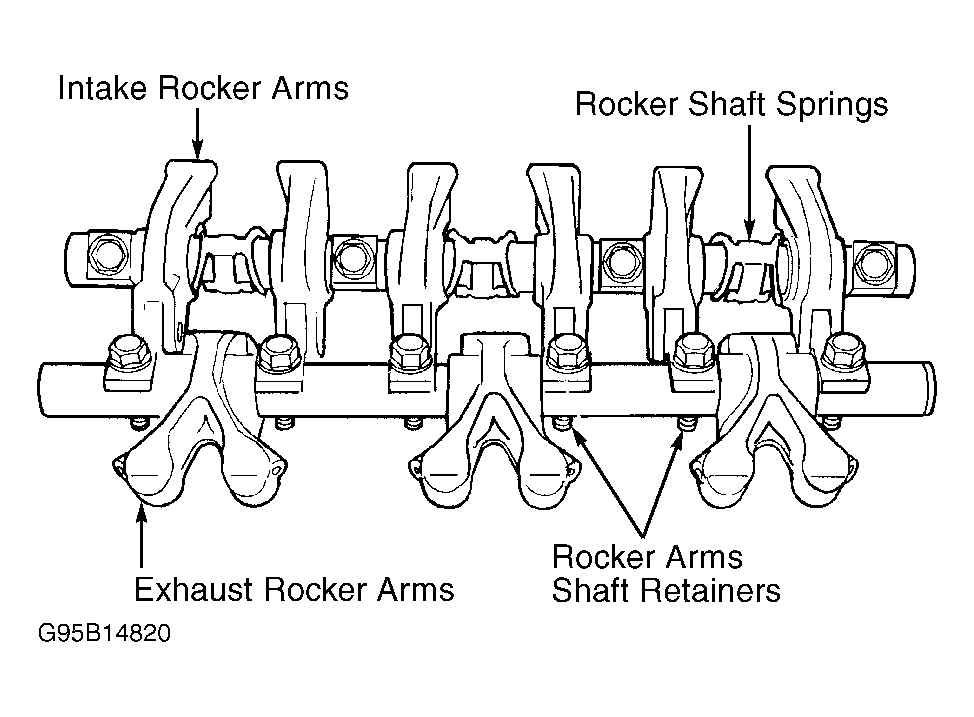

Fig 1: Identifying Rocker Arms & Shaft

Courtesy of CHRYSLER CORP.

Fig 2: Installing Lash Adjuster Retainers

Courtesy of CHRYSLER CORP.

Fig 3: Inspecting Rocker Arm

Courtesy of CHRYSLER CORP.
