Intake Manifold: Installation

To install, reverse removal procedure. Install NEW gaskets. Tighten all bolts to specification and in correct sequence. See TORQUE SPECIFICATIONS . See Fig 1.

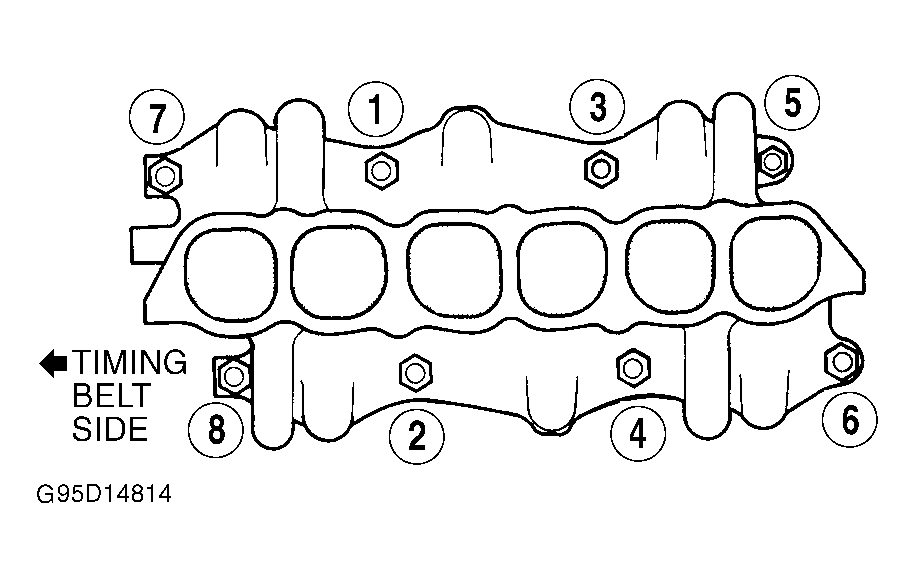

Fig 1: Intake Manifold Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.
