Removal & Installation

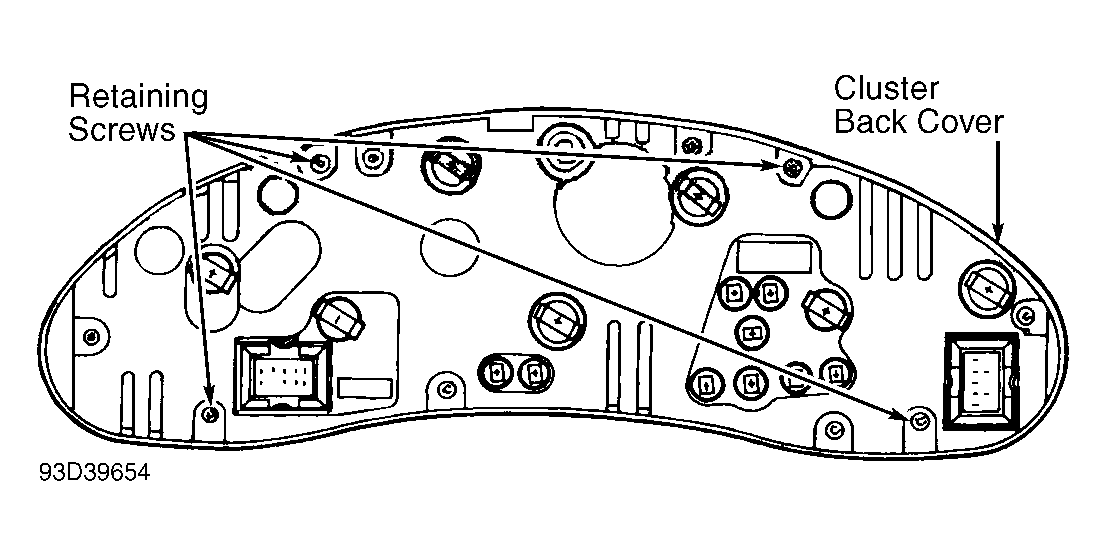

  1. Remove instrument cluster. See INSTRUMENT CLUSTER & BEZEL  . Remove odometer reset knob by pulling rearward. Remove back cover retaining screws. See Figure .
  2. Disconnect gear select indicator and odometer connectors from printed circuit board. Remove 4 printed circuit retaining screws (2 screws located at base of each connector). To install, reverse removal procedure.
