Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Description	Illustration
Autostick Switch	See Fig 1 .
Body Control Module (JA & JX Bodies)	See Fig 2 .
Data Link Connector (16-Pin)	See Fig 3 .
Data Link Connector (12-Pin)	See Fig 4 .
Input Speed Sensor	See Fig 5 .
Output Speed Sensor	See Fig 6 .
Overdrive Off Switch	See Fig 7 .
Park/Neutral Position Switch	See Fig 8 .
Powertrain Control Module	See Fig 9 .
Relay Connector (F24S & FJ22 Bodies)	See Fig 10 .

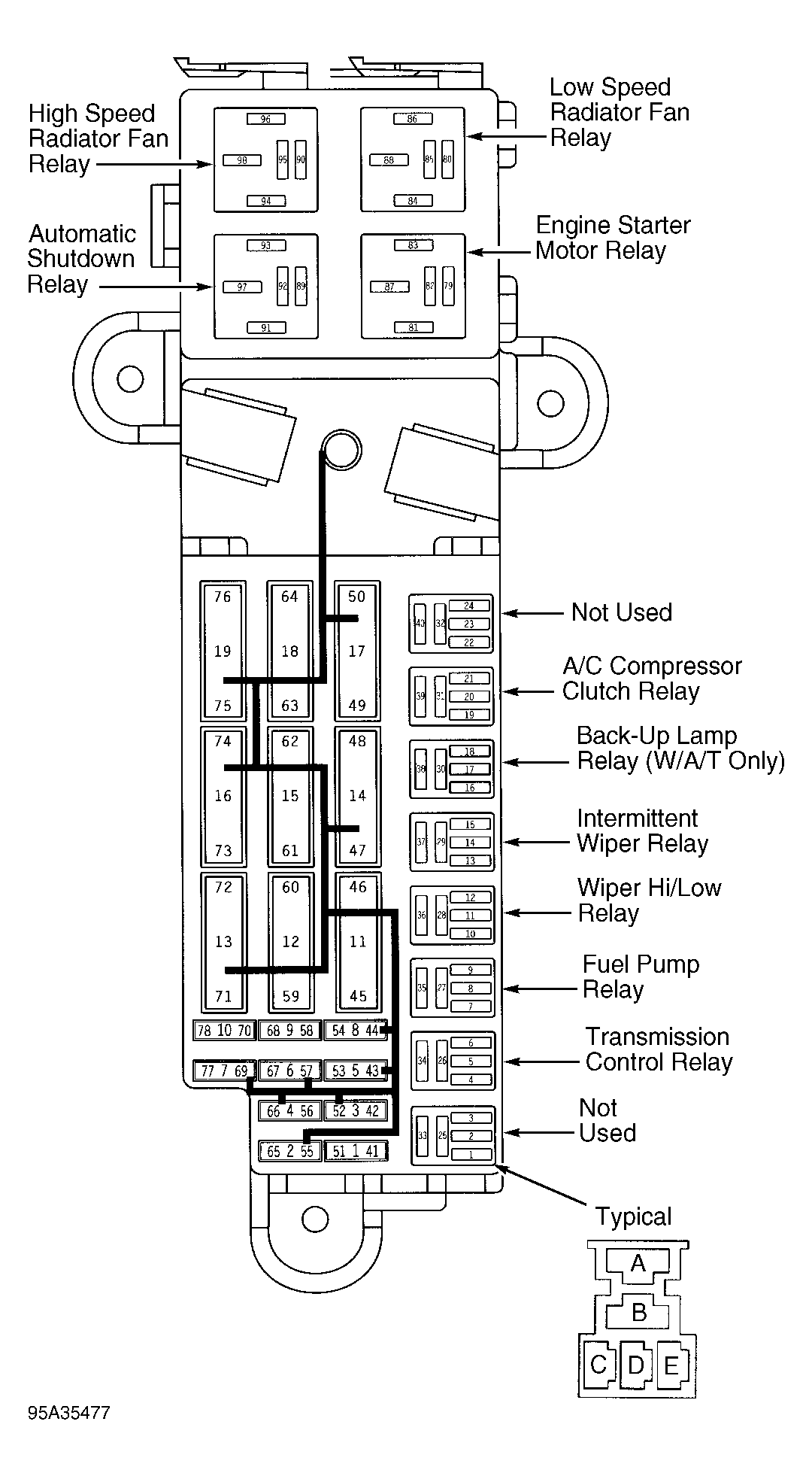

Relay Connector (JA & JX Bodies)	See Figure .
Relay Connector (NS Bodies)	See Figure .
Solenoid Pack	See Fig 11 .
Transmission Control Module (AJ, AS, NS Bodies)	See Fig 12 .
Transmission Control Module (F24S & FJ22 Bodies)	See Fig 13 .
Transmission Control Module (JA & JX Bodies)	See Fig 14 .
Transmission Range Sensor	See Fig 15 .
Transmission Range Switch	See Fig 8 .

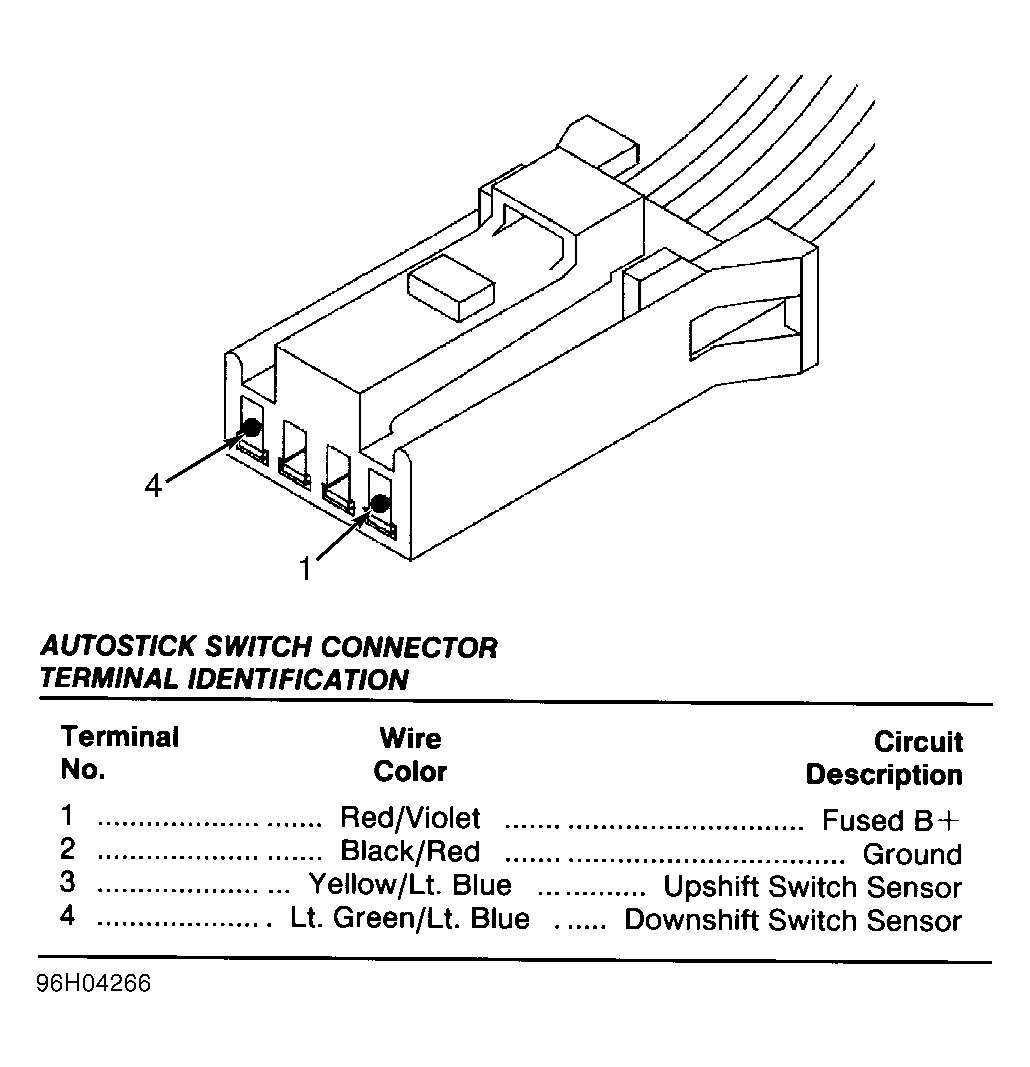

Fig 1: Identifying Autostick Switch Connector Terminals

G96H04266

Courtesy of CHRYSLER CORP.

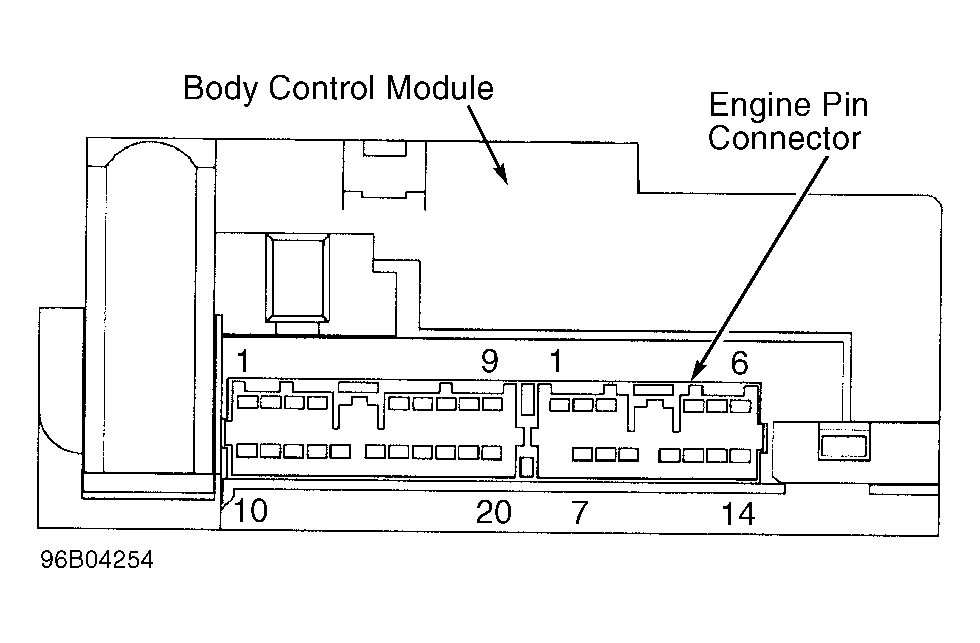

Fig 2: Identifying Body Control Module Connector Terminals (JA & JX Bodies)

G96B04254

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Data Link Connector (16-Pin) Terminals

G95H14289

Courtesy of CHRYSLER CORP.

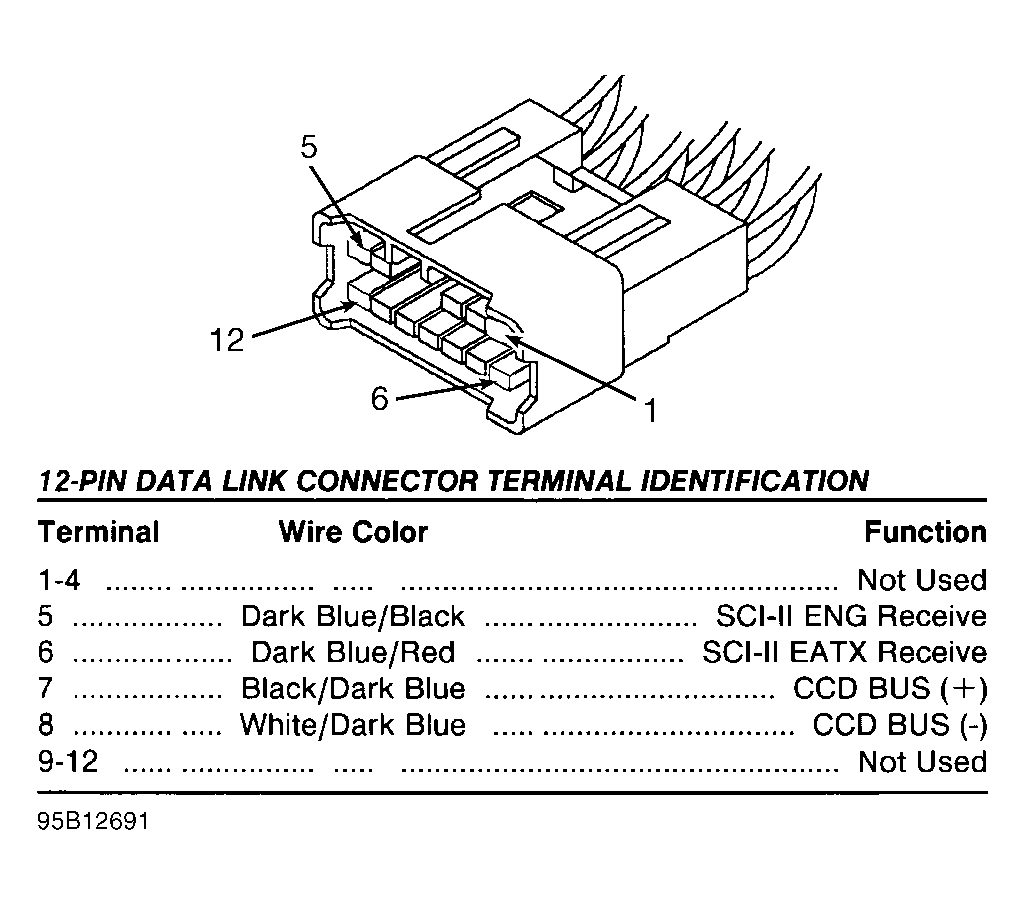

Fig 4: Identifying Data Link Connector (12-Pin) Connector Terminals

G95B12691

Courtesy of CHRYSLER CORP.

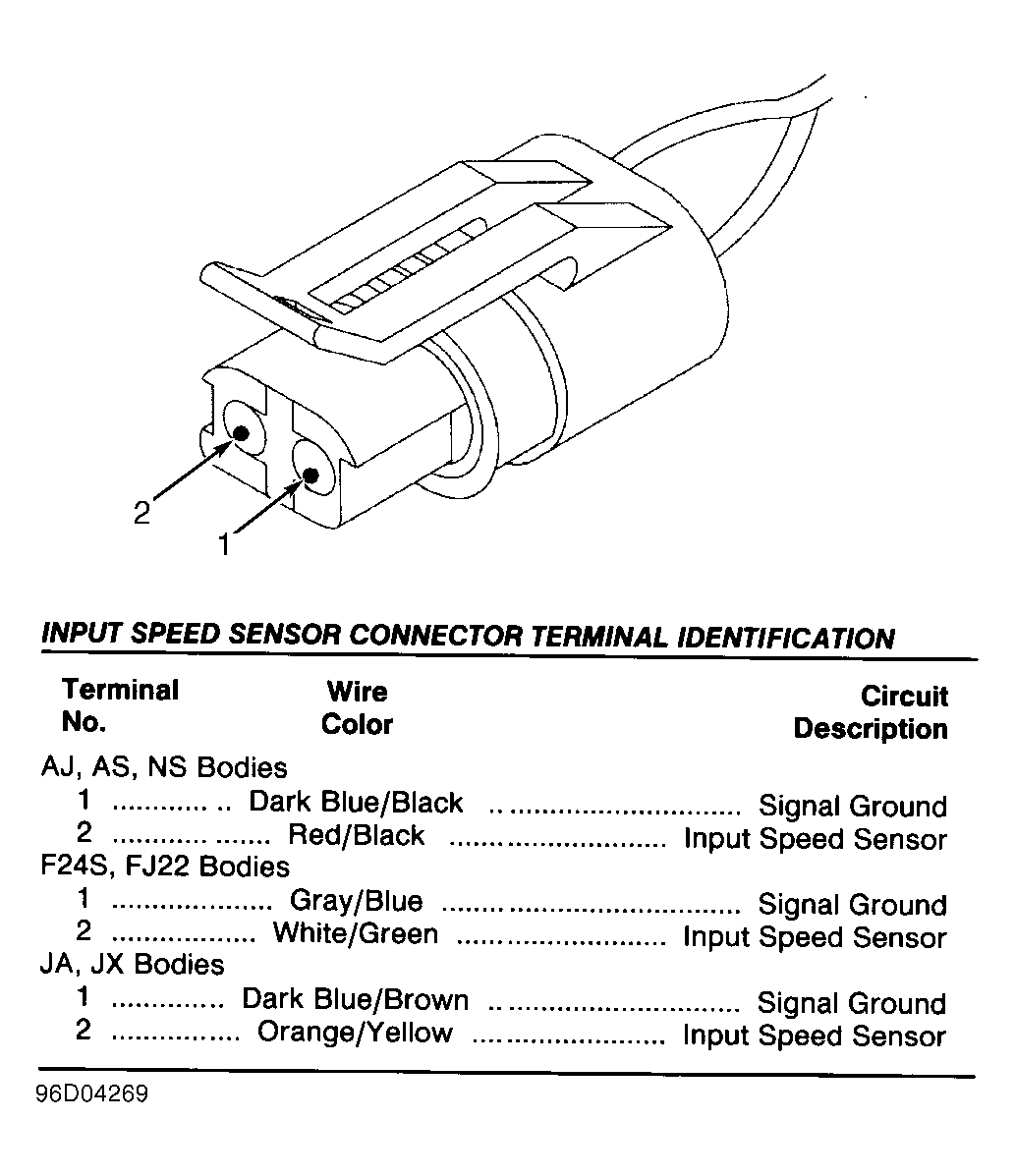

Fig 5: Identifying Input Speed Sensor Connector Terminals

G96D04269

Courtesy of CHRYSLER CORP.

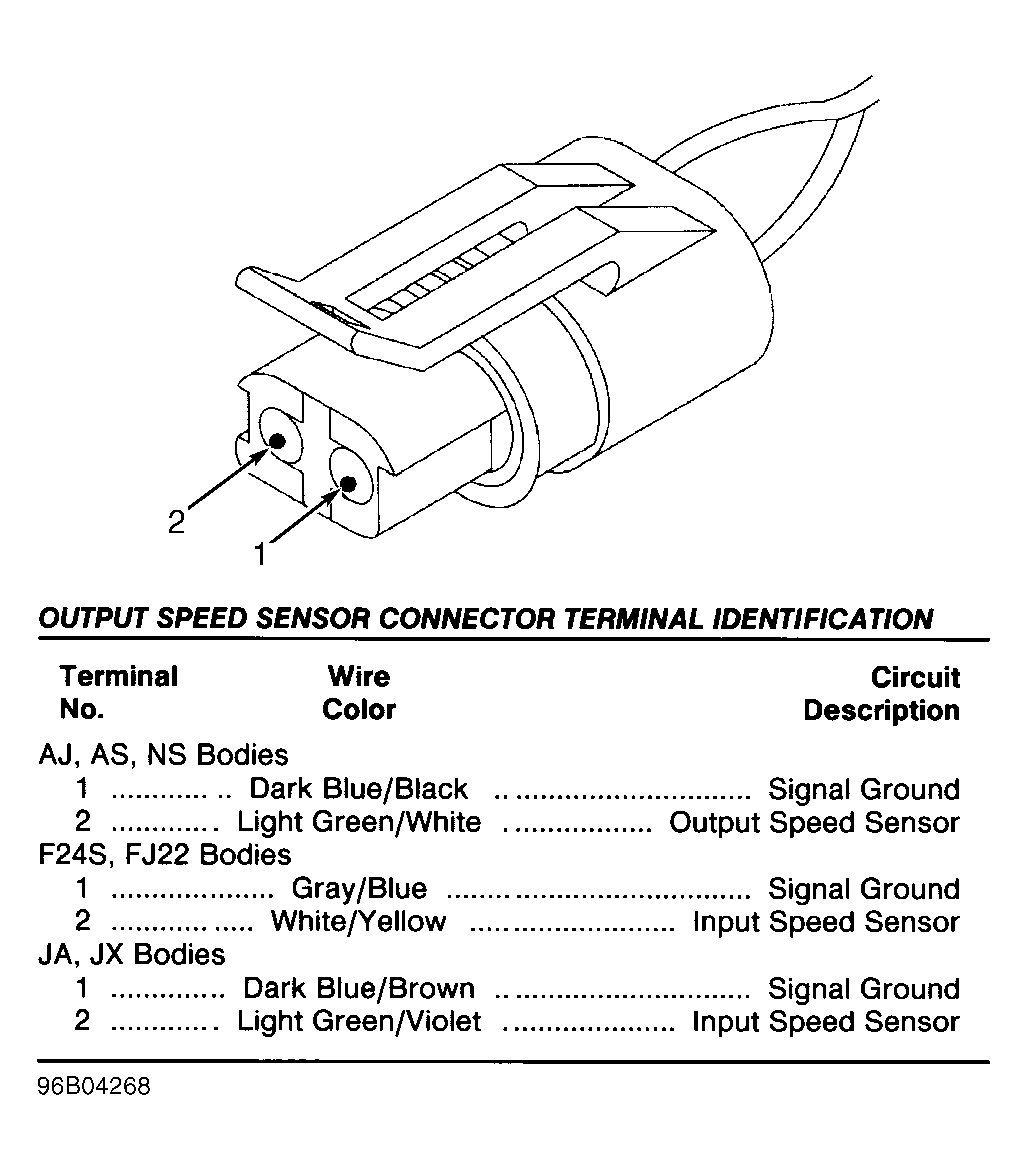

Fig 6: Identifying Output Speed Sensor Connector Terminals

G96B04268

Courtesy of CHRYSLER CORP.

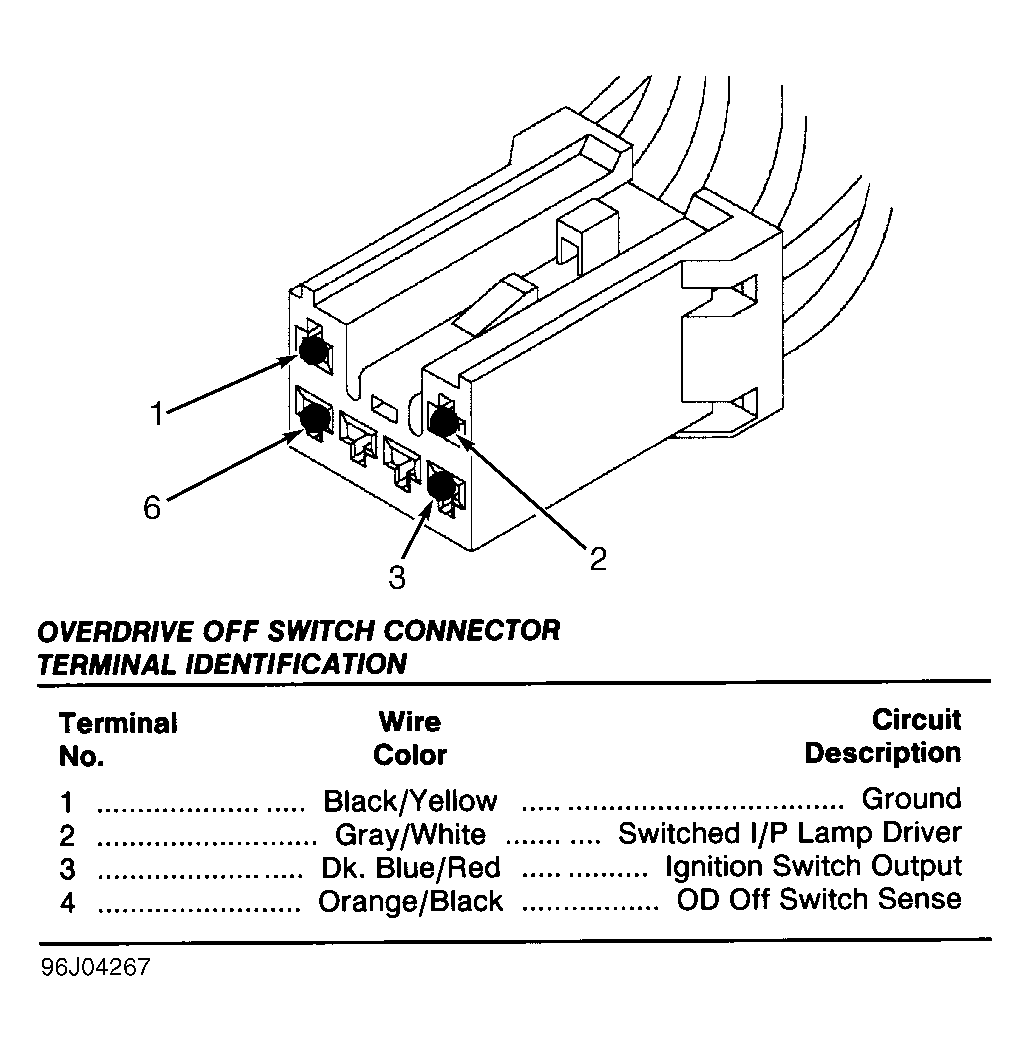

Fig 7: Identifying Overdrive Off Connector Terminals

G96J04267

Courtesy of CHRYSLER CORP.

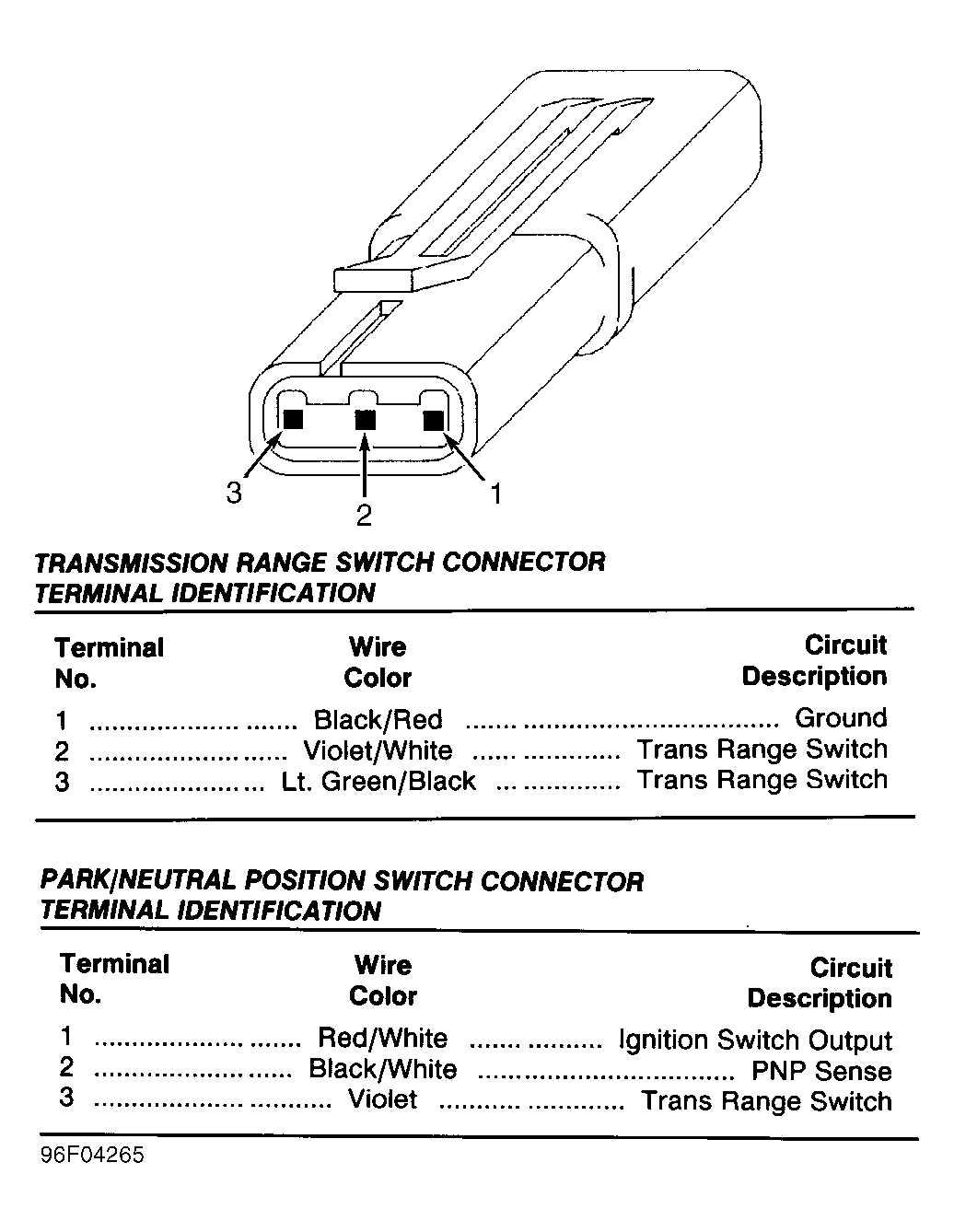

Fig 8: Identifying Park/Neutral Position Switch & Transmission Range Switch Connector Terminals

G96F04265

Courtesy of CHRYSLER CORP.

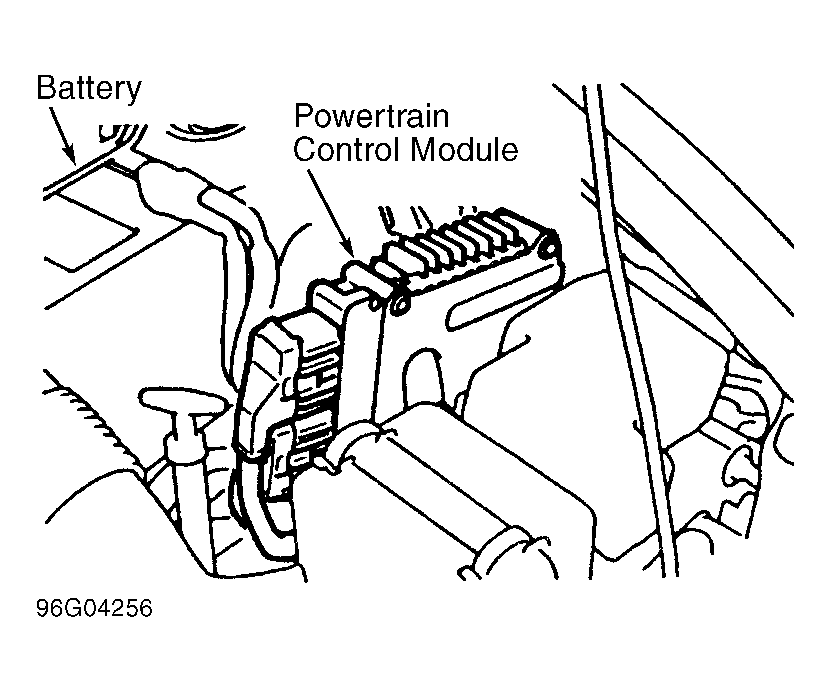

Fig 9: Identifying Powertrain Control Module Connector Terminals

G95I12680

Courtesy of CHRYSLER CORP.

Fig 10: Identifying Relay Connector Terminals (F24S & FJ22 Bodies)

G92C05763

Courtesy of CHRYSLER CORP.

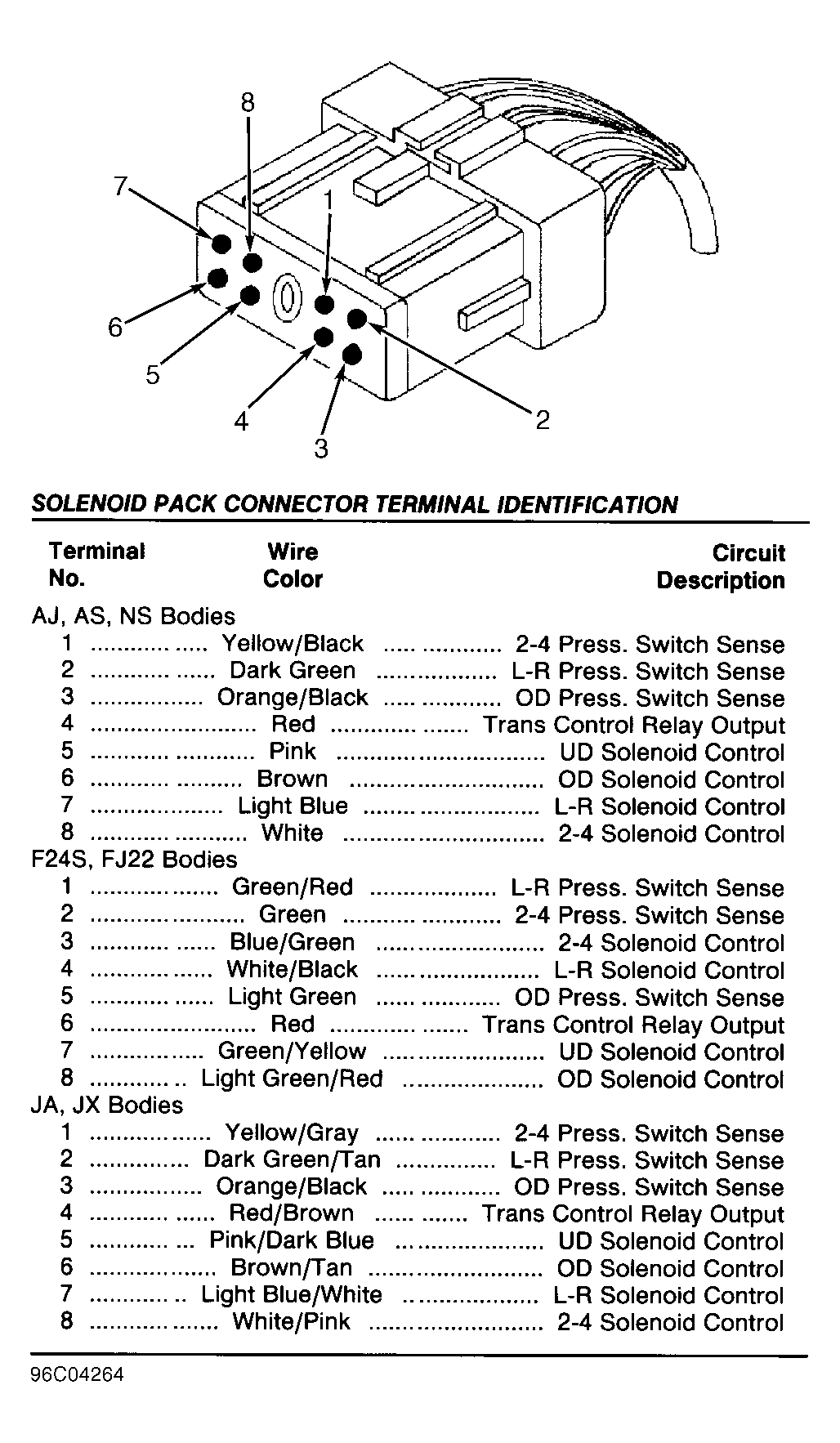

Fig 11: Identifying Solenoid Pack Connector Terminals

G96C04264

Courtesy of CHRYSLER CORP.

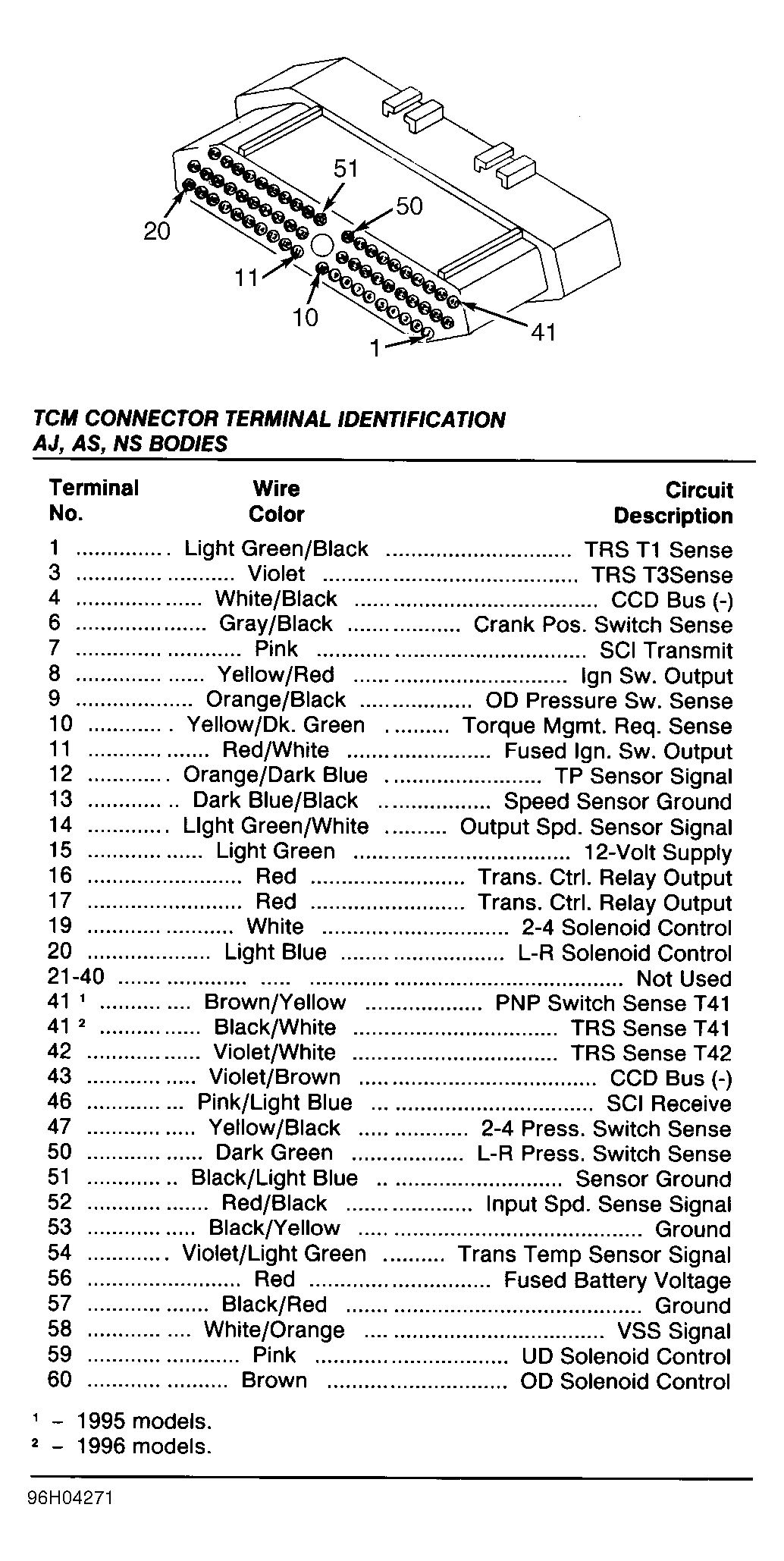

Fig 12: Identifying Transmission Control Module Connector Terminals (AJ, AS, NS Bodies)

G96H04271

Courtesy of CHRYSLER CORP.

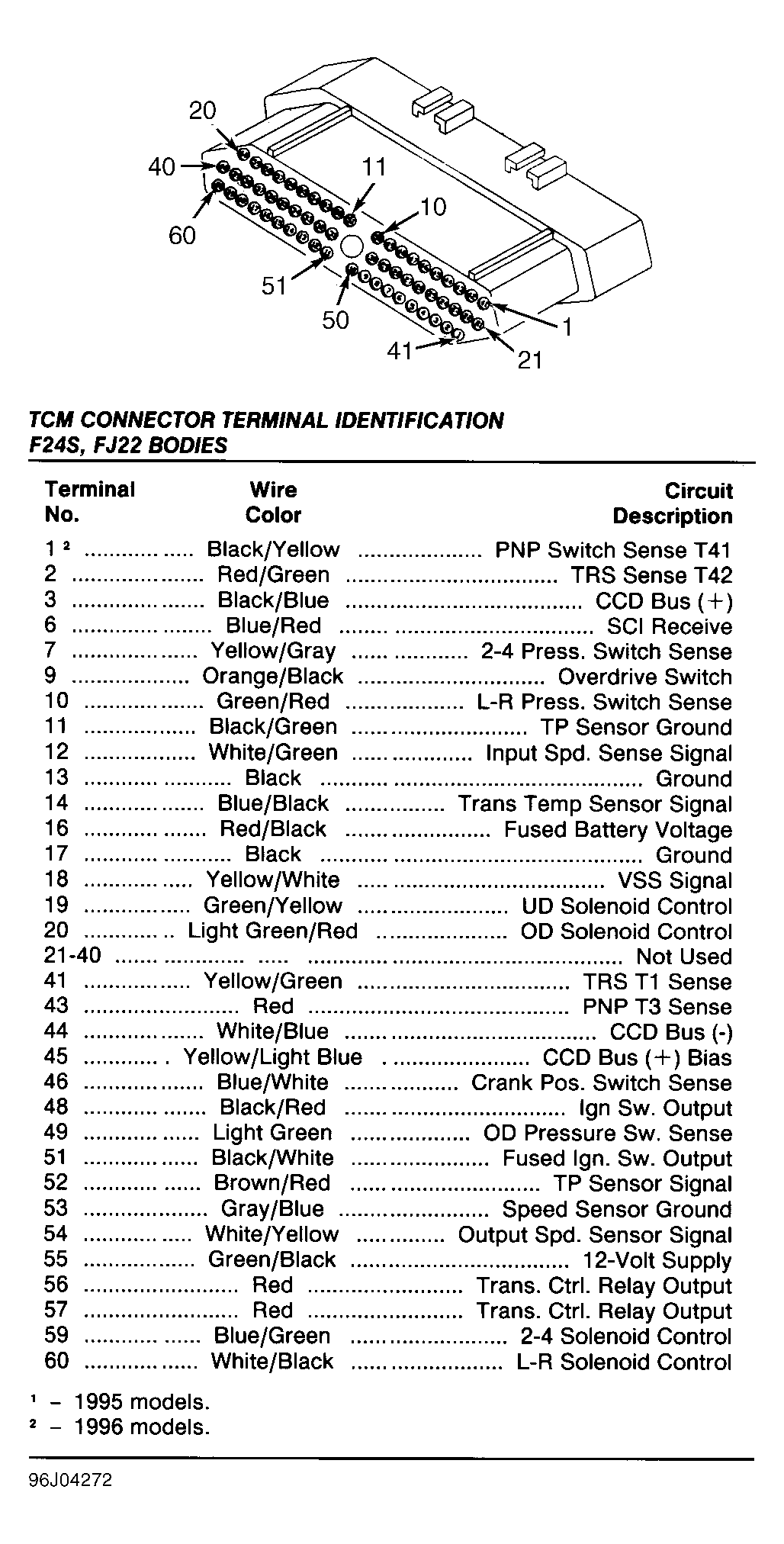

Fig 13: Identifying Transmission Control Module Connector Terminals (F24S & FJ22 Bodies)

G96J04272

Courtesy of CHRYSLER CORP.

Fig 14: Identifying Transmission Control Module Connector Terminals (JA & JX Bodies)

G96B04273

Courtesy of CHRYSLER CORP.

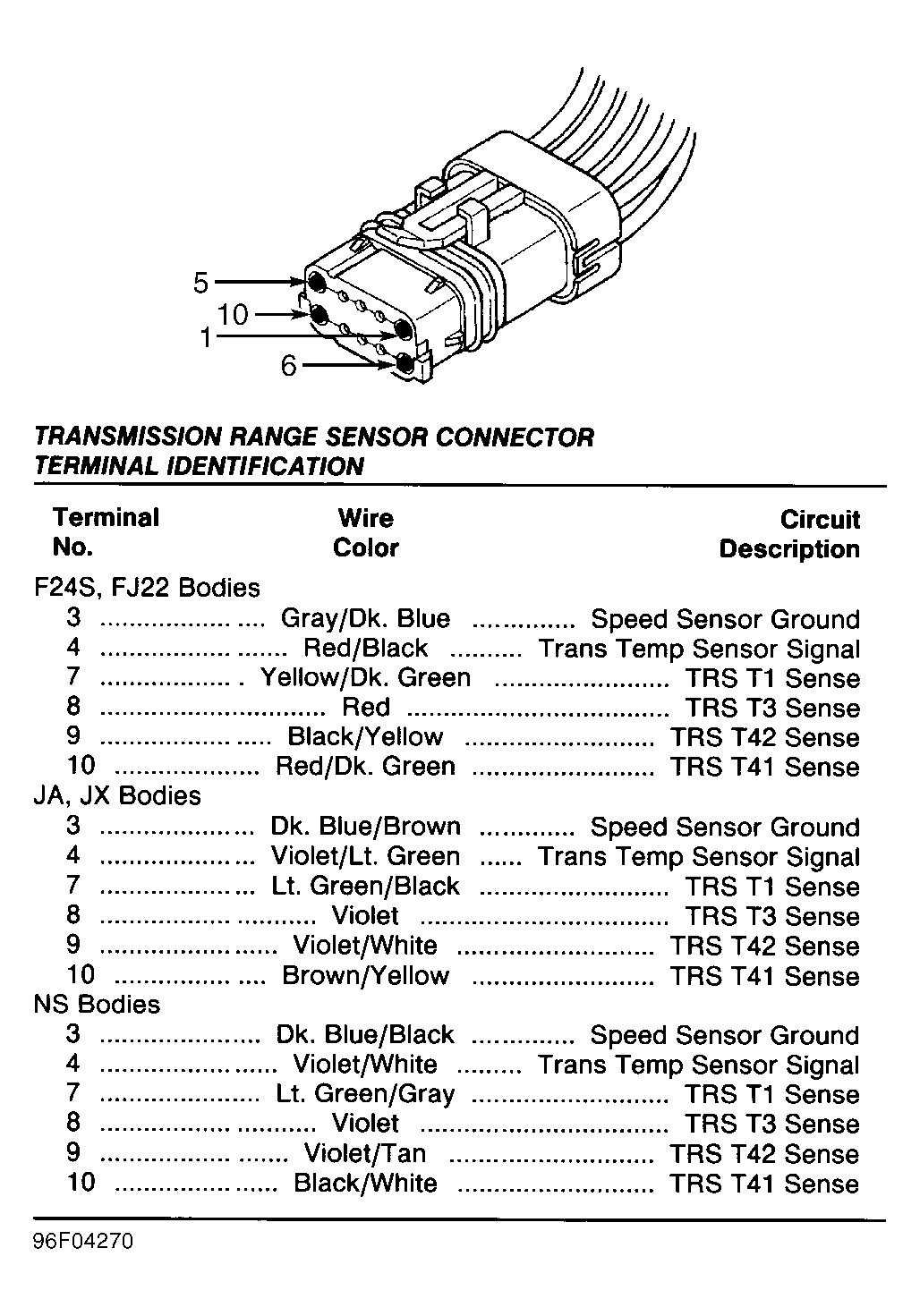

Fig 15: Identifying Transmission Range Sensor Connector Terminals

G96F04270

Courtesy of CHRYSLER CORP.
