Stabilizer Bar: Installation
- To install, reverse removal procedure.
To install, reverse removal procedure. If replacing stabilizer link ball joint
dust cover, remove clip ring and dust cover. Lubricate lip and inside of dust
cover with multipurpose lubricant. Cover stabilizer link threads with tape,
then install dust cover. Ensure ends of clip ring align at a 90-degree angle
from stabilizer link axis.

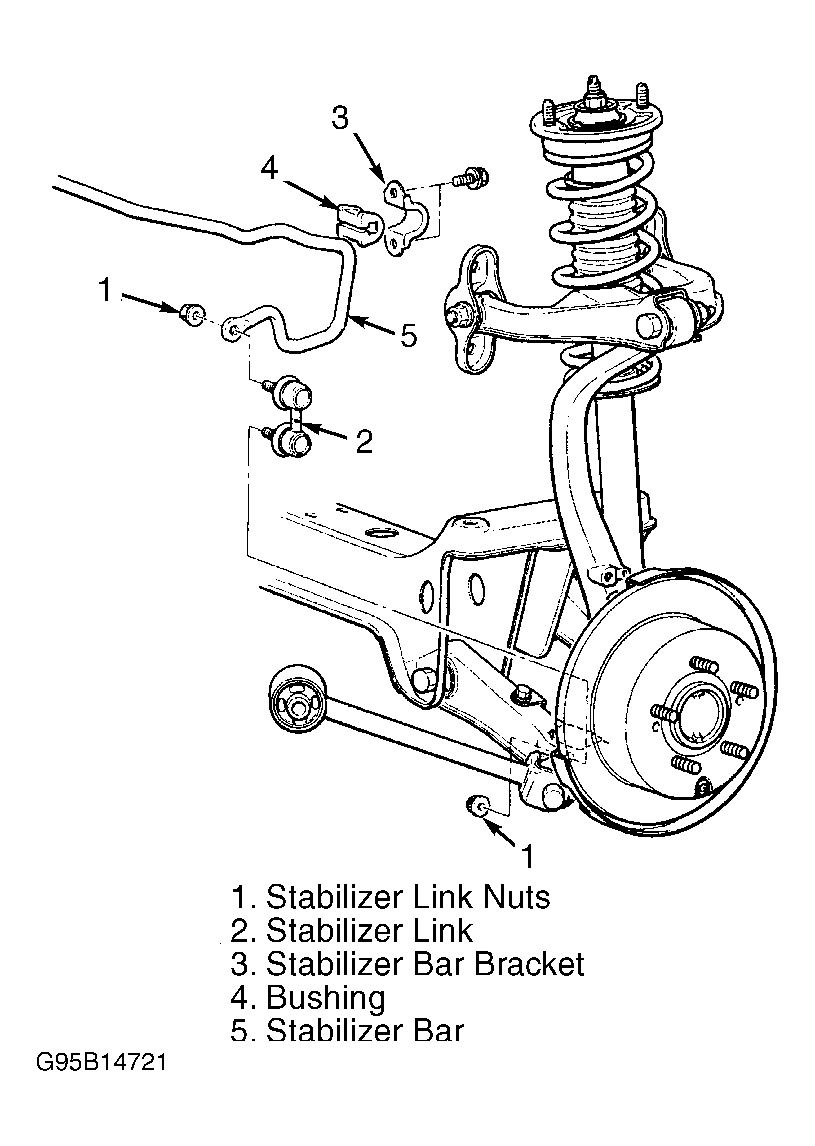

- Install stabilizer bar with identification
mark on the left, then install bushing so that indicated dimension is .39"
(10 mm). See Fig 2. Tighten
bolts to specification. See TORQUE SPECIFICATIONS .
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
