Shock Absorber: Installation

To install, reverse removal procedure. Use NEW self-locking nut. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS . Check front wheel alignment. See the appropriate WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES article in the WHEEL ALIGNMENT section.

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES - Talon

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES - Avenger &

Sebring

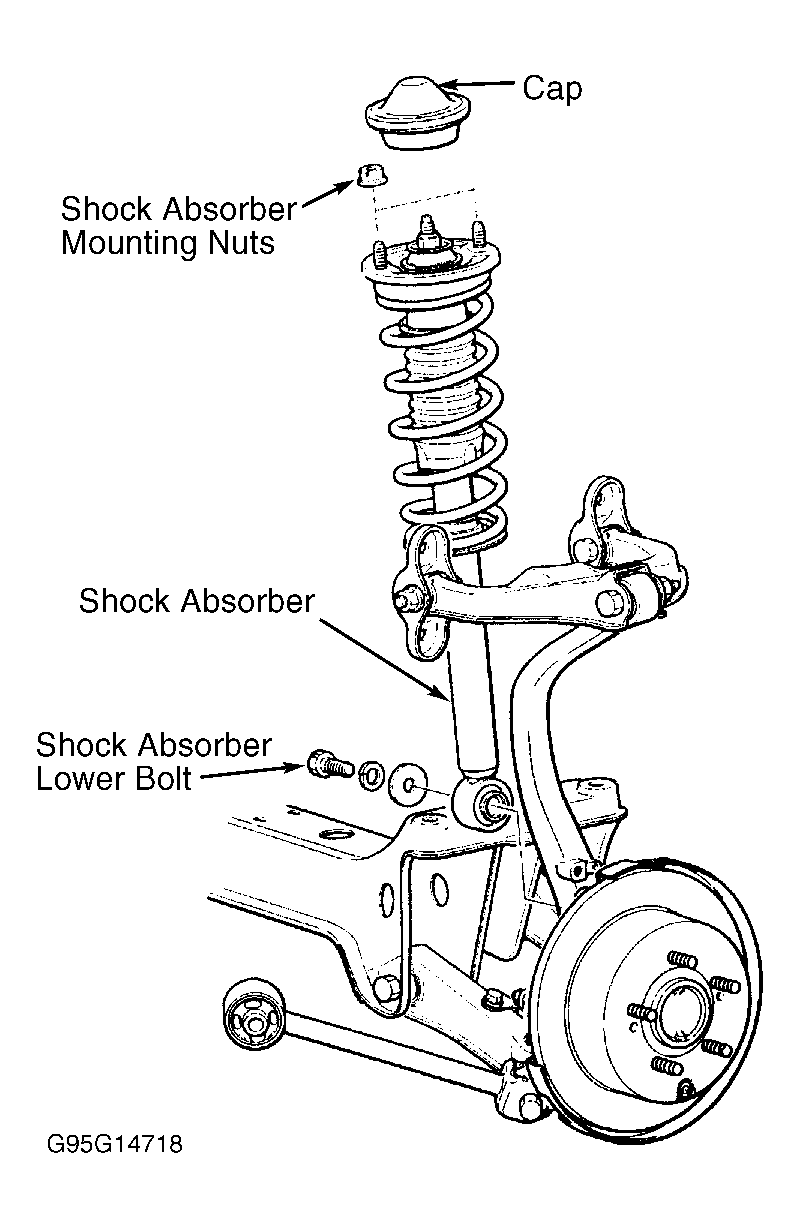

Fig 1: Removing Shock Absorber

Courtesy of CHRYSLER CORP.

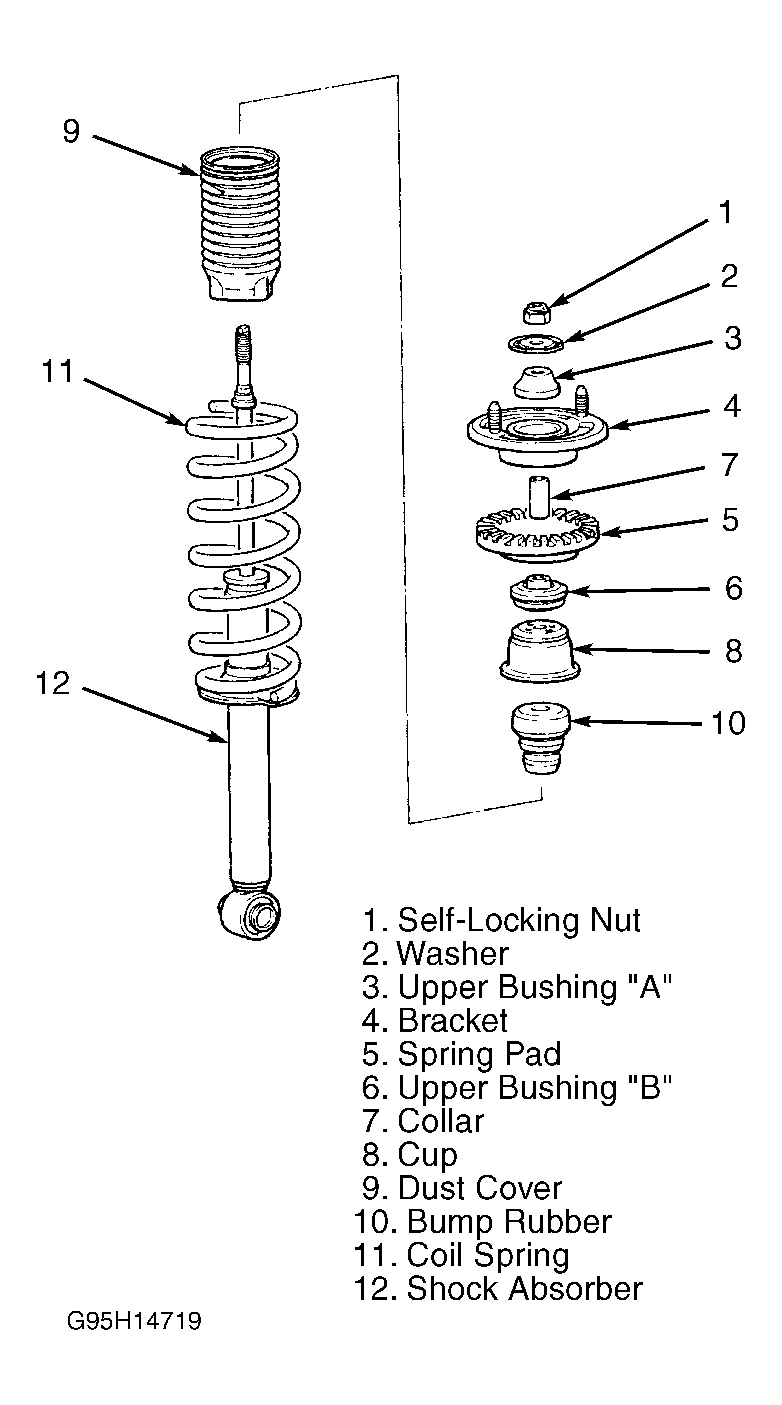

Fig 2: Identifying Shock Absorber Components

Courtesy of CHRYSLER CORP.

Fig 3: Installing Upper Bracket Assembly Bolts

Courtesy of CHRYSLER CORP..
