Lower Arm & Toe Control Arm: Installation

To install, reverse removal procedure. If replacing ball joint dust cover, lubricate lip and inside of dust cover with multipurpose lubricant. Using Ball Joint Installer (MB990800 ), install dust cover. Use NEW toe control arm ball joint nut. Check front wheel alignment. See the appropriate WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES article in the WHEEL ALIGNMENT section.

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES - Talon

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES - Avenger &

Sebring

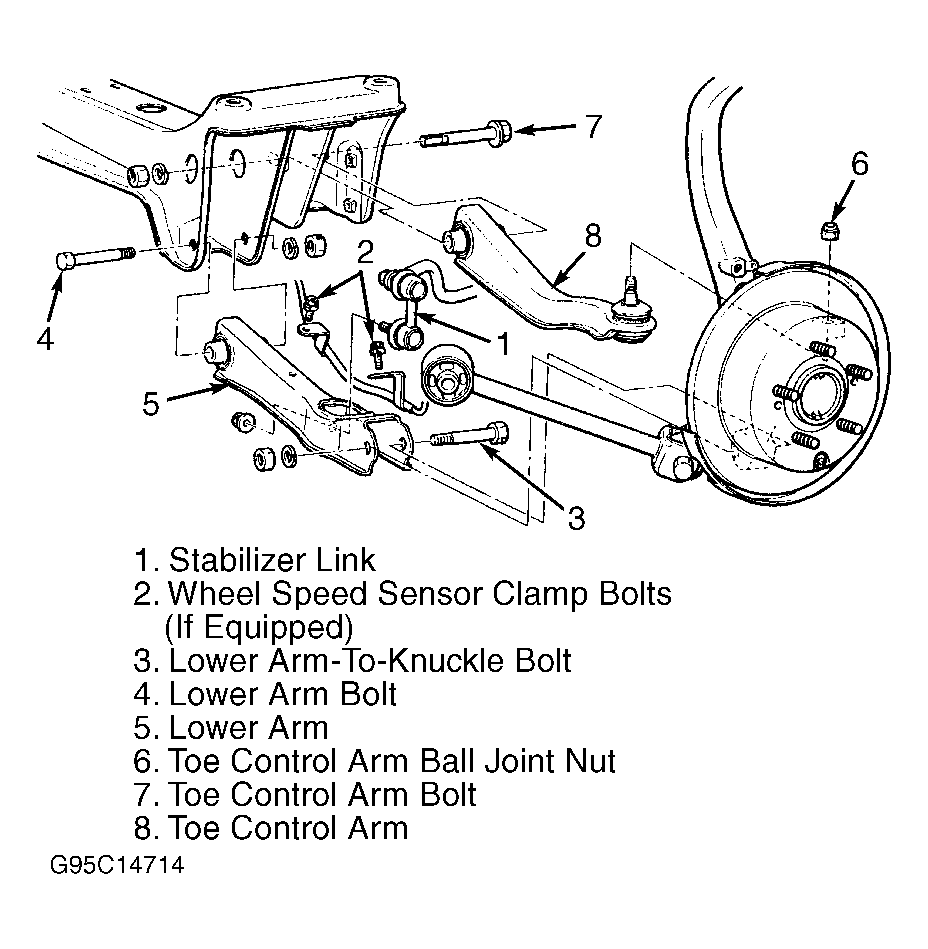

Fig 1: Identifying Lower Arm & Toe Control Arm Components

Courtesy of CHRYSLER CORP.

Fig 2: Aligning Toe Control Arm Bolt

Courtesy of CHRYSLER CORP.
