Cylinder Head: Installation

NOTE: Ensure cylinder head bolt washers are installed with beveled side up and square cut side down. See Fig 3.

Clean cylinder head and block mating surfaces. Install NEW cylinder head gasket. Check identification mark to ensure proper gasket. See Fig 4. When installing gasket, ensure identification mark is facing up. Tighten cylinder head bolts to specification in correct sequence. See TORQUE SPECIFICATIONS . See Fig 6.
When installing upper and lower radiator hose, fit hose over pipe only as far as projection. See Figure. To fill and bleed cooling system, see COOLING SYSTEM BLEEDING .
Ensure No. 1 cylinder is at TDC of compression stroke. Align mating mark of distributor housing with that of coupling. See Fig 5 and Figure . Lubricate and install NEW distributor seal and distributor. To complete installation, reverse removal procedure.

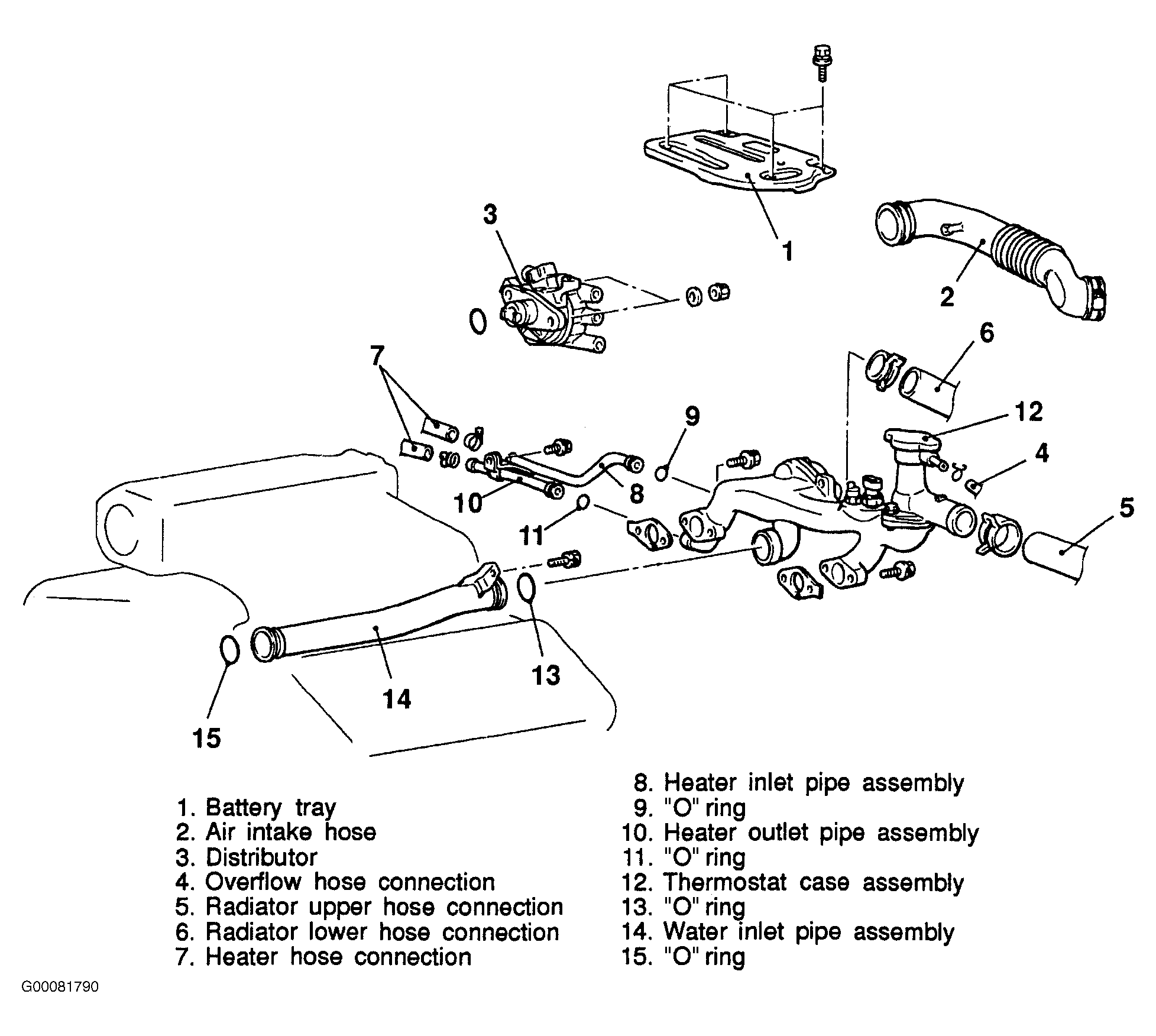

Fig 1: Removing Water Inlet Pipe Assembly

Courtesy of CHRYSLER CORP.

Fig 2: Removing Cylinder Head

Courtesy of CHRYSLER CORP.

Fig 3: Installing Cylinder Head Bolt Washers

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Cylinder Head Gasket Identification Mark

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Camshaft-To-Distributor Coupling

Courtesy of CHRYSLER CORP.

Fig 6: Cylinder Head Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.
