Removal & Installation

  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Turn ignition switch to LOCK position. Disconnect and shield negative battery cable. Wait at least 60 seconds before servicing.

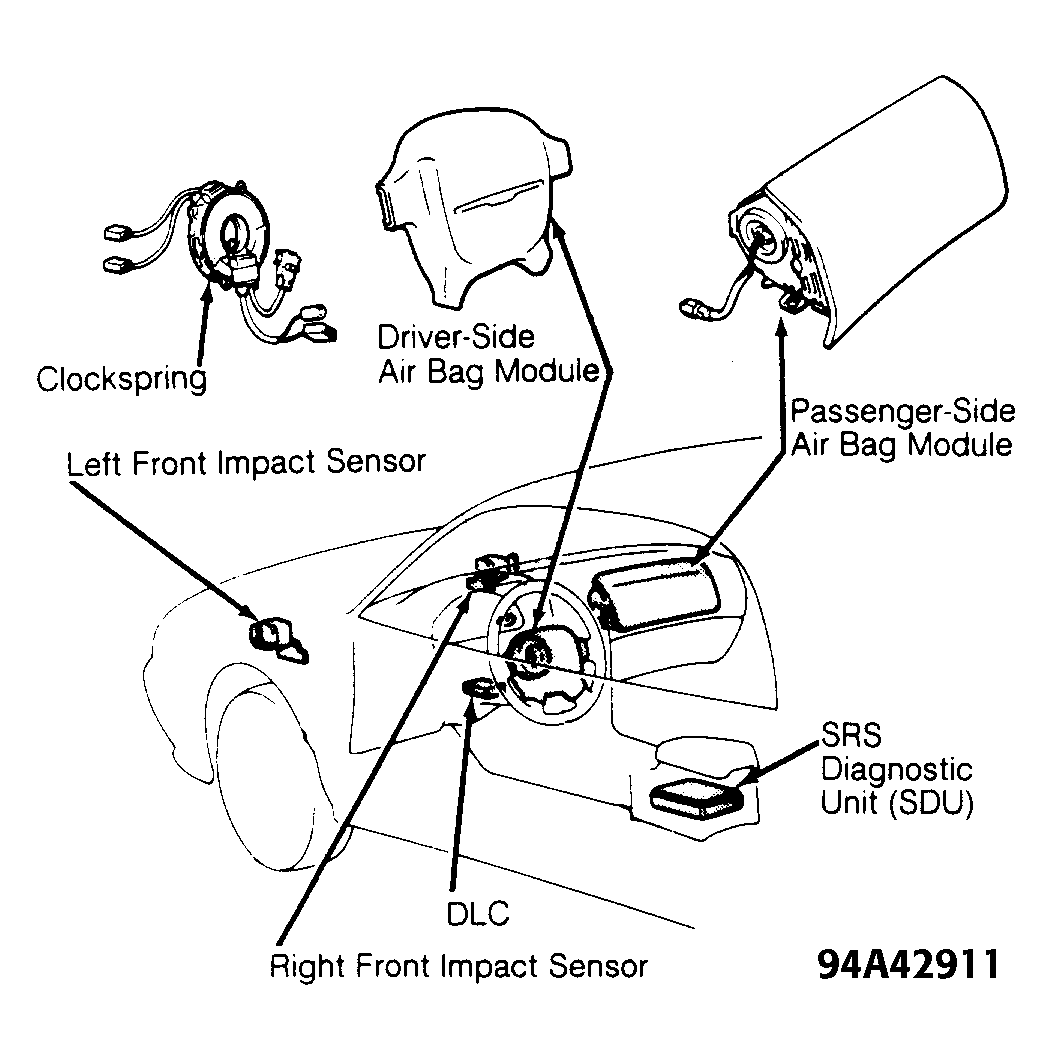

  2. Remove components for access to front impact sensors as necessary. See Figure and Figure . Remove front impact sensor mounting bolts. Disconnect electrical connector. Remove front impact sensor.
  3. To install, reverse removal procedure. Ensure arrow on front impact sensor is facing front of vehicle. After servicing, perform TESTING - SYSTEM OPERATION CHECK  .
