Solenoids & Solenoid Valves

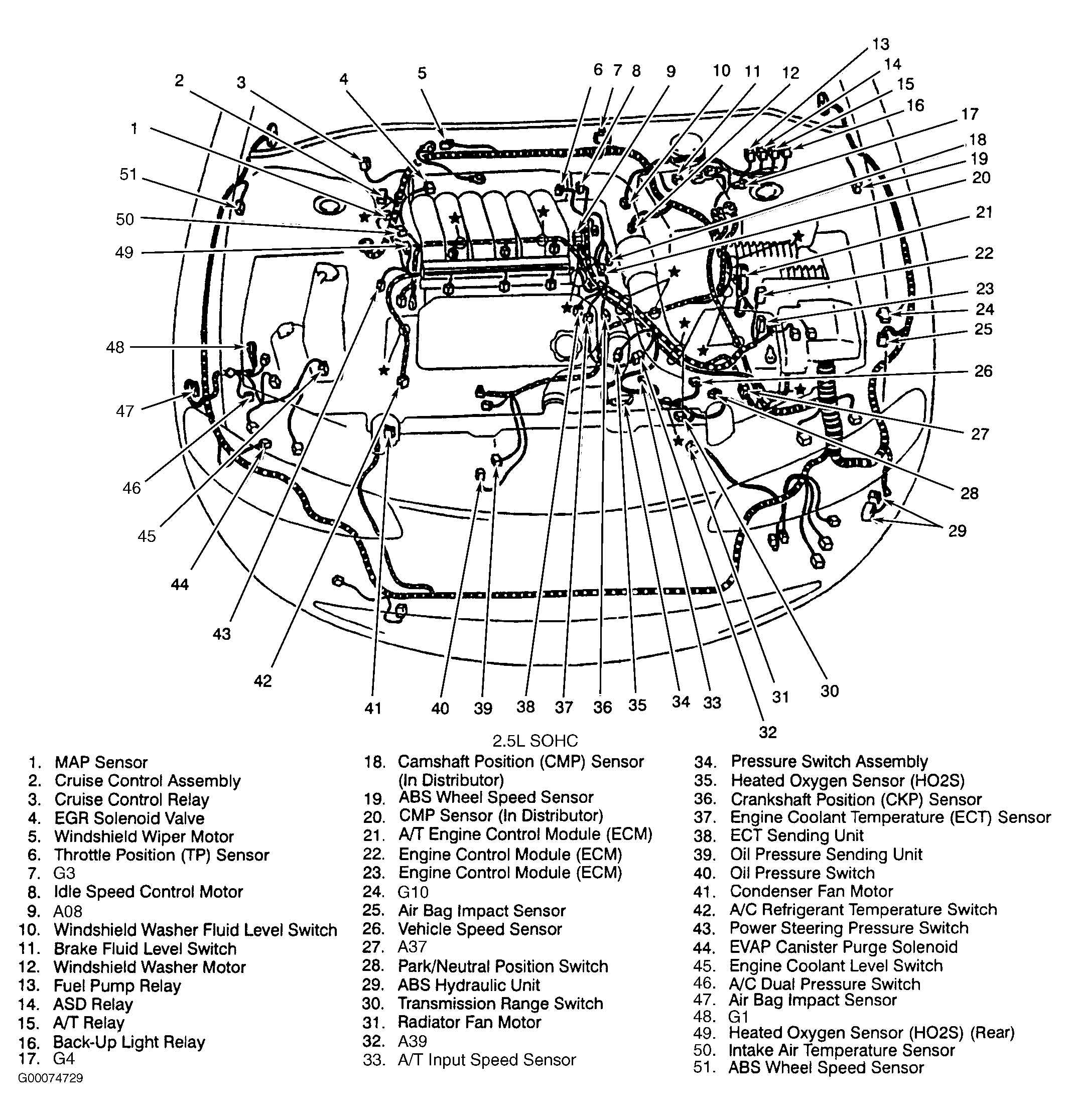

SOLENOIDS & SOLENOID VALVES LOCATION
| Component | Location |
|---|---|
| ABS Hydraulic Unit (W/ Built-In Solenoid Valve) (2.5L) | Left front of engine compartment. See Figure . |
| Cruise Control Assembly (2.5L) | Right rear of engine compartment. See Figure . |
| EVAP Canister Purge Solenoid (2.5L) | Right front of engine compartment. See Figure . |
| EGR Solenoid Valve (2.5L) | Center rear of engine compartment, on intake plenum. See Figure . |
| Pressure Switch Assembly (2.5L) | Left front of engine compartment. See Figure . |
