Disabling Passenger-Side Air Bag (Integra)

Remove glove box. Disconnect harness connector from passenger-side air bag connector. Connect Red short connector to passenger-side air bag connector. See Fig 1. Passenger-side air bag is now disabled.

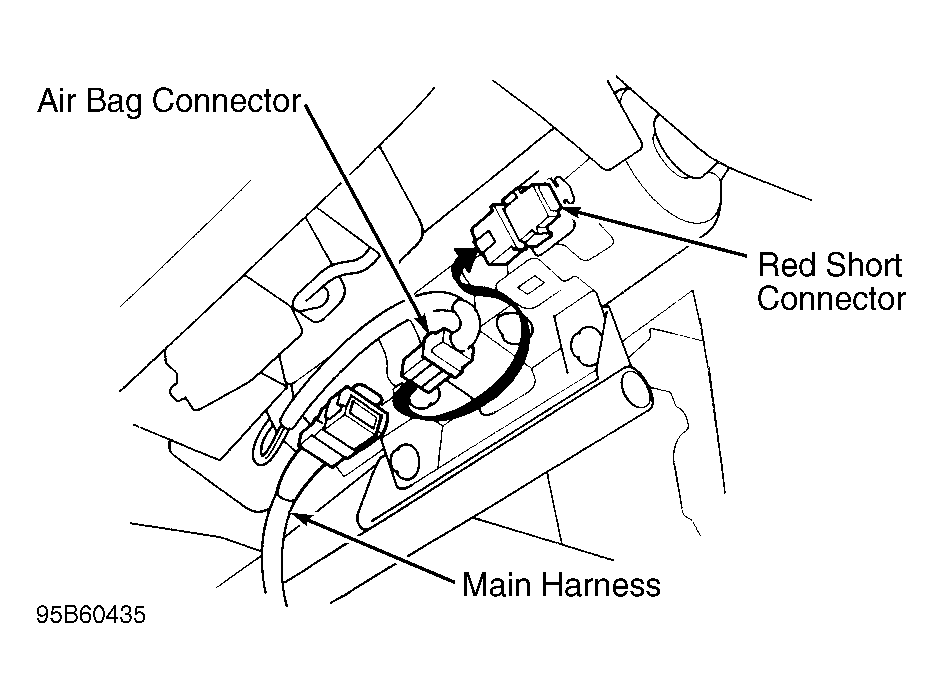

Fig 1: Disabling Passenger-Side Air Bag (1997 Integra)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
