Vacuum Hose Diagram(S)

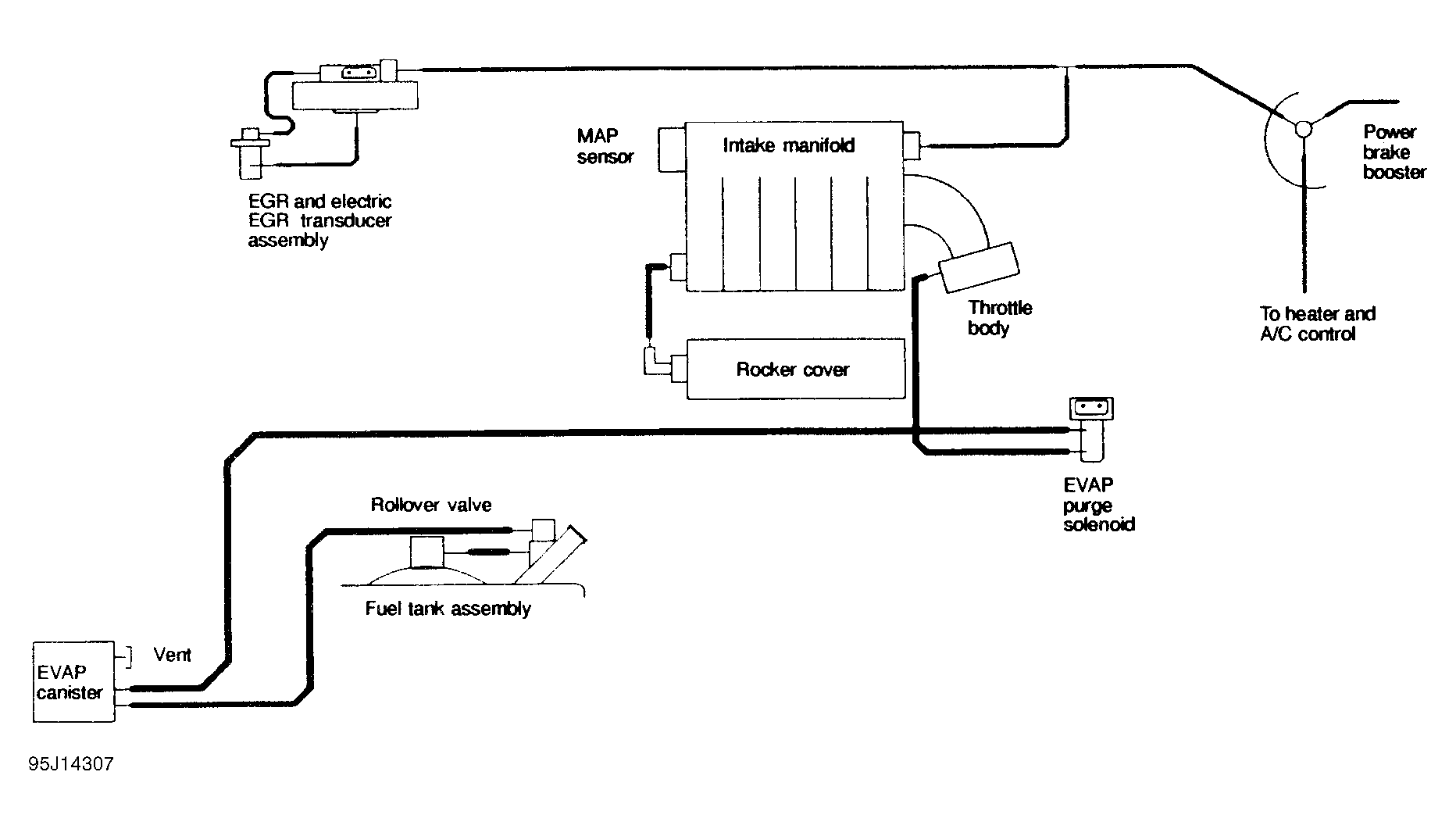

Fig 1: Vacuum Hose Routing (2.5L V6 - Avenger & Sebring)

G95J14307

Courtesy of CHRYSLER CORP.

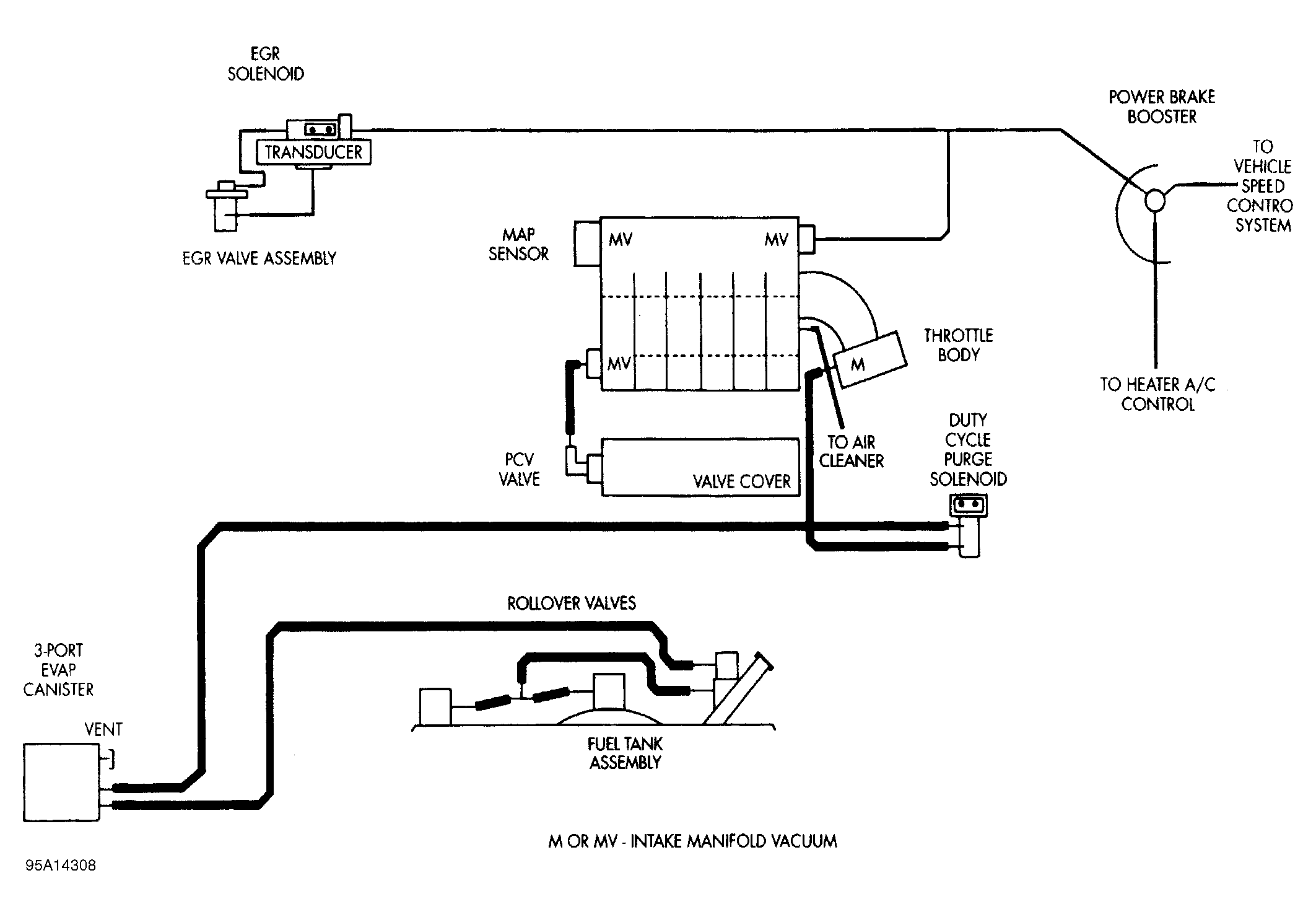

Fig 2: Vacuum Hose Routing (2.5L V6 - Cirrus & Stratus)

G95A14308

Courtesy of CHRYSLER CORP.
