Vacuum Hose Diagram(S)

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in appropriate BASIC TESTING - 2.0L & 2.4L article. This will assist in identifying improperly routed vacuum hoses which may cause driveability and/or computer-indicated malfunctions.

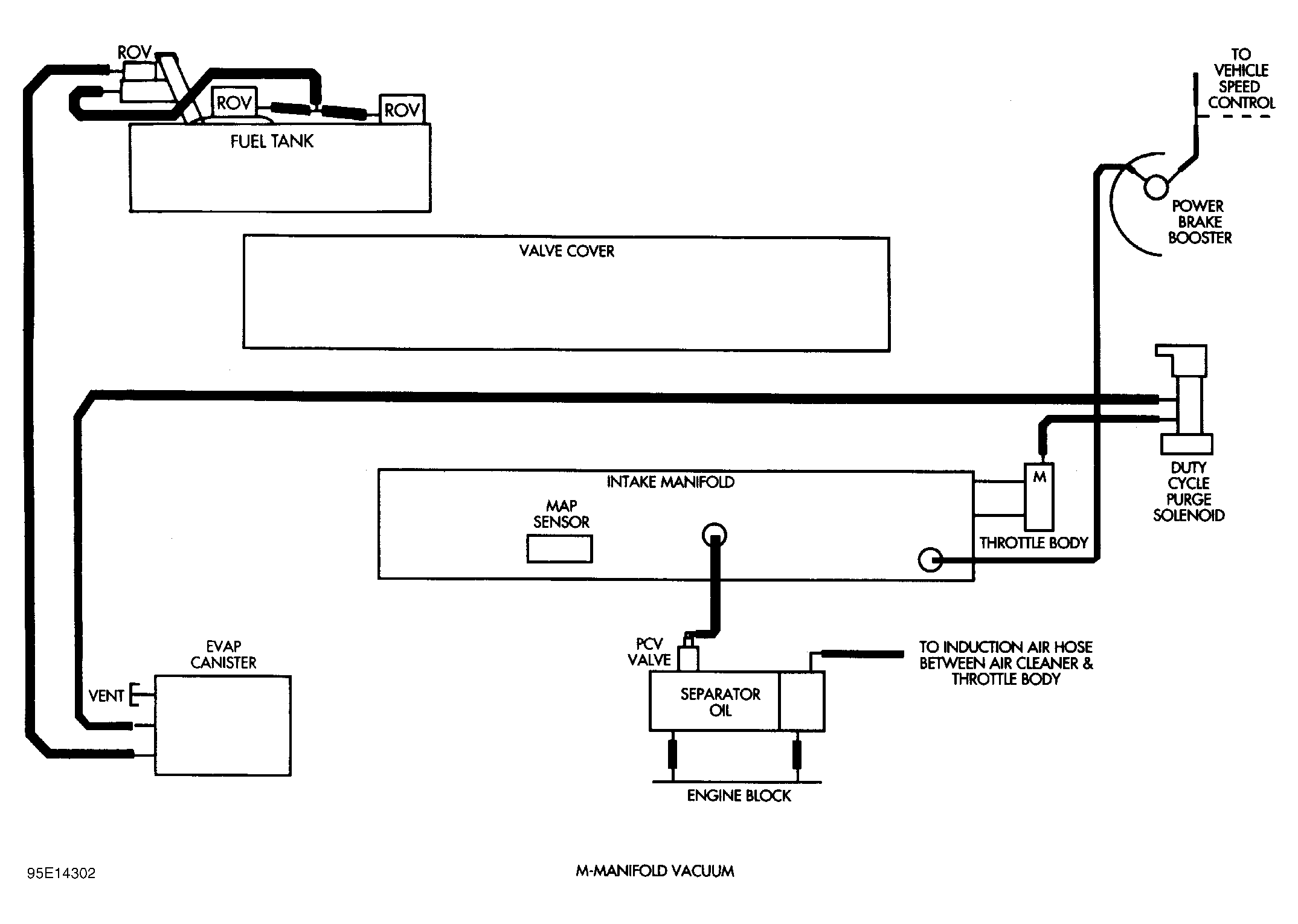

Fig 1: Vacuum Hose Routing (2.0L - Avenger, Sebring & Talon Non-Turbo)

Courtesy of CHRYSLER CORP.

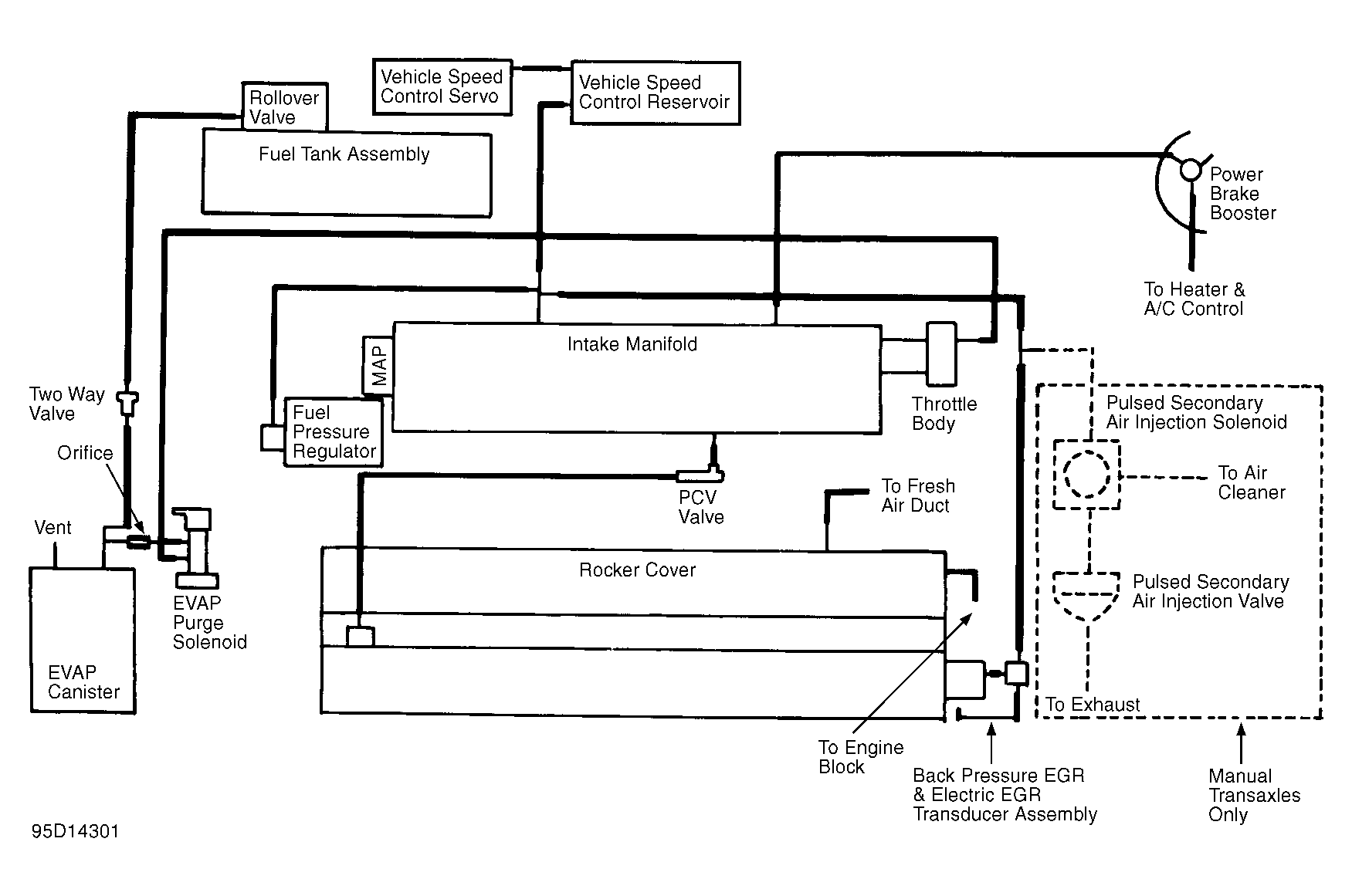

Fig 2: Vacuum Hose Routing (2.0L - Cirrus & Stratus)

Courtesy of CHRYSLER CORP.

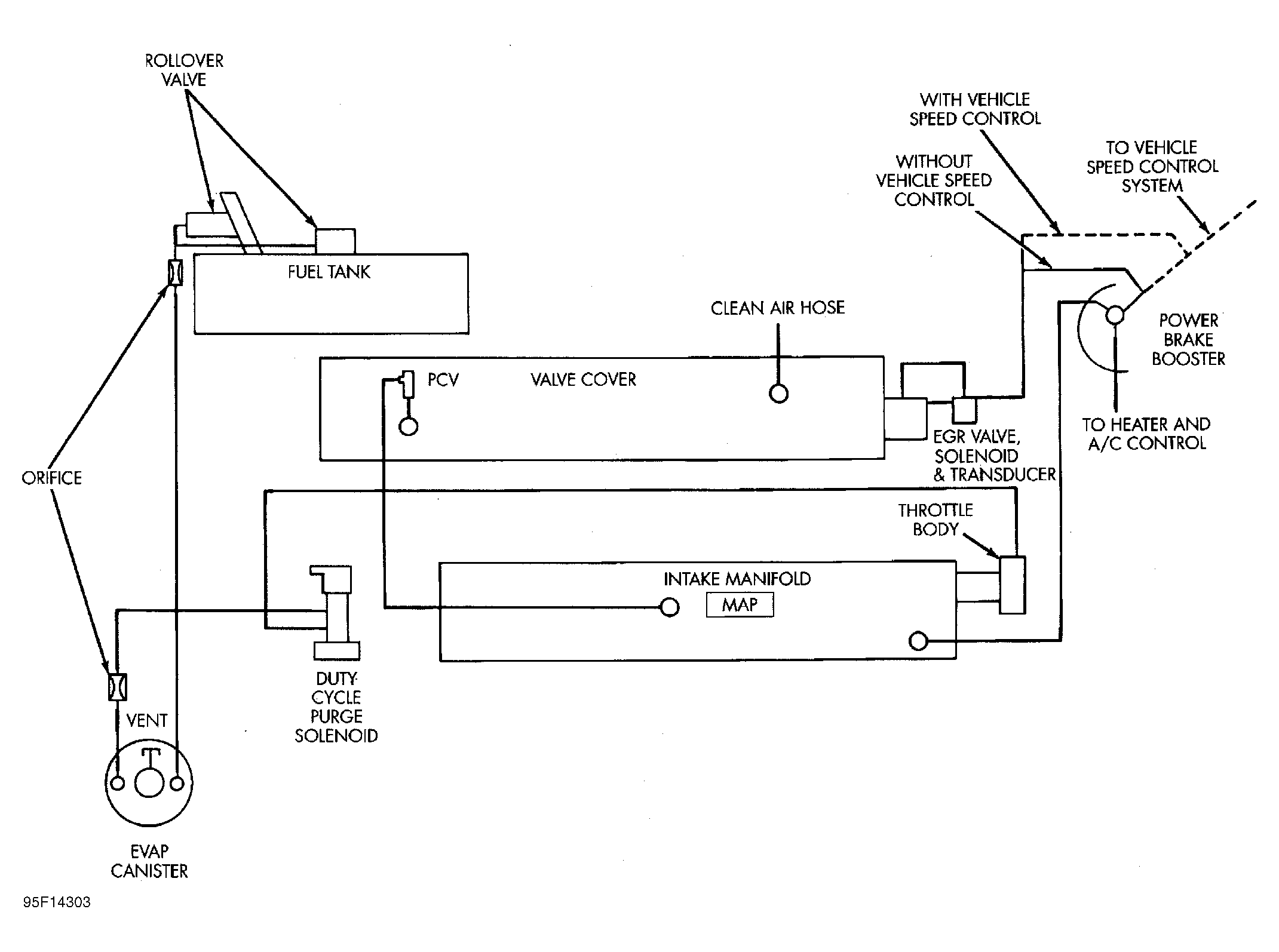

Fig 3: Vacuum Hose Routing (2.0L - Neon DOHC)

Courtesy of CHRYSLER CORP.

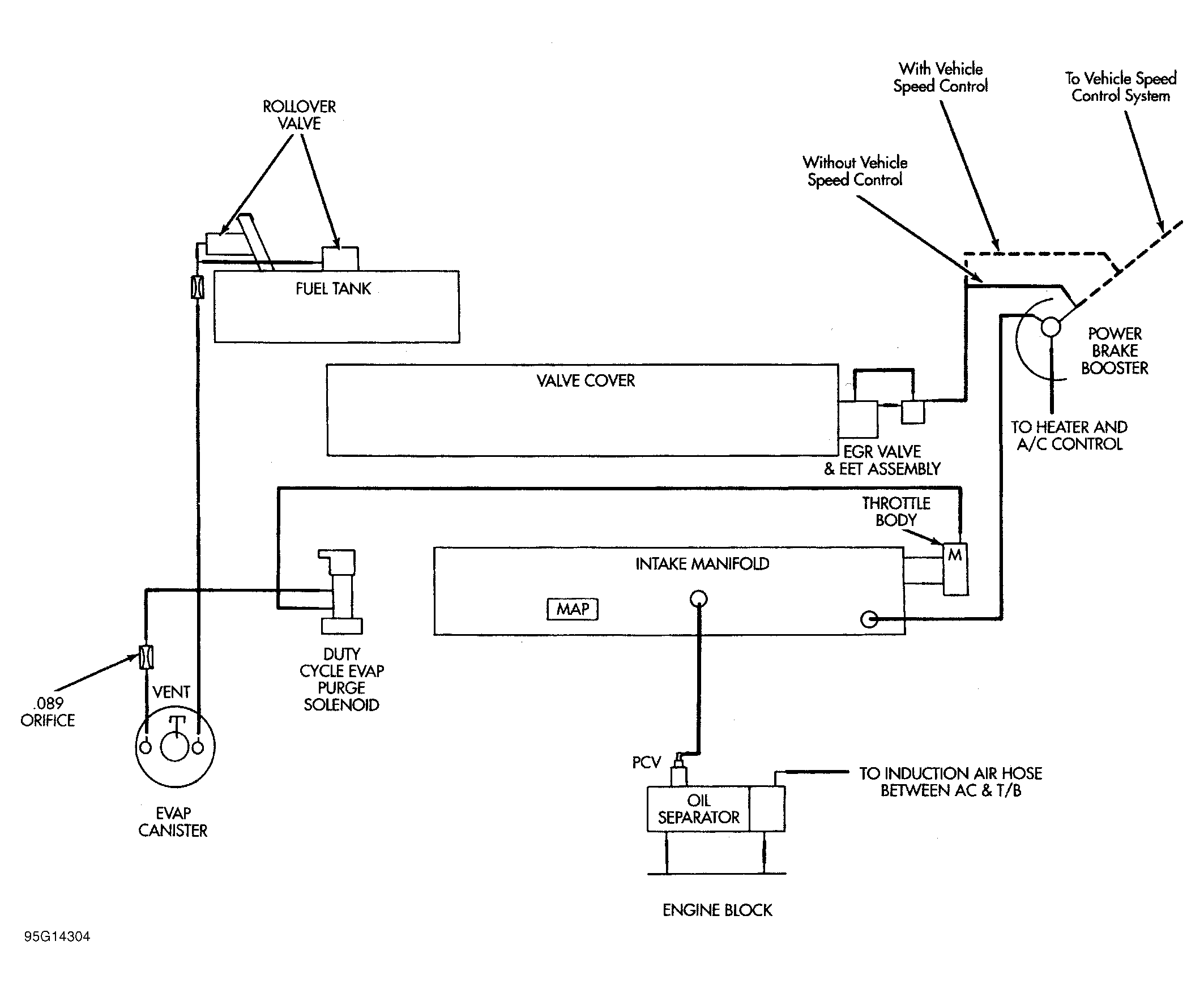

Fig 4: Vacuum Hose Routing (2.0L - Neon SOHC)

Courtesy of CHRYSLER CORP.

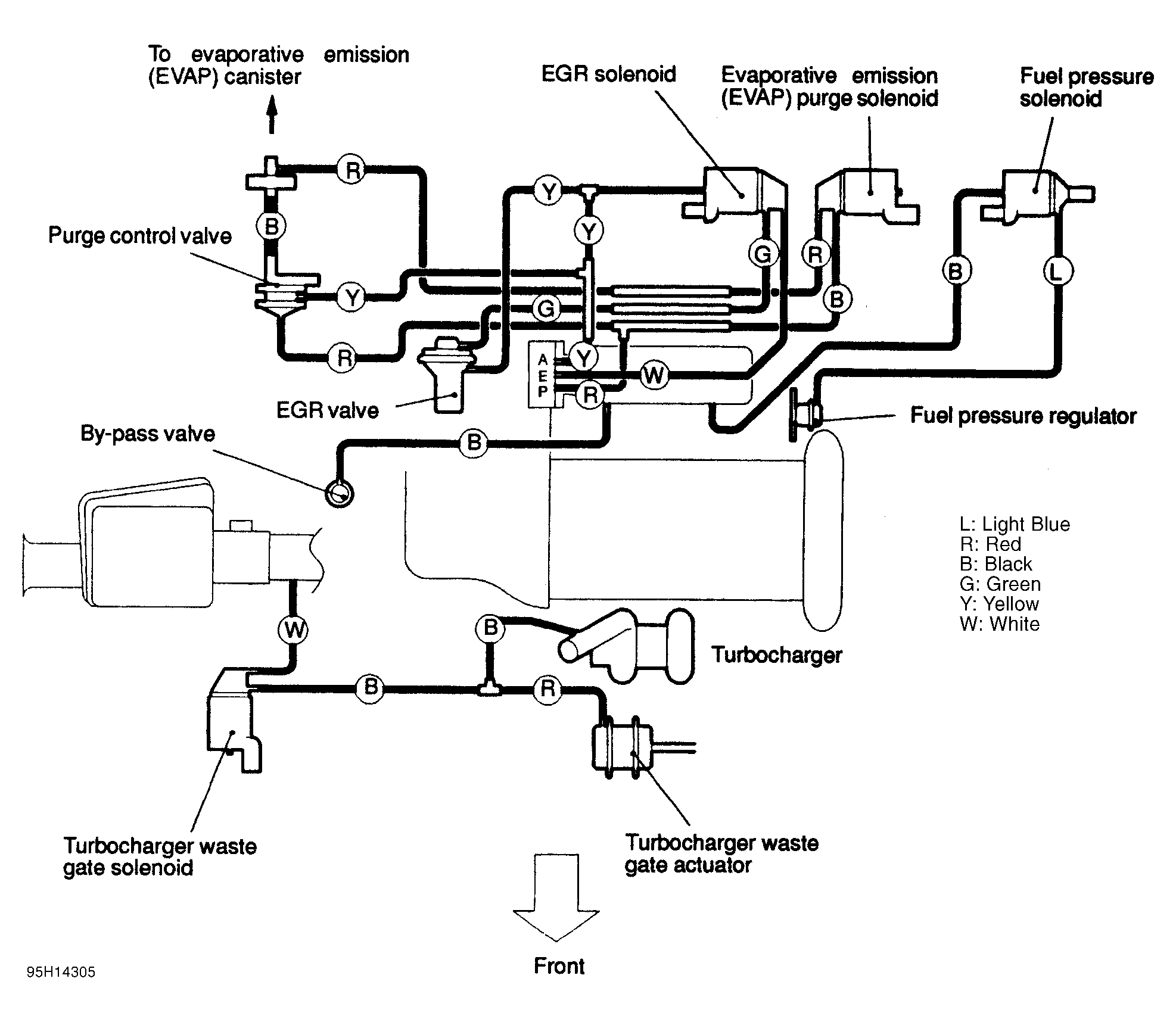

Fig 5: Vacuum Hose Routing (2.0L - Talon Turbo)

Courtesy of CHRYSLER CORP.

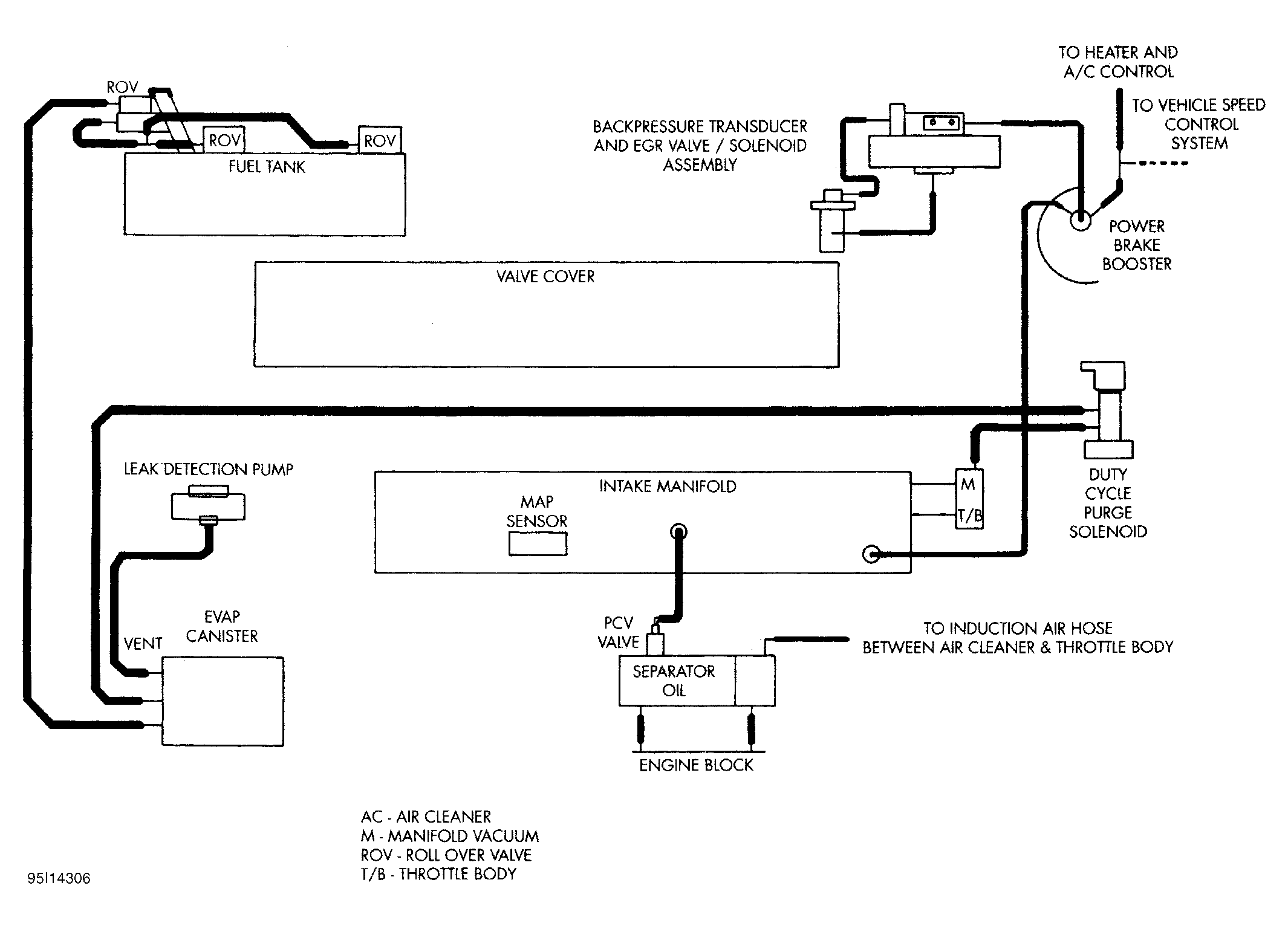

Fig 6: Vacuum Hose Routing (2.4L)

Courtesy of CHRYSLER CORP.
