Removal & Installation

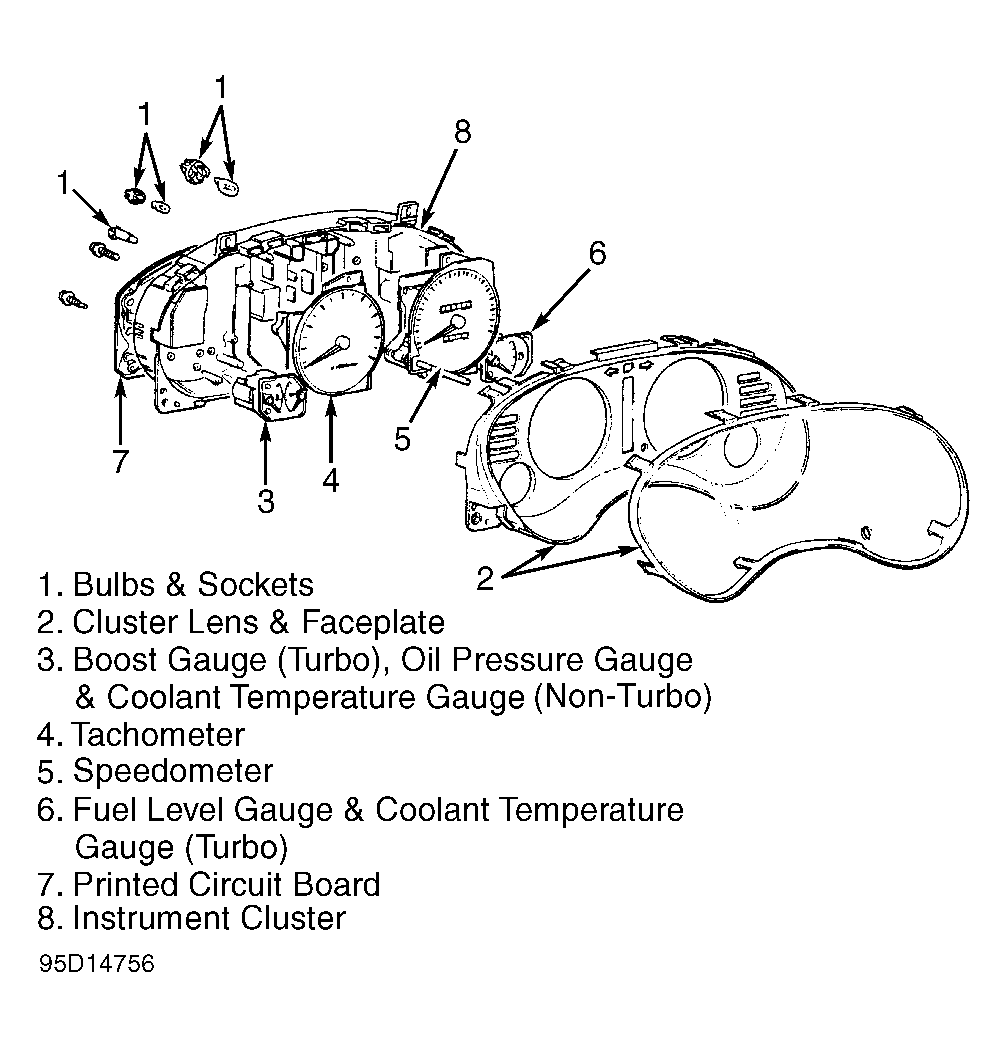

- Remove screws, and pull out bezel and instrument cluster assembly. Remove sockets and bulbs. Remove cluster lens and faceplate by depressing retaining tabs on housing and separating both from cluster housing. See Fig 1 .
- Remove gauge(s) retaining nuts from printed circuit board. Remove gauge(s) from cluster housing. To install, reverse removal procedure.
