Parking Brake Switch

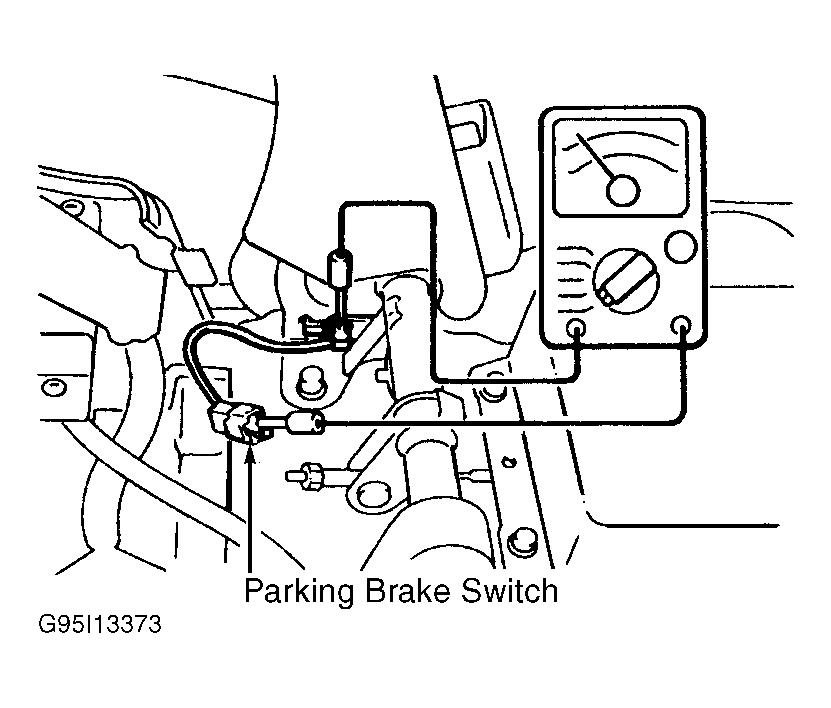

Disconnect parking brake switch connector. See Fig 1. Connect ohmmeter between switch and switch installation bolt. When parking brakes are applied, continuity should exist. When parking brakes are not applied, continuity should not exist. If continuity is not as specified, replace parking brake switch.
