Ignition Lock Cylinder: Removal
- Disconnect negative battery cable. Remove hood release handle. Remove knee protector. Remove upper and lower steering column covers. Remove ignition key light.

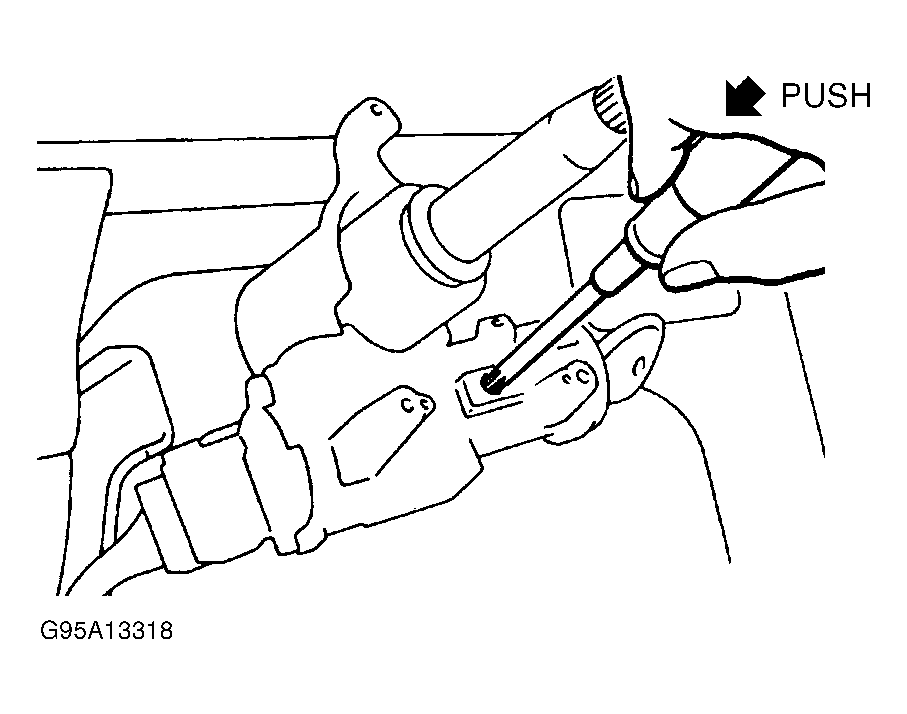

- Insert ignition key. Rotate switch to ACC position. Using a small punch or similar tool, push in lock pin. See Figure . Pull lock cylinder from housing.
