Oil Pressure

Normal oil pressure is 5 psi (.35 kg/cm2 ) at curb idle and 30-80 psi (2.1-5.5 kg/cm2 ) at 3000 RPM.

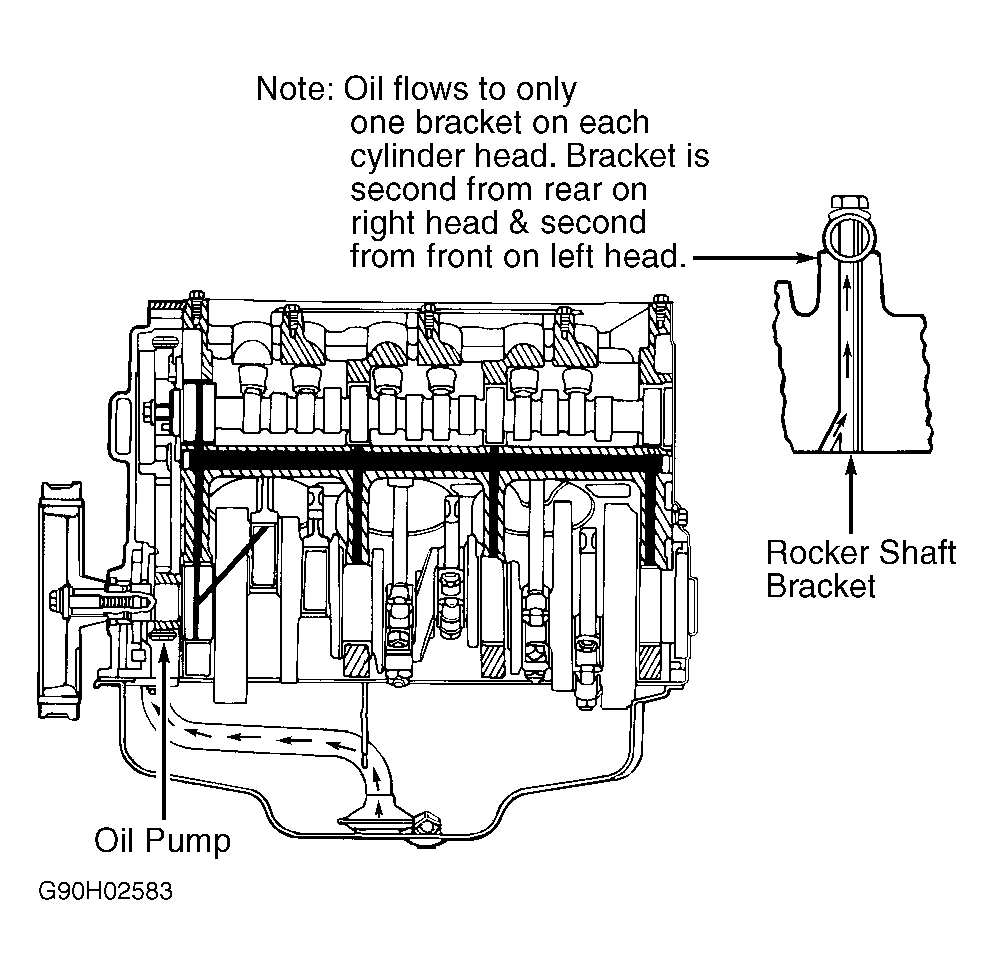

Fig 1: Cross-Sectional View Of Engine Oiling System
G90H02583Courtesy of CHRYSLER CORP.
