Wiring Diagrams

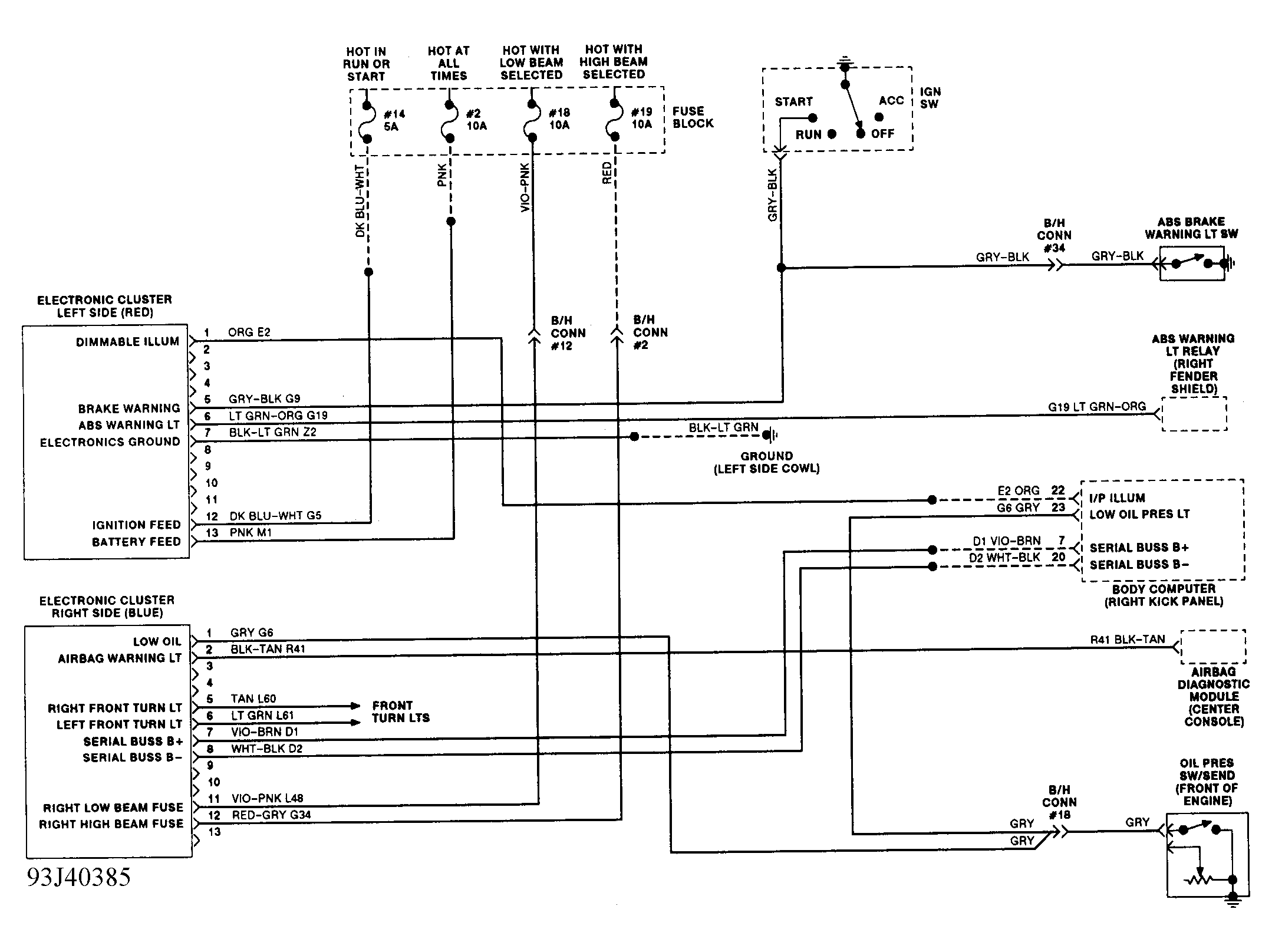

Fig 1: Instrument Panel Schematic (Fifth Avenue, Imperial & New Yorker)

Courtesy of CHRYSLER CORP.

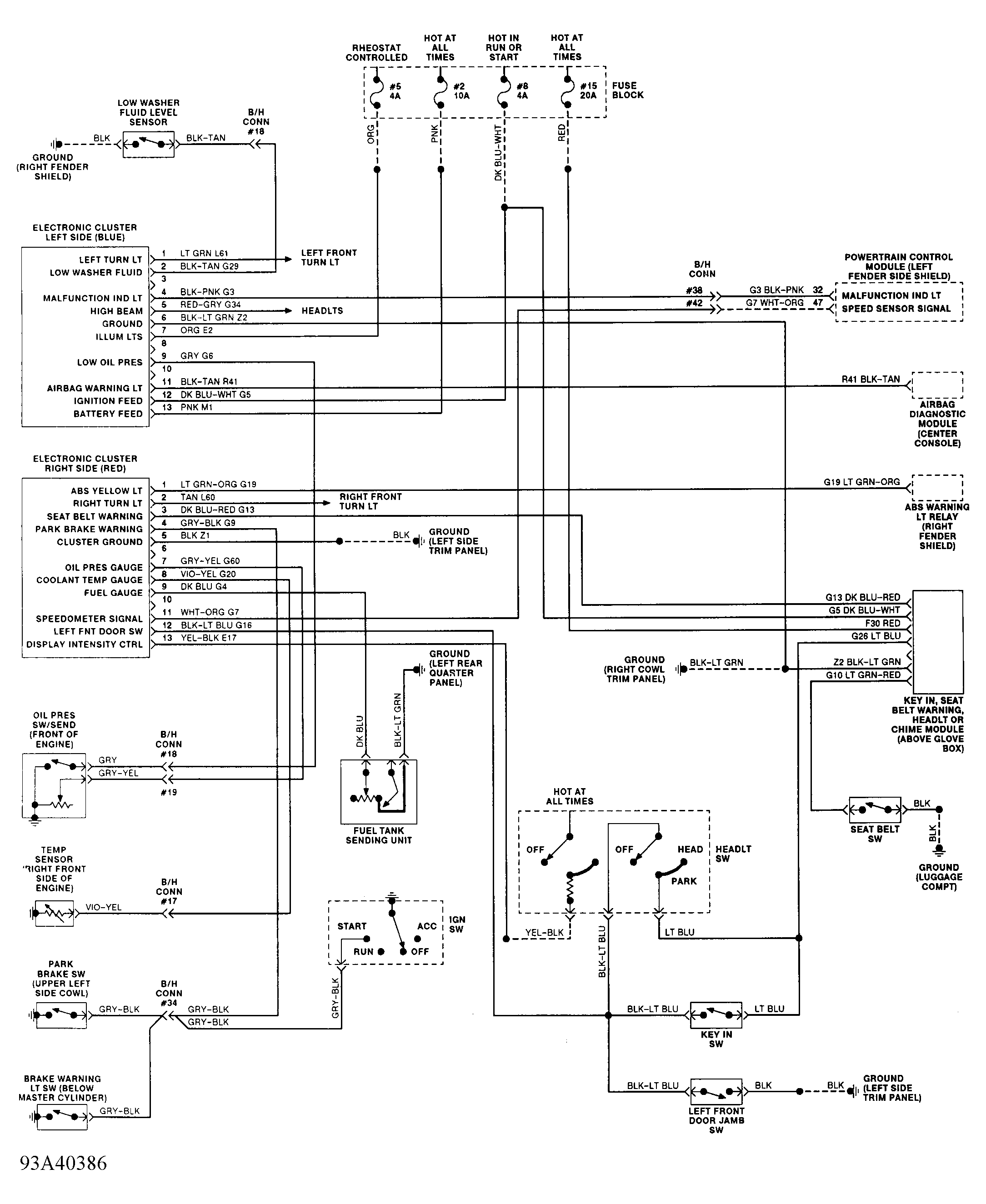

Fig 2: Instrument Panel Schematic (LeBaron Convertible/Coupe)

Courtesy of CHRYSLER CORP.

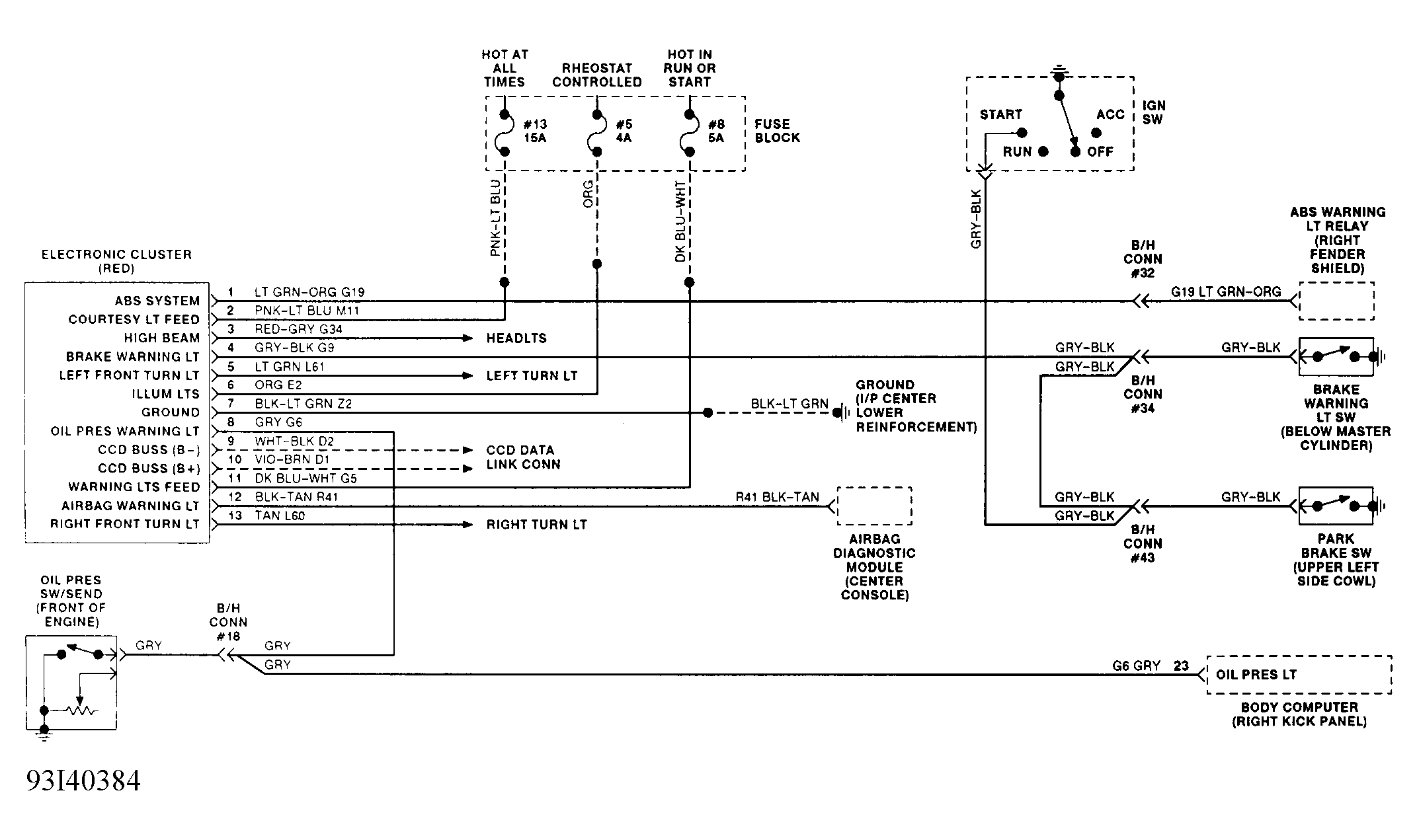

Fig 3: Instrument Panel Schematic (LeBaron Sedan)

Courtesy of CHRYSLER CORP.
