Instrument Cluster Bulbs R & I

Instrument cluster may require removal for bulb replacement. Bulbs can be replaced by removing bulb from rear of instrument cluster. Note bulb identification. See Fig 1 .

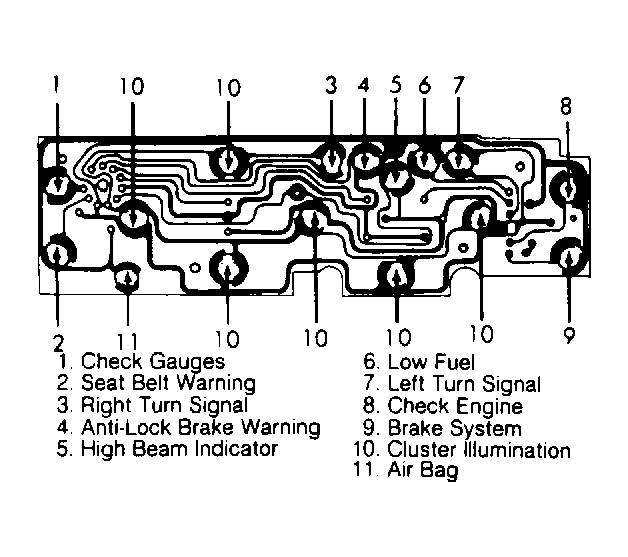

Fig 1: Instrument Cluster Bulb Identification

Courtesy of CHRYSLER MOTORS.
