Engine Coolant Temperature

Engine coolant temperature display should only be lighted within normal operating temperature range. If a high coolant temperature exists, the CHECK GAUGES light will activate and the temperature symbol will flash.

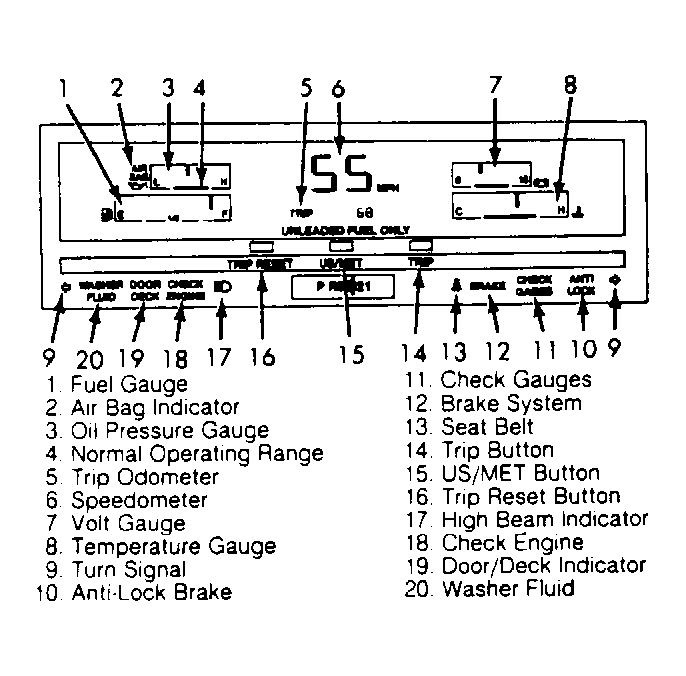

Fig 1: Instrument Cluster
G90D13519Courtesy of CHRYSLER MOTORS.
