Engine Oiling System Description

Oil pressure is provided by a gear-type pump driven by the counterbalance shaft chain. Pressure relief valve is located in the oil pump body.

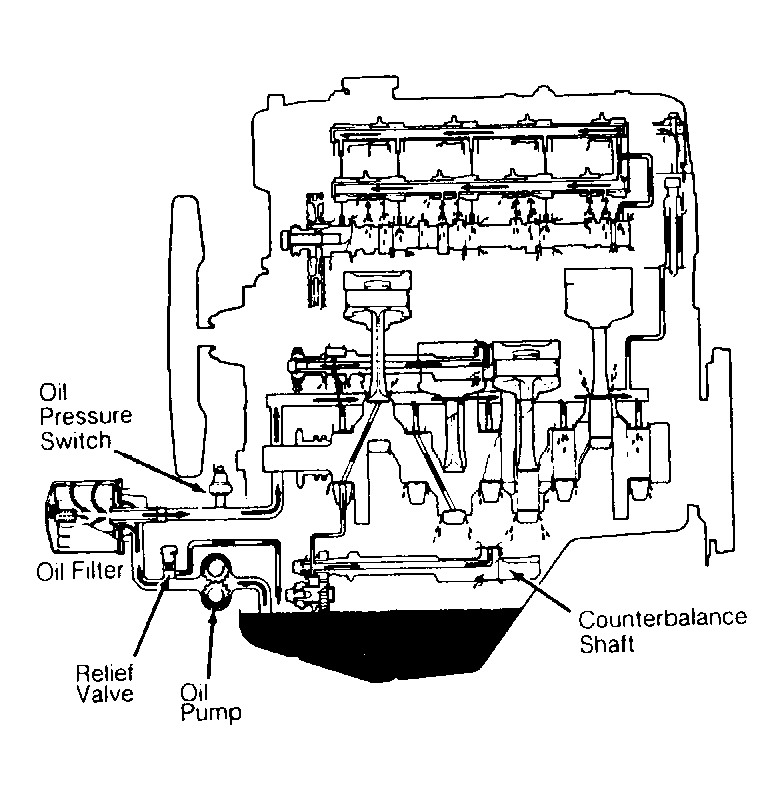

Fig 1: Engine Oiling Circuit (2.6L Non-Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.

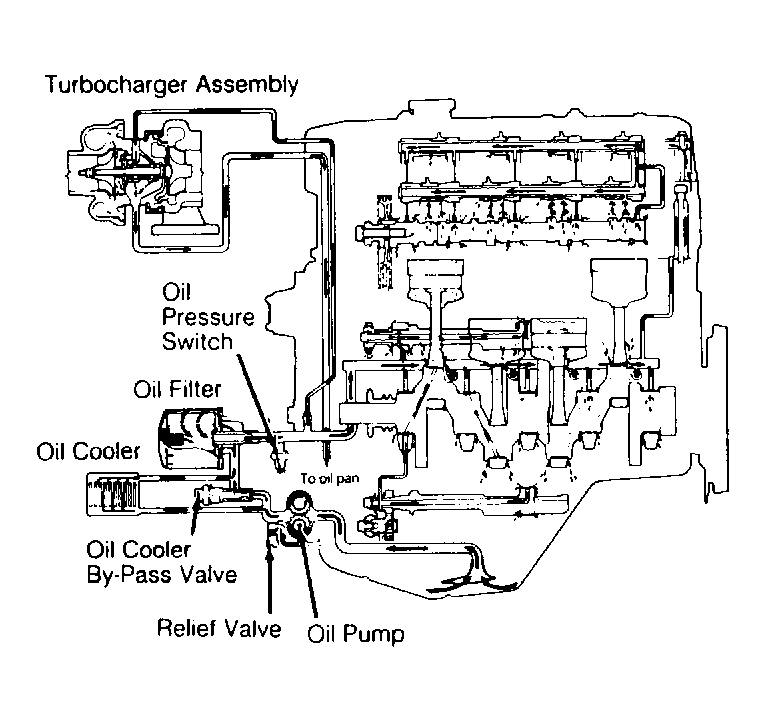

Fig 2: Engine Oiling Circuit (2.6L Turbo)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.
