Lock Cylinder

WARNING: This page is about a different car, the 1986 Plymouth Horizon and 1986 Dodge Omni. However, it is still accessible from the selected car via links, so may be relevant.

Key can be removed only in "LOCK" position with ignition OFF" and transmission engaged (automatic transmission in "PARK" position, manual transmission in "REVERSE") position. Steering wheel will be locked or will lock immediately when wheel is turned.

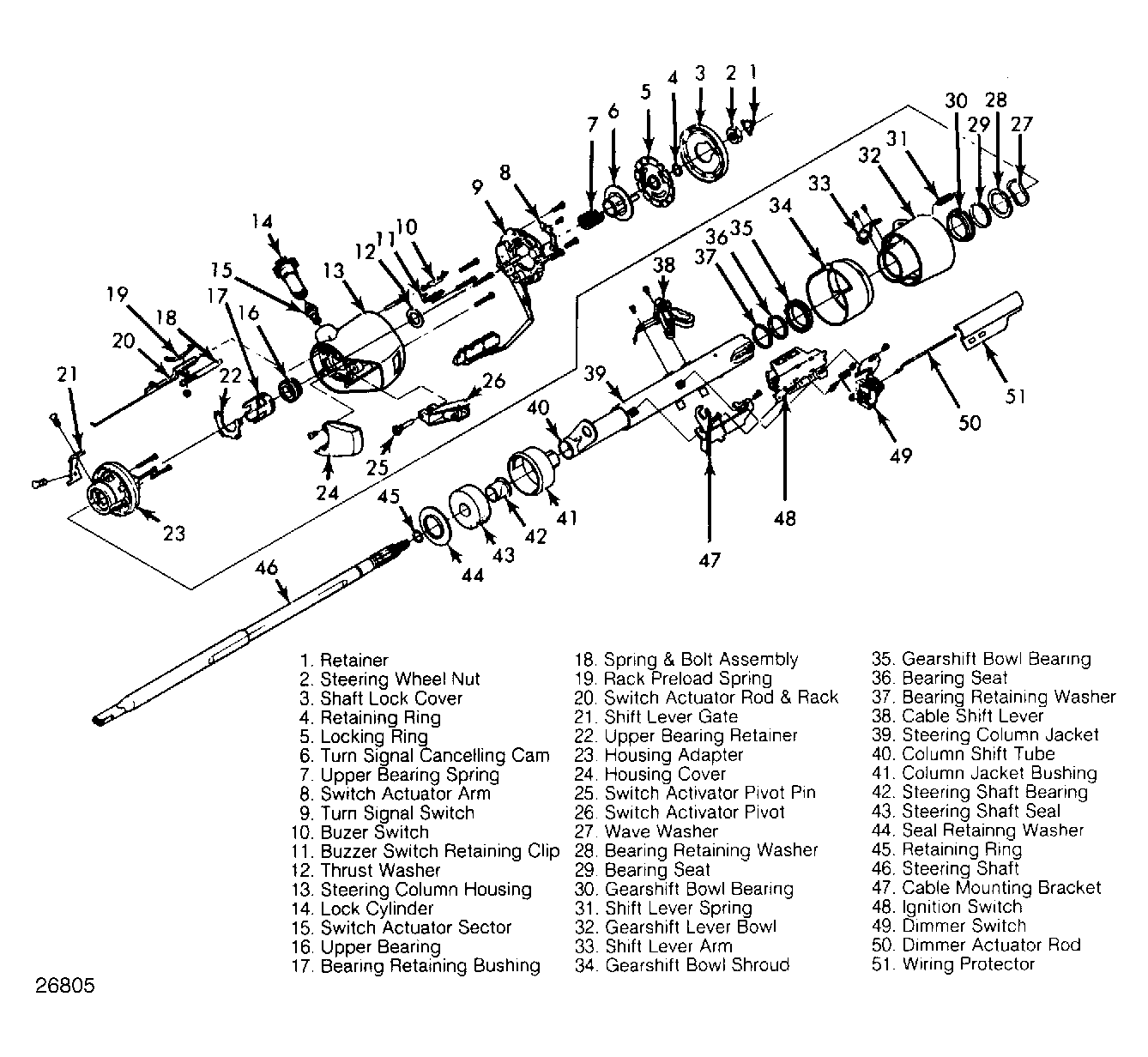

Fig 1: Typical Steering Column Locking Mechanism
G26805
