All FWD Models

Remove temperature gauge or temperature/oil pressure gauge assembly. Check for continuity in wire between temperature sensor and temperature sensor input pin. Check for battery voltage at positive (B+) pin and ground pin.

Fig 1: Temperature Gauge Circuit Test Aries, LeBaron, Reliant & 600

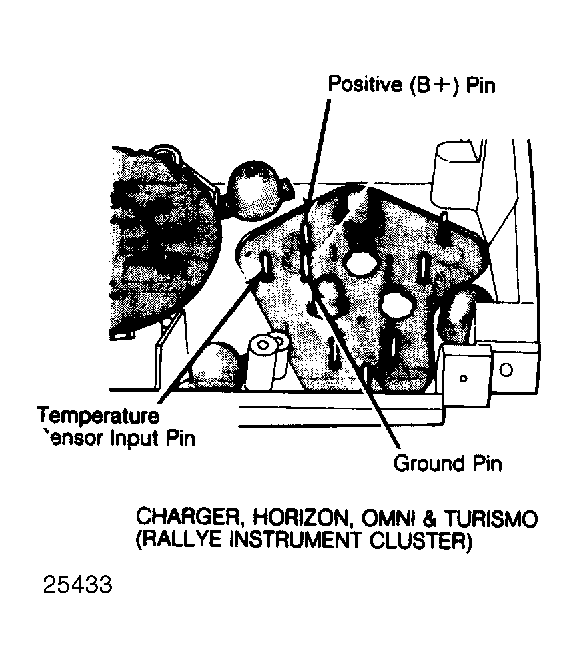

Fig 2: Temperature Gauge Circuit Test Charger, Horizon, Omni & Turismo

Fig 3: Temperature Gauge Circuit Test Daytona & Laser

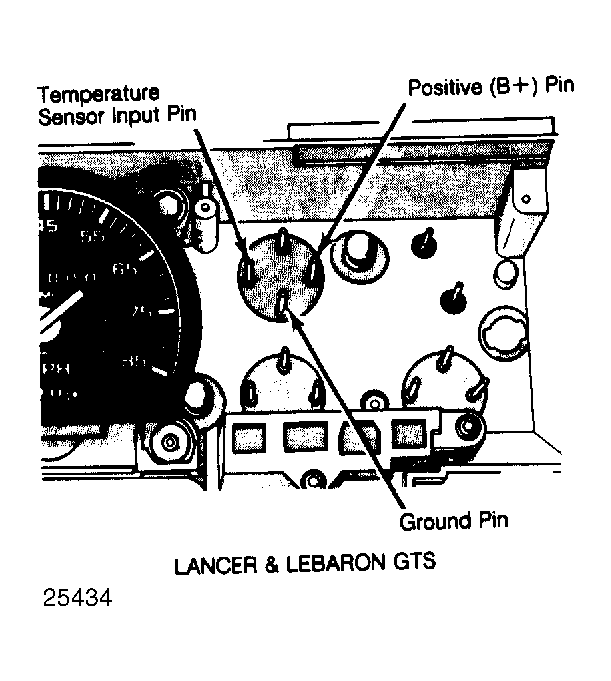

Fig 4: Temperature Gauge Circuit Test Lancer & LeBaron
