"All Monitored Systems Are Functioning" Circuit

This message should be heard when low oil pressure, high temperature, or electrical system warning message has been heard and the unsatisfactory condition ceases to exist for at least 5 seconds. Message should also be heard when unsatisfactory door ajar, brake, or low fuel conditions no longer exist.

Fig 1: Fuel Gauge Circuit Test Charger, Horizon, Omni & Turismo (Standard Instrument Cluster)

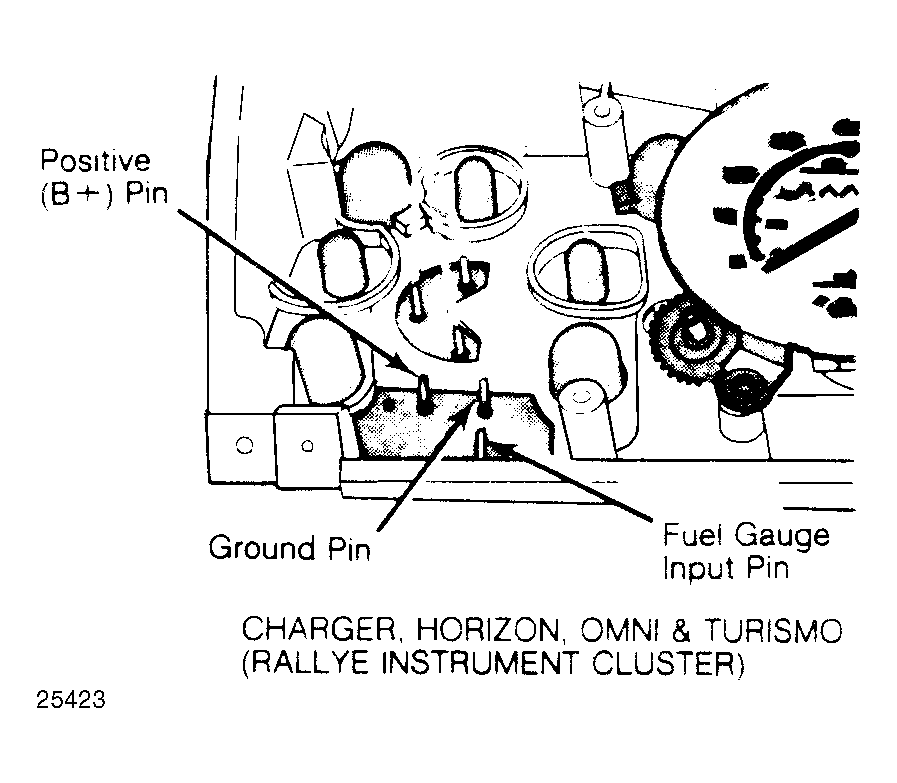

Fig 2: Fuel Gauge Circuit Test Charger, Horizon, Omni & Turismo (Rallye Instrument Cluster)

Fig 3: Fuel Gauge Circuit Test Aries, LeBaron, Reliant & 600

Fig 4: Fuel Gauge Circuit Test Daytona & Laser

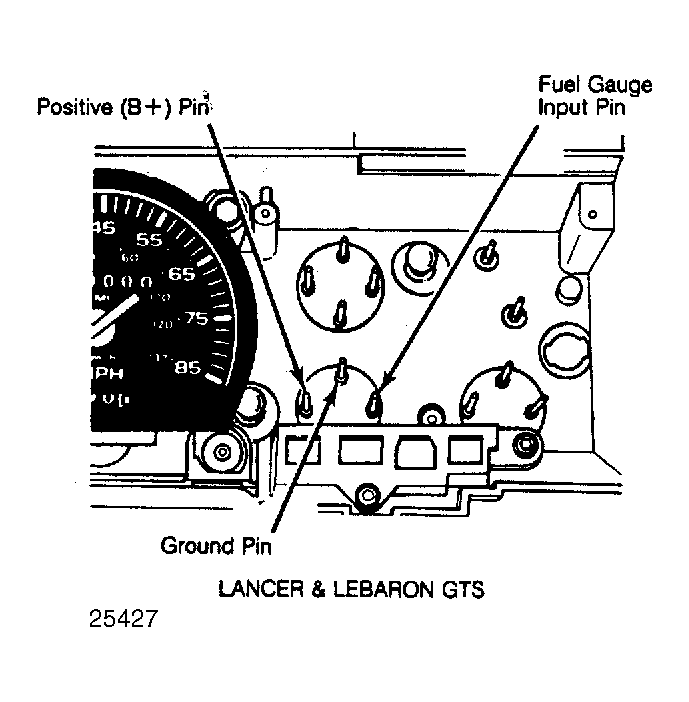

Fig 5: Fuel Gauge Circuit Test Lancer & LeBaron GTS
