Instrument Panel - Electronic: Wiring Diagram

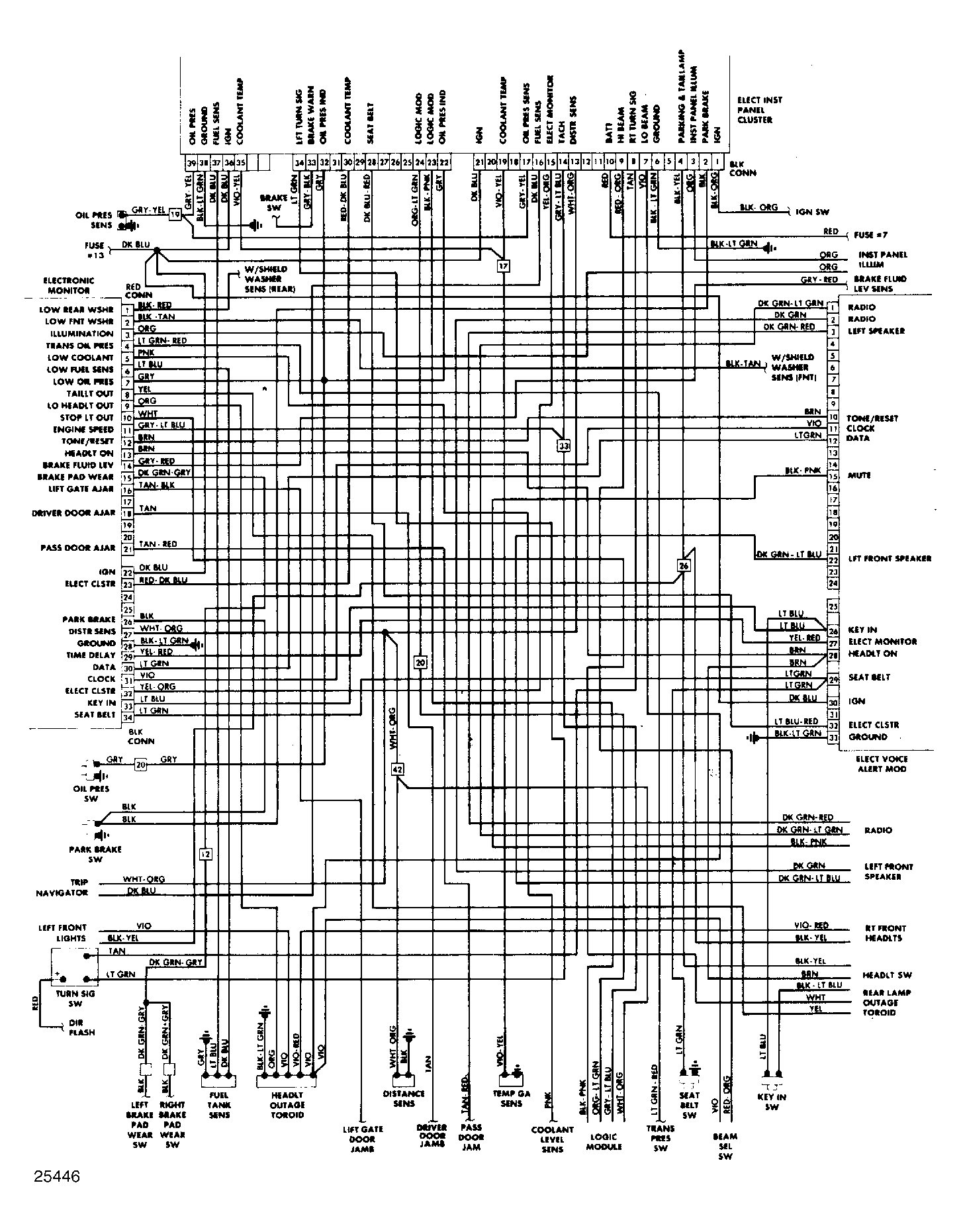

Fig 1: Daytona Turbo Z, Laser XE & Laser XT Electronic Instrument Cluster Schematic (Without Voice Alert)

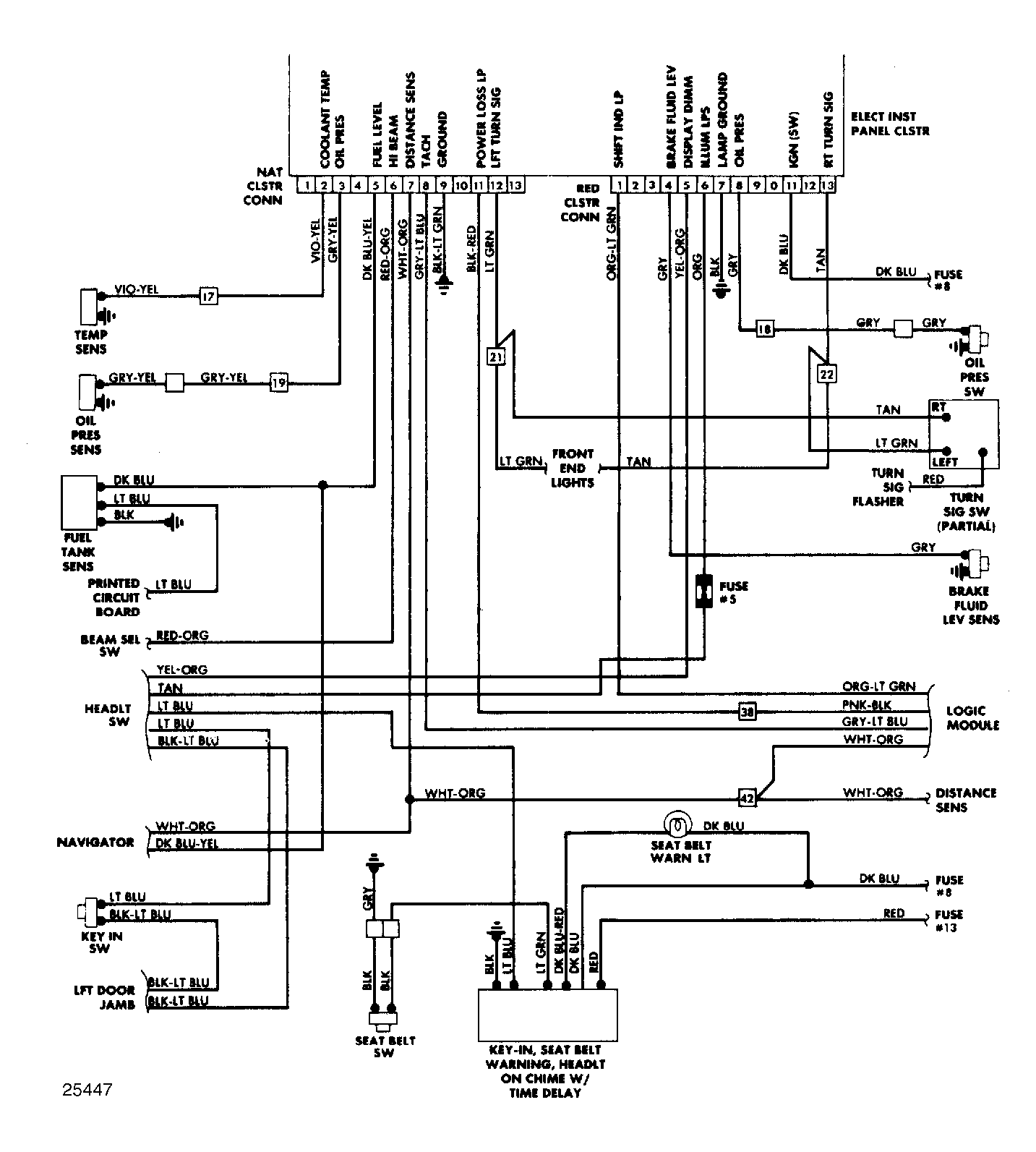

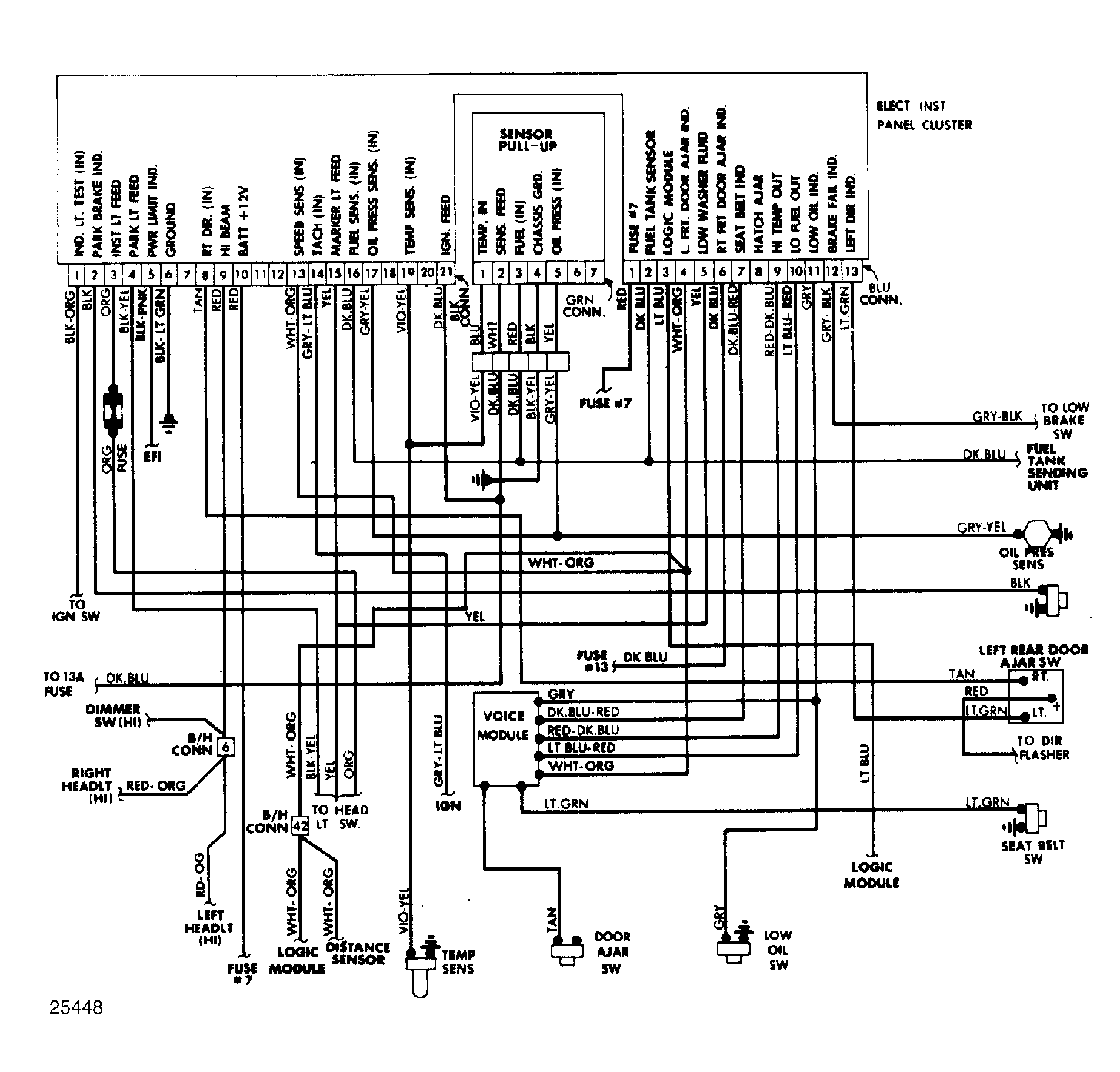

Fig 2: Daytona Turbo Z, Laser XE & Laser XT Electronic Instrument Cluster Schematic (With Voice Alert)

Fig 3: Lancer & LeBaron GTS Electronic Instrument Cluster Schematic (Without Voice Alert)

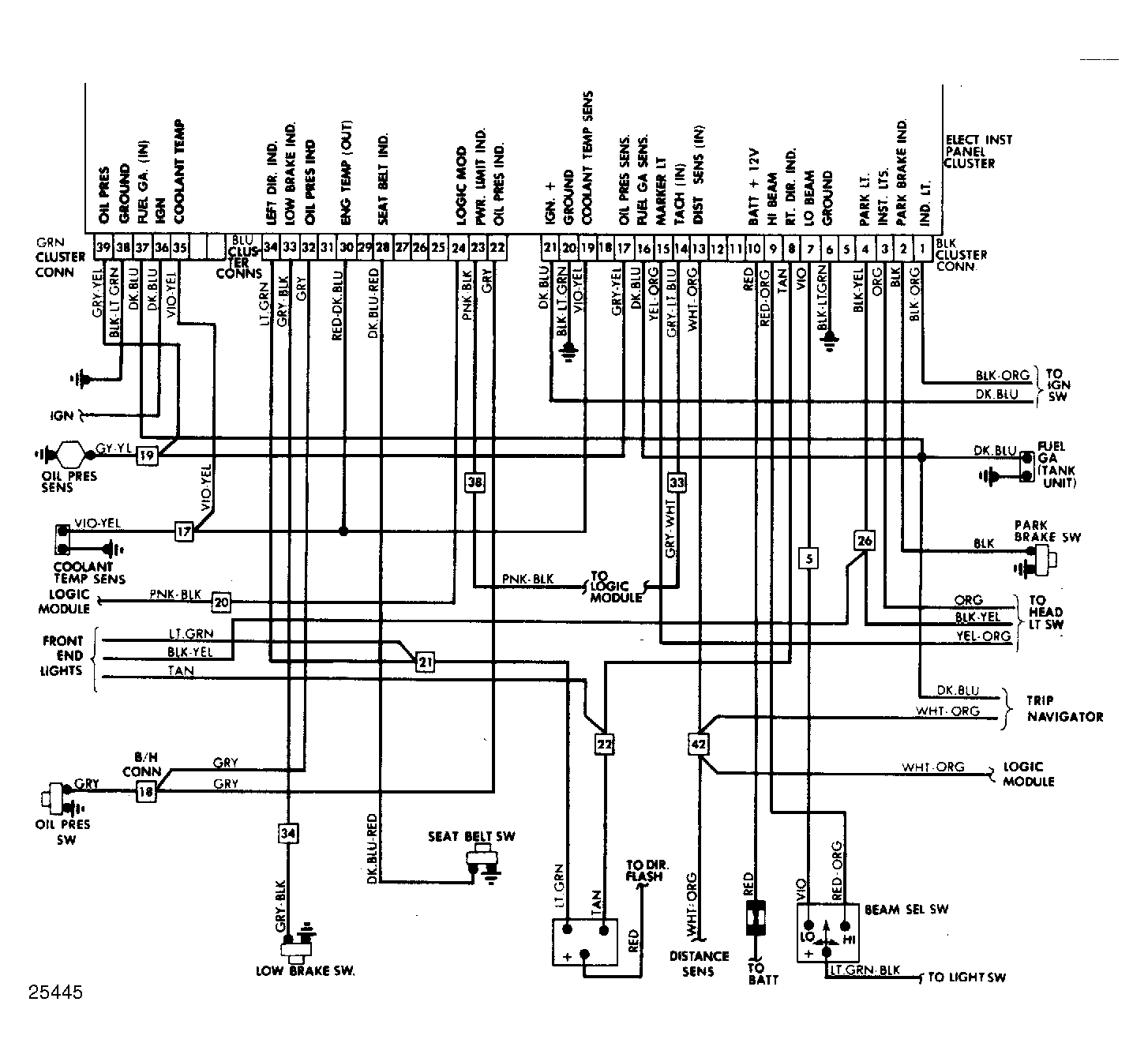

Fig 4: Executive, LeBaron, New Yorker, Town & Country and 600 ES Turbo Electronic Instrument Cluster Schematic
