Engine Coolant Temperature

Engine coolant temperature display should only be lighted on a level with, or below, brackets. If display upper segment lights up, temperature symbol will flash on and off. "ENGINE" warning light, if used, will also come on.

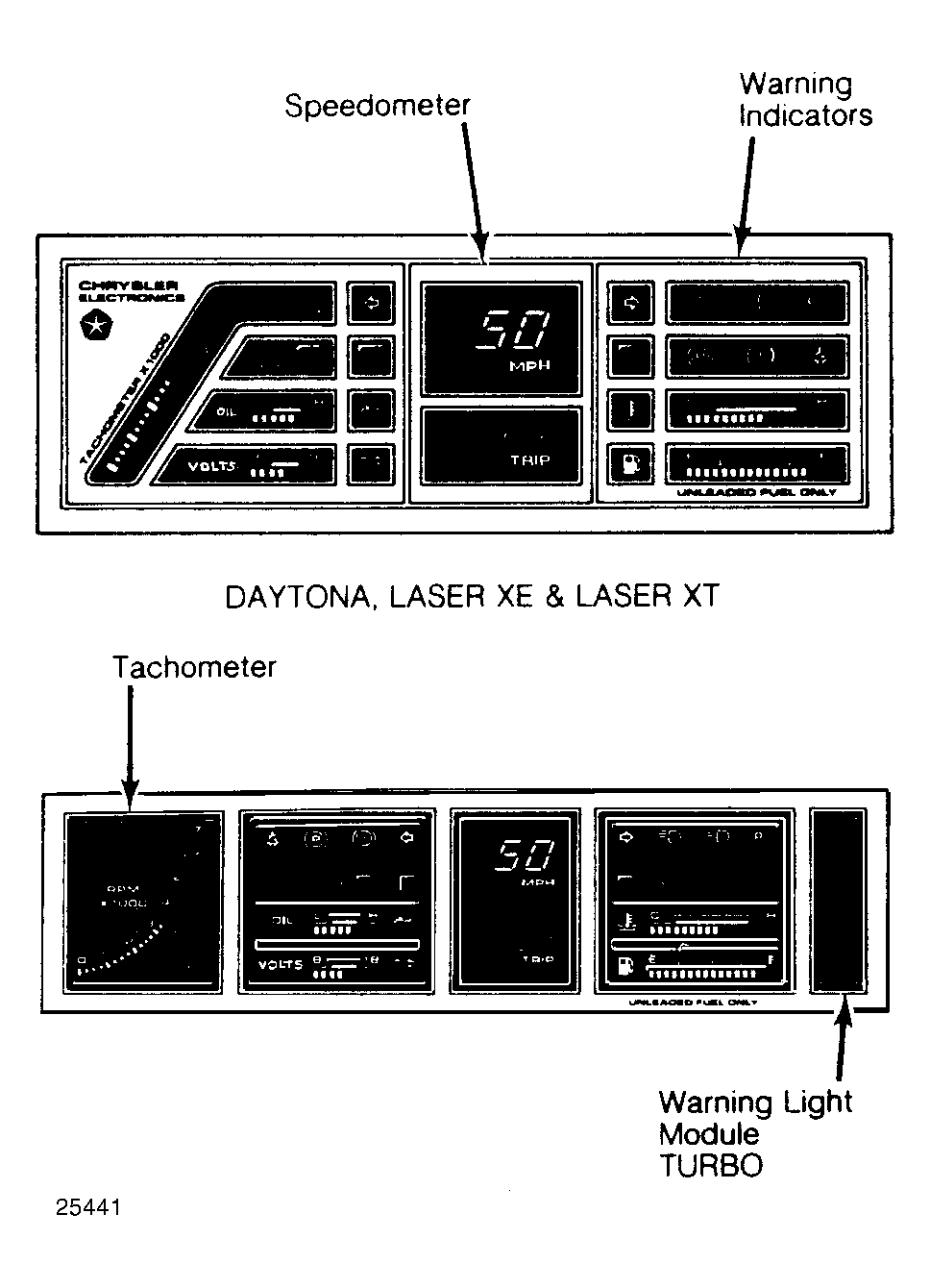

Fig 1: Daytona Turbo Z, Laser XE, Laser XT & 600 ES Turbo Electronic Instrument Clusters
