Elapsed Time "ET"

This display will indicate up to 99 hours and 59 minutes of "ignition-on" time. The timer stops when ignition is turned off, and then continues to accumulate time when ignition is turned on. For the first hour after reset, the display will show minutes and seconds, then it will switch to hours and minutes.

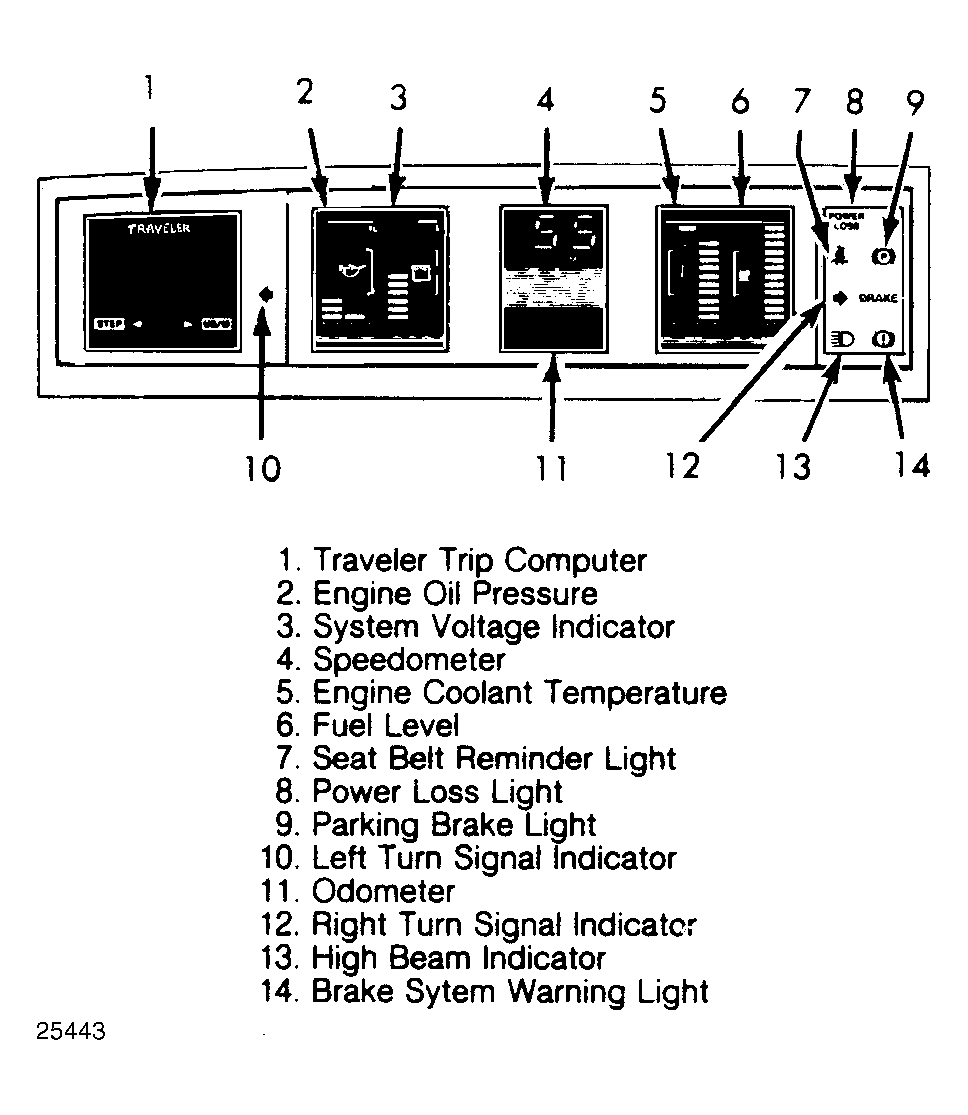

Fig 1: Executive, LeBaron, New Yorker and Town & Country Electronic Instrument Cluster
G25443
