Aries, E Class, LeBaron, New Yorker, Reliant & 600

Six buttons are used to obtain information from the navigator. One button is used to reset trip odometer, average speed and fuel economy information. Three small buttons at left of switch module are used to set clock and date information and U.S./Metric conversion. Accumulated information can be viewed without having ignition on. Circuits in computer are active when "TIME" button is pressed.

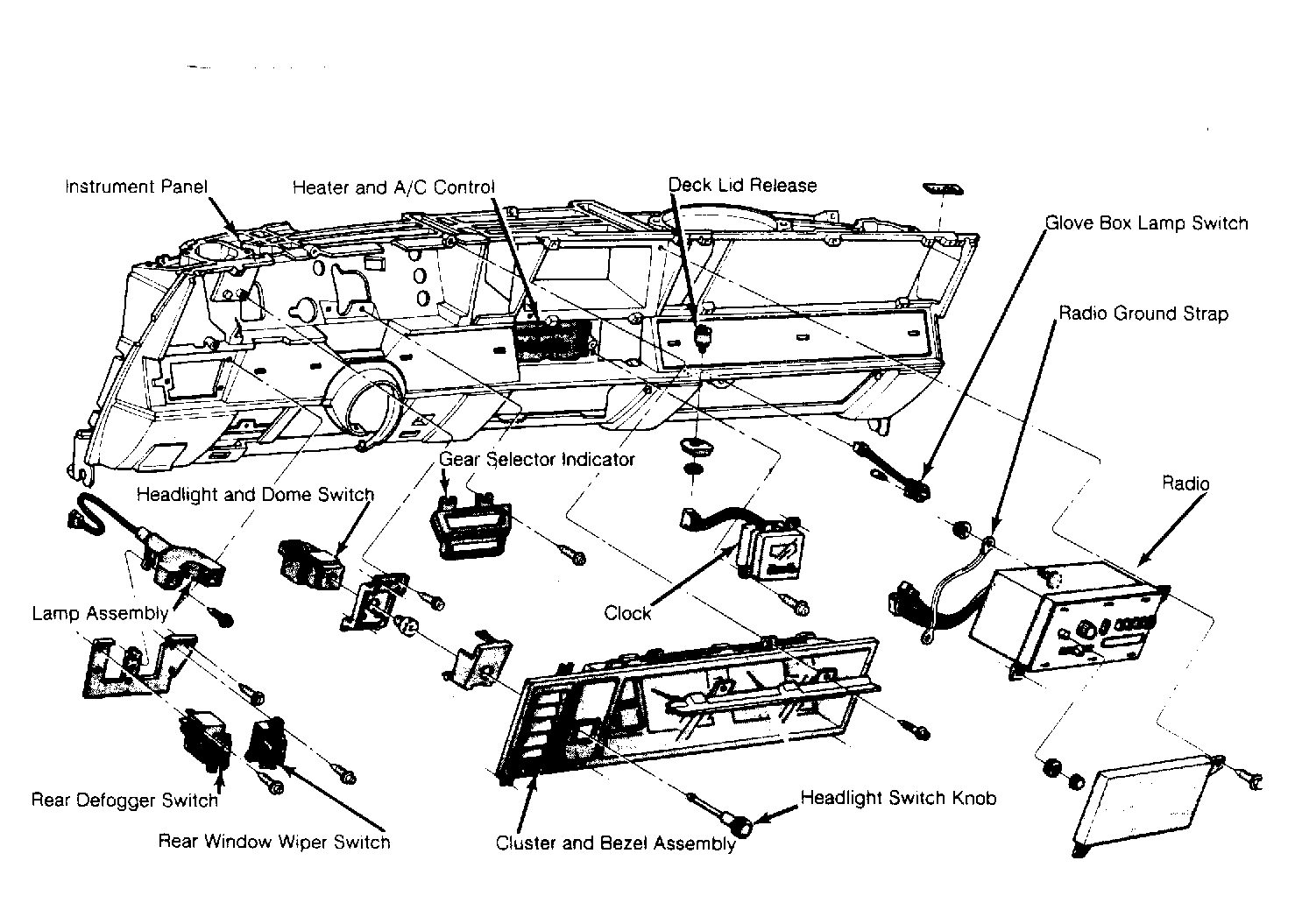

Fig 1: Aries, E Class, LeBaron, New Yorker, Reliant and 600 Instrument Panel Assembly Some models may vary slightly.
G3755
