All Rear Wheel Drive Models

  1. Loosen switch assembly screw. Press brake pedal down and release. Place a .130" (3.3 mm) spacer gauge against pedal-to-switch surface.
    NOTE: DO NOT  pull brake pedal back at any time.
  2. Press switch against spacer until plunger is fully depressed. Tighten switch mounting screw, remove spacer and check switch operation.

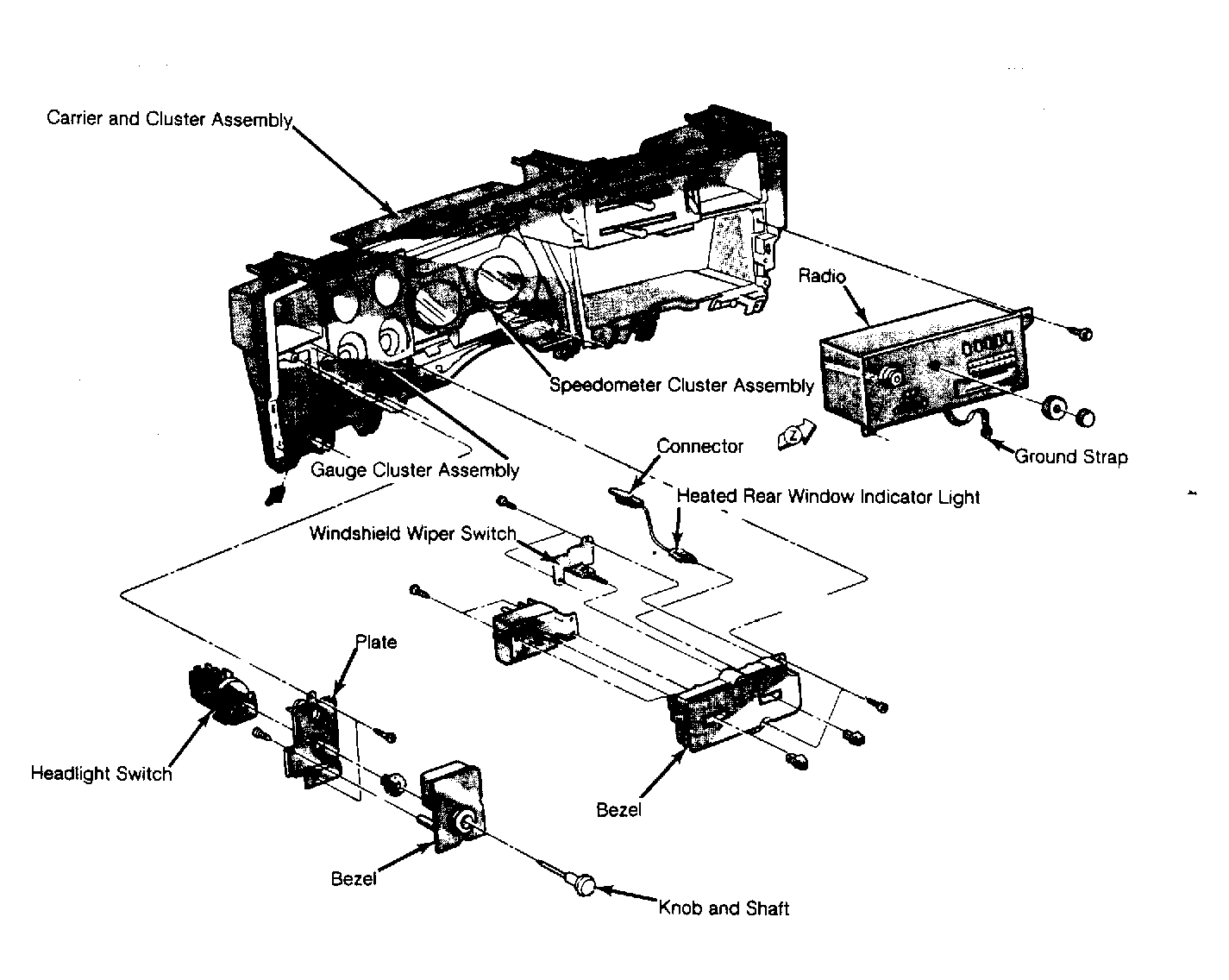

Fig 1: Diplomat, Gran Fury & New Yorker (RWD) Instrument Panel
G970
