Rear Axle Assembly

Raise car and support body at front of rear springs, then block brake pedal up and remove rear wheels and disconnect brake line at wheel cylinder. Disconnect parking brake cables, scribe mark propeller shaft and yoke for installation, and remove spring U-bolts and shock absorbers. Remove rear axle assembly.

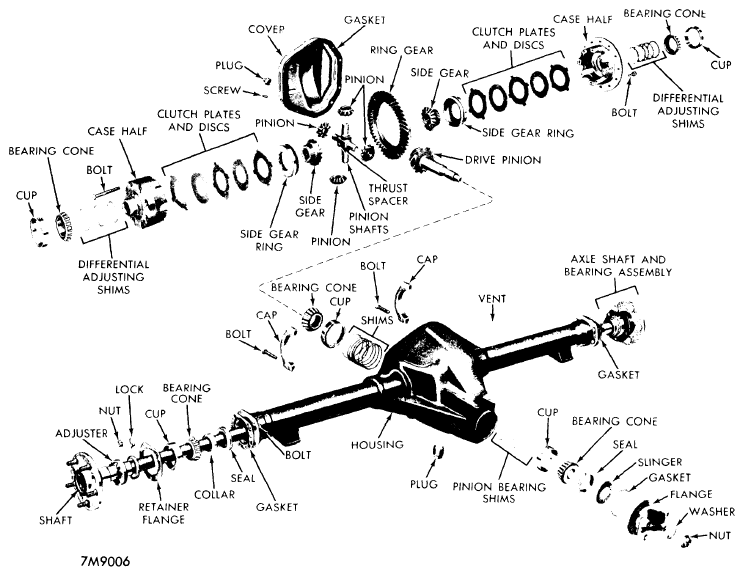

Fig 1: 9 1/4" & 9 3/4" REAR AXLE ASSEMBLY
G09324373Courtesy of CHRYSLER GROUP, LLC
