Removal Procedure
- Drain and properly dispose of the brake fluid in the master cylinder reservoir.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Disengage the retaining tabs.
- Battery Distribution Engine Compartment Fuse Block Cover (1) - Remove
Electrical Connector (1) - Disconnect
Battery Positive Cable Nut (1) - Remove [2x]
- Engine Wiring Harness Terminal Nut (2) - Remove
- Body Wiring Harness Terminal Nut (3) - Remove [4x]
- Battery Positive Cable (4) - Remove
- Engine Wiring Harness (5) - Remove
- Body Wiring Harness (6) - Remove
Battery Positive Post Clamp Nut (1) - Loosen
- Disengage the retaining tabs.
- Battery Distribution Engine Compartment Fuse Block (2) - Remove
Battery Hold Down Nut (1) - Remove
- Battery Hold Down Bolt (2) - Remove
- Battery Hold Down Retainer (3) - Remove
Battery Hold Down Bolt (1) - Remove
- Battery Hold Down Retainer (2) - Remove
Battery (1) - Remove
Intake Air Duct Retainer (1) - Remove [2x]
- Release the 2 retainer tabs (arrows) to remove the intake air duct.
Intake Air Duct (1) - Remove
Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Remove
Electrical Connector (1) - Disconnect
- Wiring Harness Retainer (2) - Remove
Air Cleaner Clamp (1) - Loosen
- Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Remove
Air Cleaner Assembly (1) - Remove
Battery Tray Bolt (1) - Remove [4x]
- Disconnect any harness retainers attached to the battery tray.
- Battery Tray (2) - Remove
Battery Tray Bracket Bolt (1) - Remove [2x]
- Battery Tray Bracket Nut (2) - Remove
- Disconnect any harness retainers attached to the battery tray bracket.
- Battery Tray Bracket (3) - Remove
Electrical Connector (1) @ Brake Fluid Level Sensor (2) - Disconnect
- Electrical Connector (2) @ Electronic Brake Control Module (2) - Disconnect
- NOTE:
Cap the brake pipe fittings to prevent brake fluid loss and contamination.
Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve - Remove [4x]

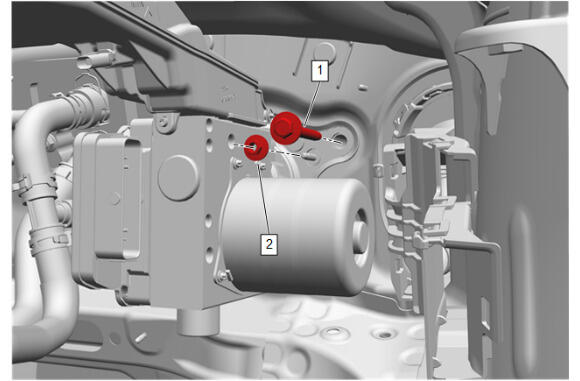

Brake and Accelerator Pedal Bracket Nut (1) - Remove [2x]
Instrument Panel Tie Bar Bolt (1) - Remove
- Brake Master Cylinder Bracket Nut (2) - Remove
Front Floor Console Rear Air Duct Retainer (1) - Remove
- Floor Front Air Outlet Duct - Left Side (2) - Remove
- NOTE:
Push the master cylinder because pulling the pedal too backward may damage the brake pedal position sensor.
Brake Pedal Push Rod (3) @ Brake Pedal (2) - Disconnect
Release the 2 retainer tabs and pull the brake pedal a bit to facilitate the removal.
- Brake Pedal Push Rod Retainer (1) @ Brake Pedal Push Rod (3) - Remove and DISCARD

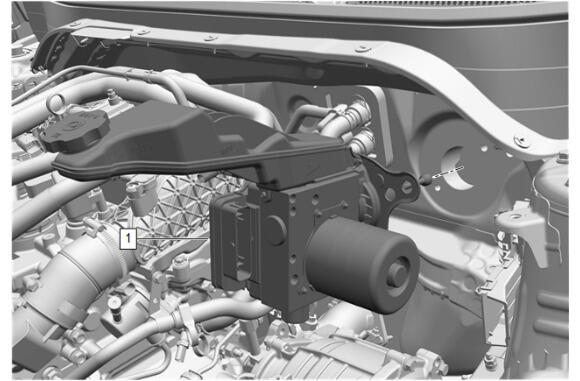

Brake Master Cylinder - (1) Remove
Electronic Brake Control Module Bolt (1) - Remove [4x]
- Electronic Brake Control Module (2) - Remove
