Liftgate Adjustment
- Liftgate Hinge Bolt - Loosen [4x]

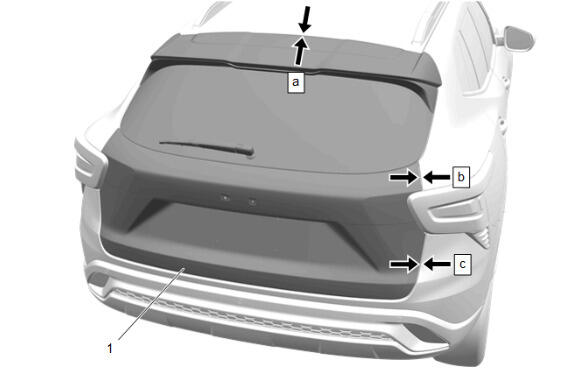

Adjust the liftgate in order to obtain an even gap between the liftgate and the roof, body side outer and rear bumper fascia.
- Liftgate (1) to roof (a) 5.5 mm ± 1.0 mm (0.21 in ± 0.04 in)
- Liftgate (1) to body side outer (b) 4.0 mm ±.1.0 mm (0.16 in ± 0.04 in)
- Liftgate (1) to rear bumper fascia (c) 4.5 mm ±.1.5 mm (0.18 in ± 0.06 in)
- Liftgate Hinge Bolt - Tighten [4x] - Fastener Specifications
- Adjust the liftgate bumpers as necessary.
CAUTION:
Refer to Fastener Caution .
