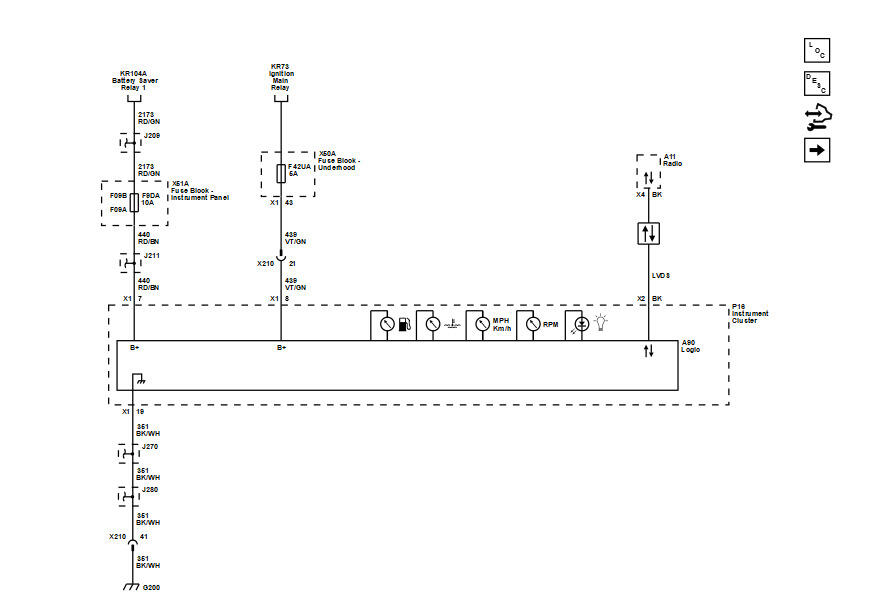

Home >> Chevrolet >> 2025 >> Trax LS >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Power, Ground, and Serial Data (UDC)
