Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Control Module (1) @ Radio Control (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Driver Information Display Screw (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

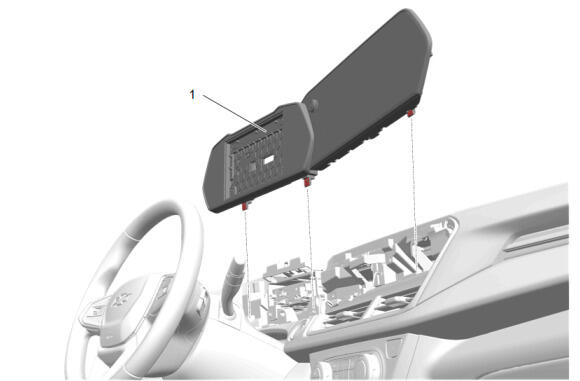

Driver Information Display (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Driver Information Display Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Bolt Cover - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Bolt Cover - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Instrument Cluster Hood (2) - Install
Instrument Panel Trim Plate Strap Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate (1) - Install
