Installation Procedure

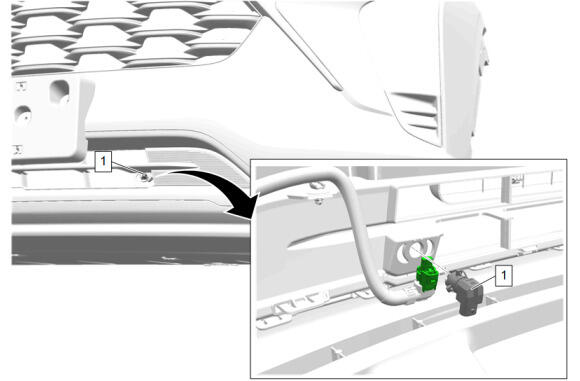

  1. GM5921121Courtesy of GENERAL MOTORS COMPANY

    Ambient Air Temperature Sensor (1) - Install

  2. Secure the retaining tabs.
  3. Connect the electrical connector. (1)
  4. GM5925325Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
