X905 Liftgate Wiring Harness to Body Wiring Harness

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

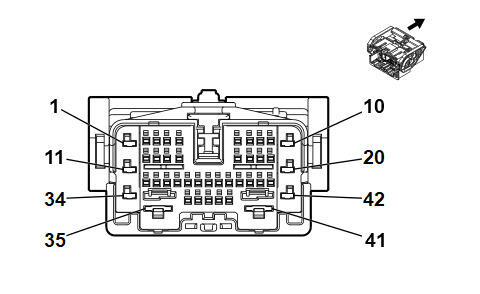

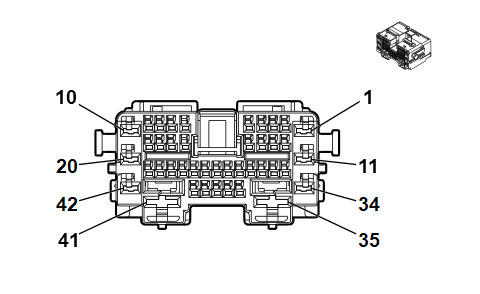

Connector Part Information Harness Type: Liftgate Wiring Harness OEM Connector: 7298-3060-30 Service Connector: Service by Harness - See Part Catalog Description: 42-Way F 1.2 OCS, 1.5, 2.8 YESC Series (BK)	Connector Part Information Harness Type: Body Wiring Harness OEM Connector: 7297-3071-30 Service Connector: 13534438 Description: 42-Way M 1.2 OCS, 1.5, 2.8 YESC Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-12 (BU)	No Tool Required
II	Not required	J-35616-16 (L-GN)	No Tool Required
III	Not required	J-35616-42 (RD)	No Tool Required
IV	Not required	J-35616-4A (PU)	No Tool Required
V	13580023	J-35616-43 (RD)	J-38125-11A
VI	19352075	J-35616-13 (BU)	J-38125-215A
VII	19369843	J-35616-13 (BU)	J-38125-215A
VIII	84888592	J-35616-5 (PU)	J-38125-11A

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	-	-	-	-	-	Not Occupied	1	-	-	-	-	-
2	0.75	BU / WH	6128	II	TB4	Rear Closure Unlatch Actuator Unlatch Control	2	0.75	BU / WH	6128	VI	TB4
3	0.35	BU / BK	4665	I	TB5	Rear Closure Latch Ratchet Status	3	0.35	BU / BK	4665	VI	TB5
4	0.35	GN	4657	I	TB5	Rear Closure Switch Signal	4	0.35	GN	4657	VI	TB5
5	0.35	GY / WH	4658	I	TB5	Rear Closure Switch LED Control	5	0.35	GY / WH	4658	VI	TB5
6	0.5	BU / YE	4679	II	TB5	Rear Closure Motor Release Control	6	0.5	BU / YE	4679	VI	TB5
7	0.35	GN / BK	4659	I	TB5	Rear Closure Open Switch Signal	7	0.35	GN / BK	4659	VI	TB5
8	0.35	GY	4668	I	TB5	Rear Closure Latch Pawl Status Signal	8	0.35	GY	4668	VI	TB5
9	0.35 0.35	YE / BU YE / BU	5797 5797	I I	TB4 TB5	Rear Closure Handle Switch Open Signal Rear Closure Handle Switch Open Signal	9	0.35 0.35	YE / BU YE / BU	5797 5797	VI VI	TB4 TB5
10	2.5	BK	4350	IV	-	Ground	10	2.5	BK	4350	VIII	-
11 - 12	-	-	-	-	-	Not Occupied	11 - 12	-	-	-	-	-
13	0.5	BK	5450	II	-	Ground	13	0.5	BK	5450	VI	-
14	0.5	BK / VT	4656	II	TB5	Rear Closure Object Sensor Low Reference	14	0.5	BK / VT	4656	VI	TB5
15	1	BU / GY	4682	II	TB5	Rear Closure Cinch Latch Motor Release Control	15	1	BU / GY	4682	VII	TB5
16	1	BN	4681	II	TB5	Rear Closure Cinch Latch Motor Cinch Control	16	1	BN	4681	VII	TB5
17	0.35	GY / VT	4678	I	TB5	Rear Closure Latch Unlatch Status	17	0.35	GY / VT	4678	VI	TB5
18	0.5	GN / YE	6846	II	-	Rear License Plate Lamp Control	18	0.5	GN / YE	6846	VI	-
19	0.35	VT / GY	1303	I	TB4	Liftgate Ajar Switch Signal 1	19	0.35	VT / GY	1303	VI	TB4
20	1	BU	393	IV		Rear Window Wiper Motor Control	20	1	BU	393	VIII
21	-	-	-	-	-	Not Occupied	21	-	-	-	-	-
22	0.5 0.5	VT / WH VT / WH	5065 5065	II II	U92 UUQ	Stop Lamp Relay Coil Control Stop Lamp Relay Coil Control	22	0.5	VT / WH	5065	VI
23 - 34	-	-	-	-	-	Not Occupied	23 - 34	-	-	-	-	-
35	2.5	BN / VT	293	III	-	Rear Defogger Grid Control	35	2.5	BN / VT	293	V	-
36 - 40	-	-	-	-	-	Not Occupied	36 - 40	-	-	-	-	-
41	3	BK	4350	III	-	Ground	41	2.5	BK	4350	V	-
42	1	RD / VT	4040	IV		Battery Positive Voltage	42	1	RD / VT	4040	VIII
