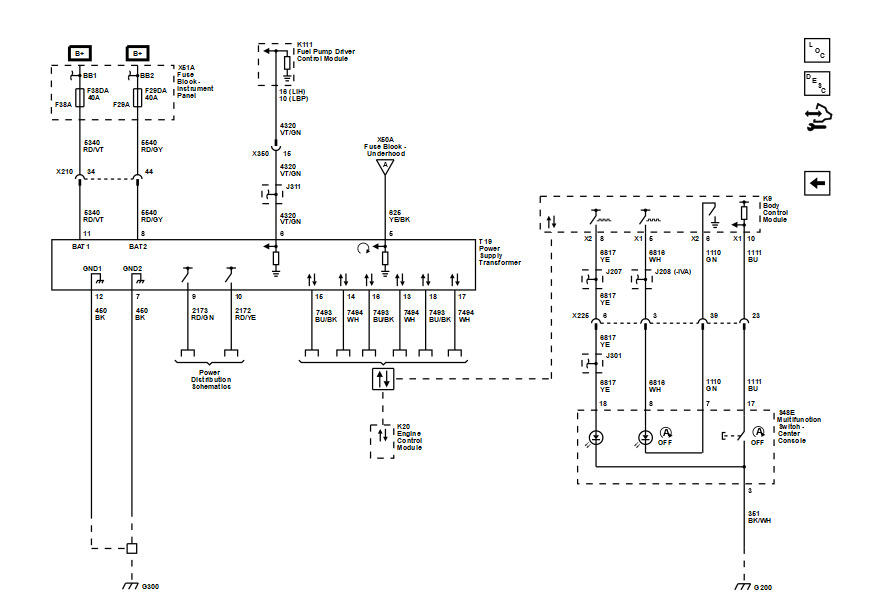

Home >> Chevrolet >> 2025 >> Trax ACTIV >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> 12V Battery, Starting And Charging - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Starting and Charging Wiring Schematics >> Stop/Start System (KL9)
