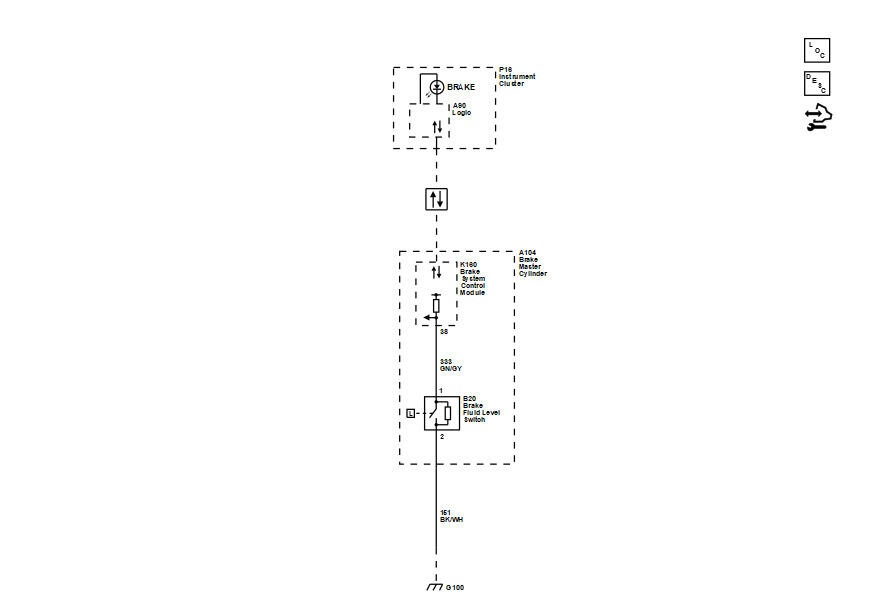

Home >> Chevrolet >> 2025 >> Trax ACTIV >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brakes
