Removal Procedure

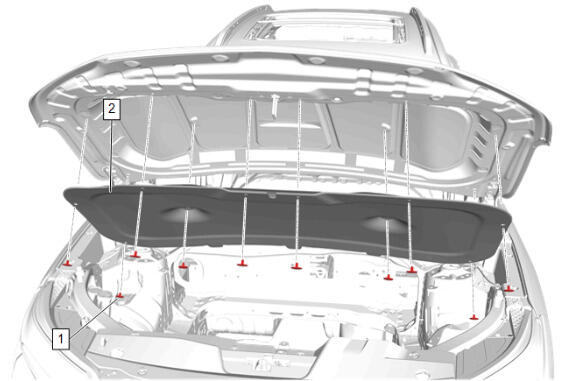

  1. GM5928659Courtesy of GENERAL MOTORS COMPANY

    Hood Insulator Retainer (1) - Remove [10x]

  2. Release the 3 integral tabs at the bottom of the hood insulator.
  3. Hood Insulator (2) - Remove
