Removal Procedure

  1. GM5925325Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation

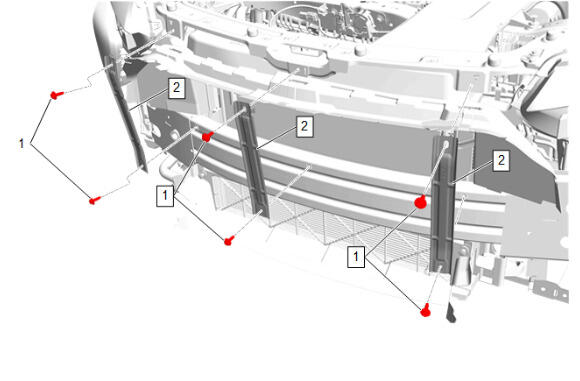

  2. GM5928570Courtesy of GENERAL MOTORS COMPANY

    Hood Front Bumper Bracket Support Bolt (1) - Remove [6x]

  3. Hood Front Bumper Bracket Support (2) - Remove [3x]
